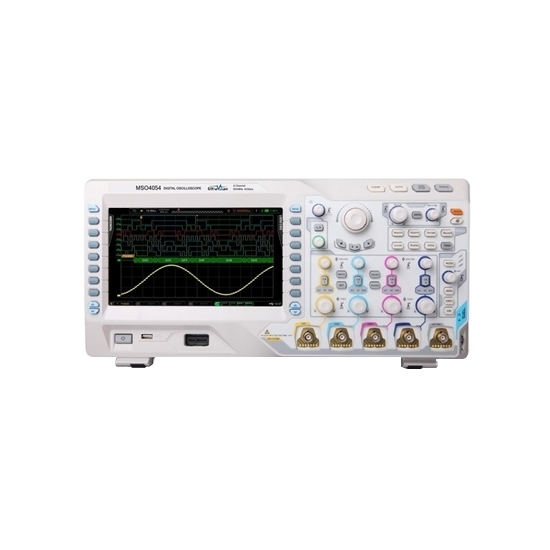

    200 MHz Digital Oscilloscope, 2/4 Channels, 4 GSa/s

    5 out of 5 based on 1 reviews | Write a review
    The offered oscilloscope is 200 MHz bandwidth, high performance Rigol DS/MSO4000 series digital oscilloscope with cheap price. It offers a variety of trigger functions and auto measurements, record, playback, analysis functions. Real-time sample rate up to 4 GSa/s, 2 or 4 analog channels selectable.
    SKU: ATO-SCOPE-200M4
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    200 MHz Digital Oscilloscope Features

    • 200 MHz bandwidth
    • With 2 or 4 analog channels, 16 digital channels for MSO models
    • Up to 4 GSa/s real-time sample rate, provides fine resolution and detail in high speed signals
    • 140 Mpts standard memory depth
    • Waveform capture rate up to 110,000 waveforms per second
    • Real-time waveform record, playback and analysis up to 200,000 frames
    • 9 inch WVGA (800×480), 256 level intensity grading display

    This best Rigol digital oscilloscope can be controlled and monitored remotely from a PC, via its USB, LAN or optional GPIB interfaces, is ideal for a wide variety of engineers working in communications, defense, aerospace and industrial electronics.

    Models and Key Specifications

    Brand Name RIGOL
    Model DS4022 DS4024
    MSO4022 MSO4024
    Number of Analog Channels 2 4
    Number of Digital Channels (For MSO Series) 16
    Bandwidth 200 MHz
    Max. Real-time Sample Rate Analog channel up to 4 GSa/s
    Digital channel up to 1 GSa/s (MSO Series)
    Max. Memory Depth Analog channel up to 140 Mpts
    Digital channel up to 28 Mpts (MSO Series)
    Max. Waveform Capture Rate up to 110,000 wfms/s
    Real-time, Hardware Waveform Recording, Playback, and Analysis Functions Analog channel up to 200,000 frames
    Digital channel up to 64,000 frames (MSO Series)
    Multi-level Intensity Grading Display up to 256 levels
    Standard probes 2 or 4 sets RP3500A 500 MHz BW Passive Probe
    1 sets RPL2316 LA Probe (MSO series only)
    Dimension Width x Height x Depth = 440 mm x 218 mm x 130 mm
    Weight 7 Kg (Package Included)
    Packing Included 1 x Digital Oscilloscope; 2 (4) x Probes; 1 x USB Cable; 1 x Power Cord; 1 x Quick Guide

    Rigol DS/MSO4000 Series Digital Oscilloscope Specs PDF

    Digital Oscilloscope Detail
    digital oscilloscope detailsTips: The advantages of a ATO digital oscilloscope

    1. Small size, light weight, easy to carry, and liquid crystal display.
    2. The waveform can be stored for a long time, and the stored waveform can be enlarged for various operations and analysis.
    3. It is particularly suitable for measuring single and low frequency signals, and there is no analog oscilloscope flicker when measuring low frequency signals.
    4. More trigger mode, besides the pre-trigger that the analog oscilloscope does not have, there are also logic triggering, pulse width trigger, etc.
    5. It can be connected with computer, printer and plotter through GPIB, RS232 and USB interface, and can print, archive and analyze documents.
    6. Powerful waveform processing power, can automatically measure frequency, rise time, pulse width and other parameters.
