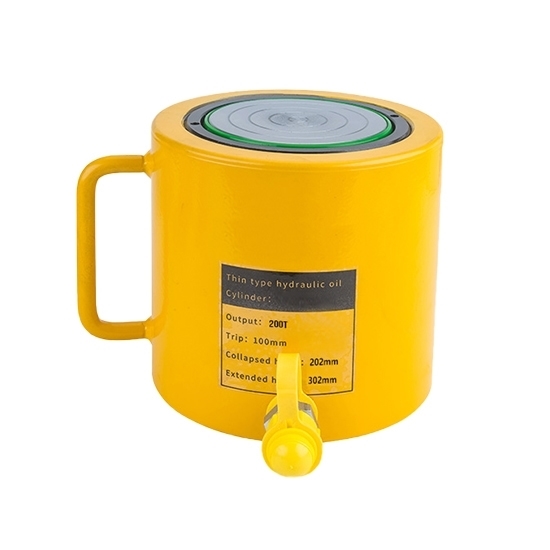

    200 ton Hydraulic Bottle Jack

    Get a 200 ton hydraulic bottle jack from for lifting heavy loads easily and safely. 100mm stroke, long life and big jacking force. Equipped with a 750W electric hydraulic pump, 200 ton bottle jack works more efficiently, widely used in power maintenance, bridge maintenance and heavy lifting.
    SKU: ATO-HBJ-200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Order a low-price hydraulic bottle jack for lifting objects efficiently and safely. 100mm stroke, greater working capacity, especially in the narrow space position. Portable 200 ton hydraulic bottle jack works with a 0.75W electric hydraulic pump more efficiently.


    • Hydraulic bottle jack with 200 ton capacity is designed for lifting heavy loads.
    • Blackening of the plunger surface to protect the using of the longevity of the product.
    • The plunger has the function of retracting automatically.
    • The joint of the hydraulic bottle jack adopts a threader ZG3/8" fast connector, thread locking, and compact structure.
    • 200 ton hydraulic jack is suitable for a variety of environments, commonly used in electric power, chemical industry, steel, machinery, industry and so on.


    Hydraulic Bottle Jack Model ATO-FCY-200100
    Tonnage 200 ton
    Self Height 202mm
    Stroke 100mm
    Outer Diameter 238mm
    Inner Diameter 160mm
    Weight 65kg
    Effective Area 302.5cm
    Matched Hydraulic Pump DYB-63A
    Matched Hydraulic Jack Pump Model ATO-DYB-63A
    Motor Power 0.75kW
    Working Voltage 220V
    High Pressure 70Mpa
    Low Pressure 7Mpa
    High Pressure Flow 0.9L/min
    Low Pressure Flow 5L/min
    Fuel Tank Capacity 7L (Customizable, Sold Without Oil)
    Motor Speed 1400r/min
    Weight 25.9kg


    Hydraulic jack details


    • This hydraulic jack is not recommended for cars.
    • In order to operate correctly all cylinders need to be connected to a solid lifting surface.
    • Cylinder damage can result from the use of cylinders on sandy, earthen or loose surfaces.Notes of hydraulic jacks


    At present, 10 to 200 ton hydraulic jacks are widely used in power maintenance, bridge maintenance, heavy lifting, static pile pressing, foundation settlement and bridge, especially in road and railway construction, mechanical adjustment, and equipment dismantling.

    Hydraulic jack applications

    Tips: Why can't hydraulic jacks work in high-temperature environments?

    Since the hydraulic jack is a lifting device that uses hydraulic oil, since it is an oil product, the operating temperature has certain requirements. The lifting and landing of the hydraulic jack are transmitted to the transmission system through the hydraulic oil, and then the lifting is completed. The oil body has certain requirements for the temperature. Generally, it is used at a temperature of about -10 to 40 degrees. Do not lower than this value, and do not higher than the highest value. According to the principle of thermal barrier and contraction, high temperature will cause the hydraulic oil components to expand and deform, and the hydraulic oil may leak and deteriorate due to tube explosion, thus losing the lubrication effect. The braking of the entire hydraulic jack system also has a certain impact.
