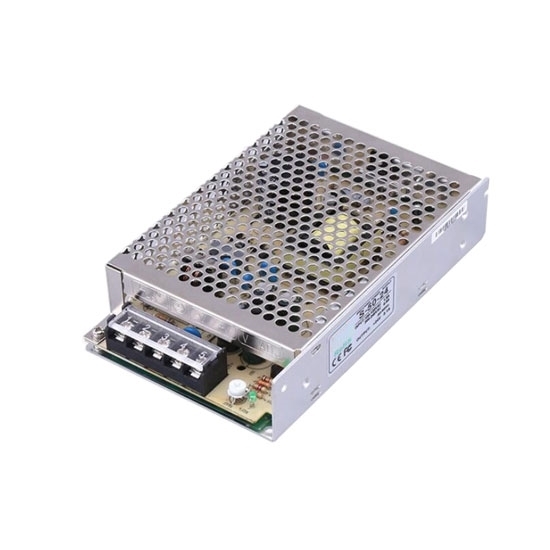

24V DC 2.1A 50W Switching Power Supply

5 out of 5 based on 1 reviews | Write a review
$54.15
24V DC 2.1A 50W switching power supply has universal AC input, with short circuit, overload and overvoltage protections, cooling by free air convection. Low price and high quality SMPS power supply suitable for light strips, computers, printers, monitoring system, etc.
SKU: ATO-SMPS-50-24
30-day Returns
Free Shipping
Delivery date: 6-12 days

Features

  • Universal AC input / Full range AC input
  • Short circuit, overload and overvoltage protections
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • High reliability, low price and wide range of applications

Specification

Model ATO-S-50-24
Output
DC Voltage 24V
Rated Current 2.1A
Current Range 0 ~ 2.1A
Rated Power 50.4W
Ripple & Noise (Max.)(Note 2) 100mVp-p
Voltage Adjust Range 22.6 ~ 26.4V
Voltage Tolerance (Note 3) ±1.0%
Line Regulation ±0.5%
Load Regulation ±0.5%
Setup, Rise, Holdup Time 200ms, 100ms, 30ms
Input Voltage Range 85 ~ 132VAC/170V~260VAC (selected by a switch) or 240 ~ 370V DC
Frequency Range 47~63Hz
Efficiency (Typ.) 82%
AC Current (Typ.) 1.3A/115V AC 0.65A/230V AC
Inrush Current (Typ.) Cold start: 18A/115V AC 36A/230V AC
Leakage Current <1mA/240V AC
Protection Overload 105~150% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed.
Environment Working Temperature -10 ~ +60℃
Working Humidity 20~90% RH non-condensing
Storage Temperature -20~+85℃
Storage Humidity 10~95% RH non-condensing
Temperature Coefficient ±0.03%/℃ (0~50℃)
Vibration 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Safety & EMC (Note 4) Safety Standards UL1012 Approved
Withstand Voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
EMC Emission Compliance to FCC Part 15 Jconduction Class B
Others MTBF ≥408.3K hrs MIN. MIL-HDBK-217F (25℃)
Dimension 159*97*38mm (L*W*H)
Weight 0.51kg
Note 1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance includes set up tolerance, line regulation and load regulation.
4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

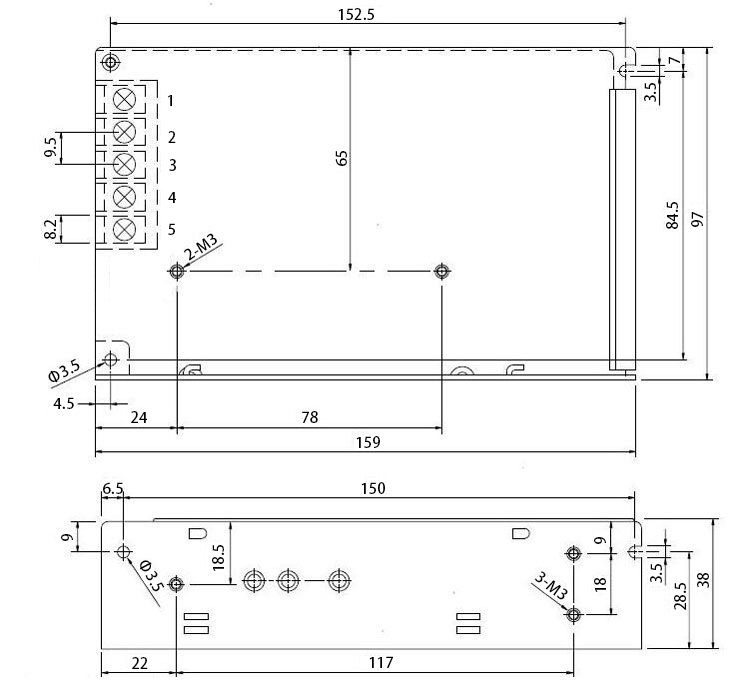

Dimension (Unit: mm)

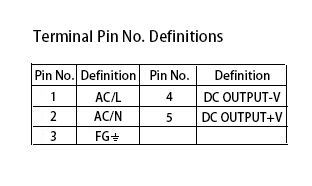

50W Switch-mode Power Supply DimensionSMPS Terminal Pin Number Definitions

Details

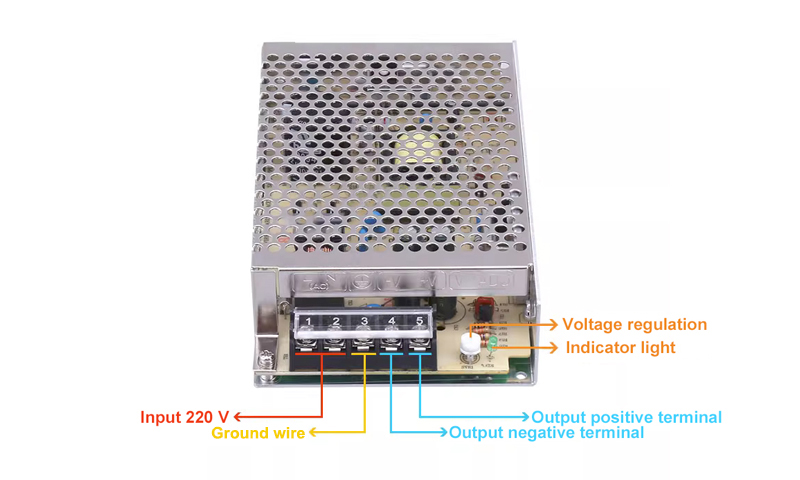

24V DC Switching Power Supply Details

SMPS Power Supply Applications

  • Power Tools
    Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
  • Offices Devices
    Computer, Printer, LCD Monitor, Scanning Machine, etc.
  • Electrics & Household Appliance
    TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
  • Industrial Equipemnt
    Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: Switching power supply development

The development of switching power supply is high-frequency, high reliability, low consumption, low noise, anti-interference and modularity. The performance of switching power supply in light weight, small size and thickness depends on its high frequency. Upgrading of secondary rectification devices and innovation of power ferrites have improved its magnetic performance in high frequency and field density conditions. In addition, miniaturization of capacitors also serves as a key technology. Extensive use of SMT technology accelerated development of switching power supply. To ensure outstanding performance of witching power supply in weight, size and thickness, electric components are laid out on both sides of the circuit. High frequency of switching power supply requires innovation of PWM. As a result, ZVS and ZCS have been applied to switching power supply as supporting technologies to improve its efficiency.

Existing reviews of 24V DC 2.1A 50W Switching Power Supply
Cool little switching power supply
After power test, the voltage is stable, I am running a 3D printer from it and it has no problems. The supply gets warm but not too hot. It uses passive cooling (no fan). Good terminal strip with cover, came with a minor bent corner but otherwise ok.
From: Turner | Date: 22/11/2018
Was this review helpful? Yes No (0/0)
