    2D Electronic Compass Module, 0°-360°, RS232/RS485/TTL/RS422

    $178.16
    Cost-effective 2D electronic compass module (single board) has a measurement range of 0° to 360° and high accuracy of ±1°. It supports multiple communication interfaces, including RS232, RS485, TTL, RS422 and Modbus (optional). The module has an operating temperature range of -40°C to +70°C, has good anti-magnetic interference ability, and is widely used in automation control, navigation positioning, robotics and other fields.
    *
    SKU: ATO-CPS-SCM220
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

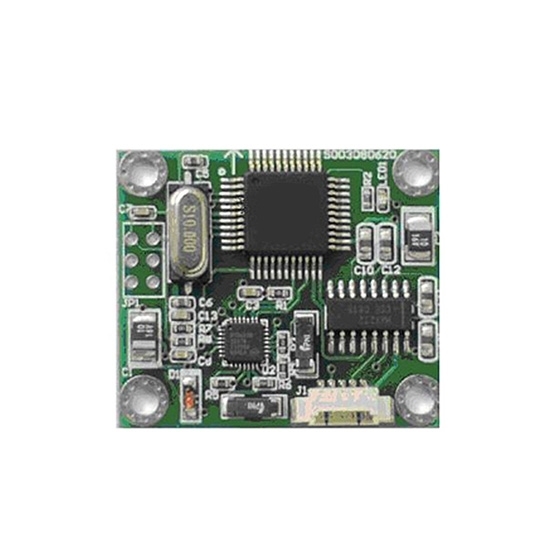

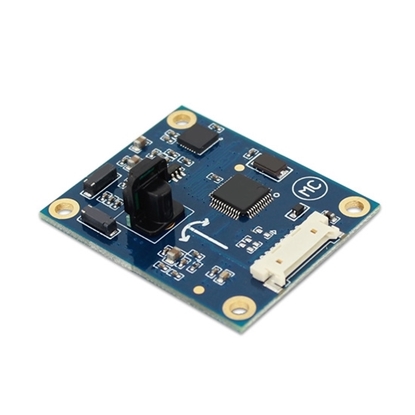

    The 2D electronic compass module (single board) uses advanced magnetic sensing technology to provide accurate heading measurement. The single board has a compact structure and is easy to integrate into embedded systems and devices.

    Features

    • It is a high-precision two-dimensional electronic compass module that measures azimuth 0~360° with high reliability.
    • 2D electronic compass module uses an industrial-grade single-chip microcomputer with strong anti-interference ability and a high-precision magnetic sensor and driver chip, integrating hard magnetic and soft magnetic interference compensation technology. The electronic compass function can be easily and quickly integrated into various products.
    • The compass module is small in size and low in power consumption. It can be used in many fields such as antenna stability, vehicles, system integration, etc. High seismic resistance and high reliability also enable the compass to work normally in extremely harsh environments.

    Specification

    Model ATO-SCM220
    Range 0-360°
    Accuracy
    Working voltage DC +5V
    Working temperature -40~+70℃
    Working current 40mA
    Volume 33*27*8mm (customizable)
    Output RS232/RS485/TTL/RS422/Modbus (optional)
    Performance Indicators
    Compass heading parameters Heading accuracy
    Resolution 0.1°
    Repeatability 0.3°
    Heading angle Navigation tilt angle range +/-5°
    Heading angle measurement range 0~360°
    Calibration Hard iron calibration
    Soft iron calibration
    Magnetic field interference calibration one rotation of the plane (two-dimensional calibration)
    Physical characteristics Dimensions L33xW27xH8 (mm)
    Weight 5g
    RS-232/RS485 interface connector 5-pin
    Interface characteristics Startup delay <50ms
    Maximum sampling rate 50 times/second
    RS-232 communication rate 2400~19200 baud rate
    RS-485 communication Optional
    TTL communication Optional
    Output format Hexadecimal
    Power supply Supported voltage DC+5V
    Current (maximum) 40mA
    Operating mode 30mA
    Environment Storage range -40℃~+125℃
    Operating temperature -40℃~+70℃
    Vibration resistance 2500g

    Note: The default horizontal installation (when the compass is placed horizontally, the roll and pitch angle outputs are zero degrees), and the connector needs to be installed vertically downward (when the compass is placed vertically downward, the roll and pitch angle outputs are zero degrees). Please specify when ordering.

    Dimension (mm)

    2d electronic compass module dimension

    Electrical Connection

    • RS232 Wiring Definition
    Line Color Function RED WHITE BLACK GREEN YELLOW
    1 2 3 4 5
    VCC NC GND RXD TXD

    2d electronic compass sensor rs232-wiring

    • RS485 and Modbus Wiring Definition
    Line Color Function RED WHITE BLACK GREEN YELLOW
    1 2 3 4 5
    VCC NC GND (B, D+) (A, D+)
    • TTL Wiring Definition
    Line Color Function RED WHITE BLACK GREEN YELLOW
    1 2 3 4 5
    VCC NC GND RXD TXD

    2d electronic compass sensor ttl wiring

    • RS422 Wiring Definition
    Line Color Function RED BLACK GREEN YELLOW WHITE BROWN
    1 2 3 4 5 6
    VCC GND RXD- (B-) RXD+ (A+) TXD+ (A+) TXD- (B-)


    Applications

    2d electronic compass application

    Installation

    2d electronic compass module installations

    Tips: Precautions for installing 2D electronic compass module

    Although the SCM220 electronic compass module can compensate for magnetic interference, users should choose an environment with minimal magnetic interference for installation and use. It is recommended to install 2D electronic compass module away from iron, nickel, magnets, engines, and other magnetic materials. If these magnetic sources are present nearby, maintain a minimum distance of 0.5 meters. To ensure optimal measurement accuracy, use non-magnetic screwdrivers and non-ferrous screws during installation. Strong magnetic materials (such as magnets and electric motors) should be kept at least 10 cm away from the compass, as closer proximity may cause irreversible degradation of measurement accuracy.

    Each electronic compass module comes with a 10 cm cable, with an optional length depending on user needs. While 2D electronic compass module can compensate for magnetic deviation in a stable magnetic environment, it cannot compensate for changing magnetic interference. For example, wires carrying DC current generate a magnetic field, and if the current changes, the magnetic field strength will vary accordingly. Batteries are another potential source of changing interference. Since each installation environment will have a different magnetic field, users must evaluate the feasibility of installation in their specific environment.

    The compass module has a heading accuracy of 1°, which has been rigorously verified. Proper scientific testing methods are equally crucial. Our recommended testing method is to mount it on a vertical aluminum (or other non-magnetic material) rod for heading accuracy measurement. Ensure the rod is perpendicular to the rotating platform, and minimize the influence of large external magnetic fields during the test.
