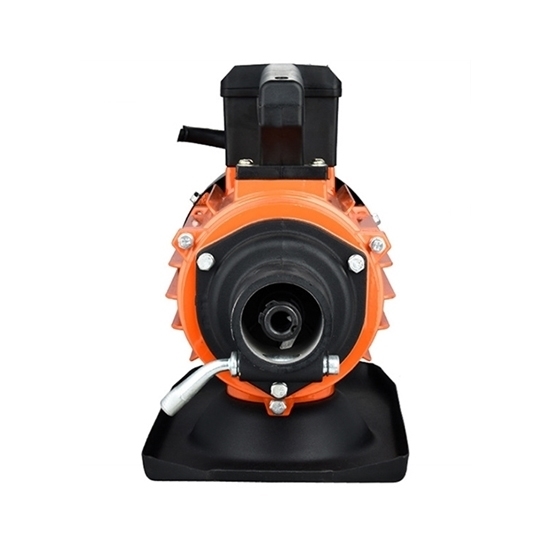

    2 hp (1.5kW) Electric Concrete Vibrator Motor, 220V/380V, 2840rpm

    $522.92
    Best sale two or three phase electric concrete vibrator motor, 2hp, AC 220V/380V, 50Hz frequency, 6 pole. Electric concrete vibrator motor offers small fever, low noise and long span lifetime.
    SKU: ATO-CVM-1.5kW
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Electric concrete vibrator motor with high frequency has factory price and good quality, features 1500W power, 220 or 380 voltage, 2840VPM working speed,  light weight, applies widely to the bridge, large-scale dam construction.

    1.5kW Internal Concrete Vibrator Motor



    Model ATO-ZN-70M ATO-ZN-70
    Phase 2 Phase 3 Phase
    Voltage 220V 380V
    Power 1.5kW
    Speed 2840rpm
    Number of pole 6 Pole
    Size 320 * 180 * 280mm
    Weight 13.5 kg
    Type Internal
    Warranty One year for machinery
    Application Construction industry
    Drive Mode Electric vibrator
    Certification CCC
    Installation Method Make sure the voltage and frequency supply match the ones indicated on the rating plate of the electric vibrator. Insert the power cable through the cable gland.

                                                     Internal concrete vibratorDetail of Internal Concrete Vibrator Motor

    Tips: How to Choose a Concrete Vibrator Motor?

    1. The general principle of selecting concrete vibration is determined according to the concrete construction technology. According to the composition characteristics of the concrete and the construction conditions, the appropriate structure type and reasonable working parameters are selected to select the vibrator.
    2. Choice of power form: Electric vibrators are commonly used in construction. When the construction site has only single-phase power, single-phase series-excited motor vibrators should be used; when there are three-phase power supplies, various electric vibrators can be selected.
    3. Reasonable choice of structural form: large-area concrete foundation columns, beams, walls, thick slabs, and prefabricated components can be tamped with internal concrete vibrator; structures with dense steel bars or thin concrete, and where internal concrete vibrators are not suitable, an attached vibrator can be used; for large and flat structures, such as the ground, roof, road surface, etc., a flat-plate vibrator is usually used. For the hollow slabs, slabs and beam-column components with small thickness produced by the reinforced concrete prefabricated component factory, the vibrating table can be used to obtain fast and effective tamping results.
    4. The choice of internal concrete vibrator: The vibration frequency of the vibrator is an important factor affecting the tamping effect. Only when the vibration frequency of the vibrator is the same or similar to the natural frequency of the concrete particles can the best tamping effect be achieved.
