    300 kVA Isolation Transformer, 3 phase, 480V to 400V

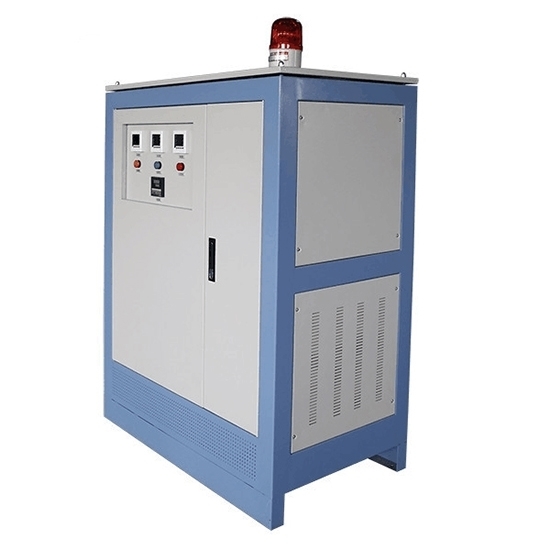

    300 kVA isolation transformer is a 3 phase unit with a primary voltage of 480V and secondary voltage of 400V, it's a safe isolating transformer not only provides an increased level of protection against electric shock, but also used to step down voltage of equipment.
    Delivery date: 10-20 days

    Three phase 300 kVA isolation transformer offers consistent, smooth voltage transformation at 480V AC input, 480V to 400V version or 400V to 480V is available, and other voltages can be customized.

    Generally, isolation transformers with power above 150KVA will be equipped with an alarm, which is used to detect the temperature of the transformer. When the temperature of the transformer rises to 150 degrees, the alarm will be triggered. At this time, the transformer needs to be manually suspended or stopped. Wait until the transformer temperature returns to normal, then continue to use.

    300 kVA Isolation Transformer Specifications

    Basics Model ATOSG-200KVA
    Phase 3 phase
    Capacity 300 kVA
    Weight of Aluminium Wire Transformer Open type: 740kg
    Protected type: 890kg
    Weight of Copper Wire Transformer Open type: 930kg
    Protected type: 1005kg
    Technical Parameters Primary Voltage 480V (Optional: 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
    Secondary Voltage 400V (Optional: 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
    Frequency 50Hz / 60 Hz
    Winding Material Aluminium/Copper wire (Optional)
    Work Efficiency ≥95%
    Insulation Resistance ≥50 MΩ
    Electrical Strength 3000V AC/1 min
    Noise <35-65dB (1 meter)
    Insulation Grade H level
    Wiring Mode Dyn11
    Cooling Mode Dry type air cooling
    Overload Capacity Allow more than 1.2 times rated load to work for up to 4 hours
    Enclosure Protection Grade IP 22
    Certificate CE, ISO
    Warranty 12 months
    Working Environment Temperature -15℃~+40℃
    Humidity ≤90%RH, without condensation
    Altitude <1000m, non corrosive gas and conductive dust

    Transformer can only convert voltage and CANNOT convert frequency.
    Transformer CANNOT convert single phase voltage to 3 phase voltage.
    Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

    3 Phase Isolation Transformer Schematic Diagram

    ATO isolation transformers schematic diagram

    300 kVA Isolation Transformer Installation Dimension

    150kVA 800kVA isolation transformer dimension

    Aluminium Wire Transformer Size Copper Wire Transformer Size
    Open type: a*b*c=1060**450*955mm Open type: a*b*c=990**410*855mm
    Mouting size: d*e=600*400mm Mouting size: d*e=600*400mm
    Protected type: A*B*C=1300*750*1600mm Protected type: A*B*C=1300*750*1600mm

    Tips: Using isolation transformer to reduce the zero voltage of UPS

    For medium and small power UPS, generally, an isolation transformer is installed at its output part; for a three-in to three-out high-power UPS, the transformer is usually at its bypass input. This method can eliminate the problem that zero voltage is low before the UPS powering on while zero voltage rises after UPS turning on. The UPS power system makes no negative impact on the power grid and load through this method.
