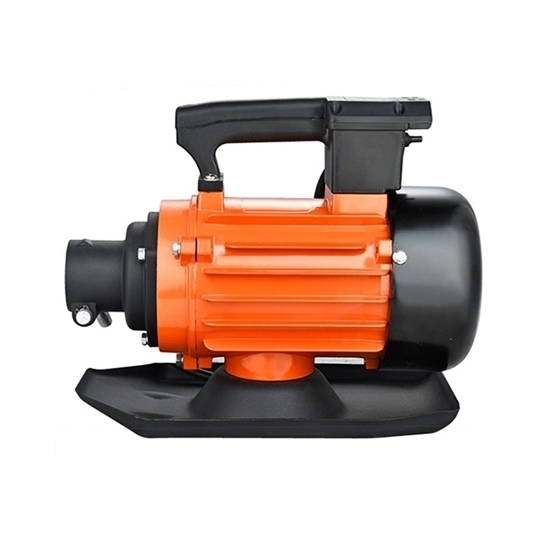

    4hp (3kW) Concrete Vibrator Motor, 380V, 2840rpm, 3 Phase

    $600.15
    High quality 3000W internal concrete vibrator for sale, 3 phase, 6 pole, 380V, with strong power and can withstand high speed for a long time. Free shipping and factory direct sales.
    SKU: ATO-CVM-3kW
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Three phase 380V internal concrete vibrator motor, 6 pole, rated speed 2840rpm, high quality and safety guarantee. Cheap price, manufacturer direct sales and use for construction.

    3kW Internal Concrete Vibrator Motor

    Model ATO-ZN-100
    Power 4hp (3kW)
    Phase 3 phase
    Voltage 380V
    Speed 2840rpm
    Number of Pole 6 Pole
    Size 320 * 180 * 280mm
    Weight 16kg
    Type Internal
    Warranty One year for machinery
    Application Construction industry
    Drive Mode Electric vibrator
    Certification CCC
    Installation Method Make sure the voltage and frequency supply match the ones indicated on the rating plate of the electric vibrator. Insert the power cable through the cable gland.

    Detail of Internal Conrete Vibrator Motor

                                                           Internal concrete vibration

    Tips: How to maintain and repair the internal concrete vibrator motor?

    1. After the vibrator is used, the outer surface of the vibration must be carefully cleaned to ensure good heat dissipation during the next operation of the motor.
    2. The sealing and insulation of the motor should be checked frequently. If the vibration is found to be damp, it must be dried.
    3. Check whether the power line and switch connector are firm and safe.
    4. The bearing on the motor should be cleaned regularly and replaced with grease.
    5. Check the damage of other parts regularly, and repair in time if found.
    6. If the insulation resistance is above 2mq, the stator should be dried.
    7. The grounding wire is firm and reliable and must be checked regularly. Before using the power supply, there should be leakage protection switch, which must be tested regularly.
    8. In case of vibration and electrical fault, a full-time electrician must repair it.
