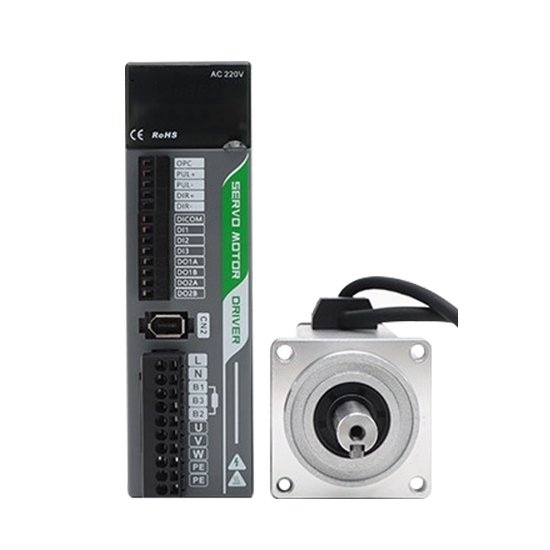

50W AC Servo Motor with Drive, 0.16 Nm, 3000 rpm

5 out of 5 based on 2 reviews | Write a review

$270.08

50W AC servo motor with drive offers 220V input, 3000 rpm rated speed, 0.16 Nm rated torque, and 17-bit incremental encoder for precise motion control. Equipped with DSP digital control, triple-loop control mode, low noise operation, and anti-resonance performance, this compact IP65 servo motor delivers smooth, stable, and high-efficiency operation for CNC machines, robotics, and automation equipment.

Type *

Pulse Type
RS485 Type

SKU: ATO-SERVO-40S50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Designed for precision motion control, this AC servo motor kit delivers fast response, stable operation, and smooth low-speed performance without vibration or resonance. Featuring advanced DSP control technology, low-noise operation, and high-efficiency silicon steel construction, it is ideal for packaging equipment, and industrial automation systems.

Specification

Model	ATO-LCMT-005SLC17-40M00130B
Rated Power	50 W
Rated Line Voltage	220 V
Rated Line Current	0.8 A
Rated Speed	3000 rpm
Rated Torque	0.16 N·m
Peak Torque	0.48 N·m
Back EMF Constant	19 V/1000 rpm
Torque Constant	0.2 N·m/A
Rotor Inertia	0.035 × 10^-4 kg·m²
Winding Resistance (Line-to-Line)	19.7 Ω
Winding Inductance (Line-to-Line)	41 mH
Electrical Time Constant	2 ms
Encoder Resolution	17-bit Incremental
Insulation Class	Class F
Protection Class	IP65
Weight	0.6 kg

Feature

50W AC servo motor with drive adopts advanced DSP digital control technology for accurate positioning, fast response, and stable operation without step loss.
High-quality silicon steel core provides strong magnetic conductivity, low coercivity, and improved energy efficiency.
The AC servo motor kit uses a triple-loop control system with position, speed, and current control for smooth and precise motion performance.
Advanced noise reduction design enables low-noise operation for quieter working environments.
ATO AC brushless servo motor with drive provides stable low-speed operation without vibration or resonance, improving motion accuracy and system reliability.
Supports pulse + direction and dual-pulse input modes with pulse feedback output for flexible control applications.
50W AC servo motor kit features built-in 16-position and 16-speed internal control functions for easier automation integration.
Compact IP65-rated servo motor is suitable for CNC machines, robotics, packaging machinery, and industrial automation equipment.

Detail

Servo Motor

50W AC Servo Motor Detail

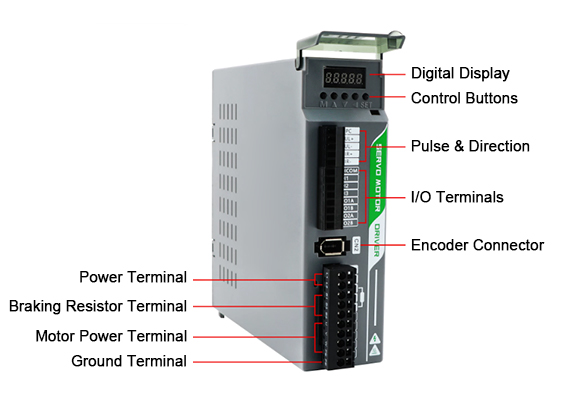

Servo Drive

Size (unit: mm)

Servo Motor

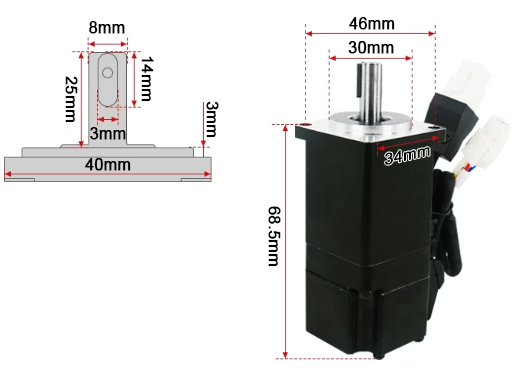

50W AC servo motor size

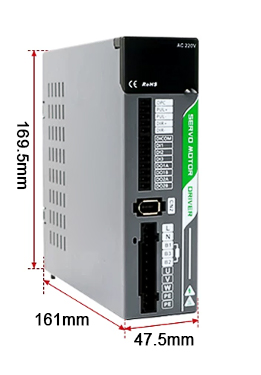

Servo Drive

Package Includes

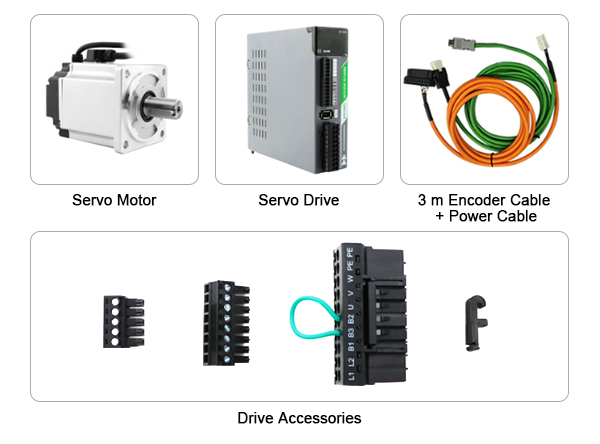

50W AC servo motor package

Tips: What is the difference between Pulse Type and RS485 Type 50W AC servo motor with drive?

Pulse Type 50W AC servo motor with drive is widely used in CNC machines, PLC control systems, and motion controllers that rely on pulse + direction or dual-pulse signals. It offers fast response, simple wiring, high positioning accuracy, and is ideal for single-axis or high-speed point-to-point motion applications. RS485 Type 50W AC servo motor with drive uses serial communication control, making it more suitable for industrial automation systems, multi-axis control, and networked equipment. It supports parameter setting, command communication, and centralized control, providing better scalability, stability, and integration for complex automation projects.

This video briefly shows the application of the ATO servo system in a linear slide.

ATO servo motor has 40mm to 180mm different square flange size, power rating from 50W to 7.5kW and speed range from 1000 rpm to 3000 rpm. so you can select the best one for your applications. In this video, ATO will show you servo motor linear actuator system for robotics.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

How to unlock the servo drive timing lock?

In this video, the process of unlocking the servo drive timing lock is demonstrated.

How to Connect the Servo Motor Controller and Set the JOG Mode?

The video shows the basic connection of the ATO servo motor kit and how to initialize the servo drive and how to set the JOG mode.

How to Use the Position Control Method of the Servo Motor(through PLC Pulse Control)?

The video introduces the connection and control (position control method) between PLC and ATO servo motor system.

Existing reviews of 50W AC Servo Motor with Drive, 0.16 Nm, 3000 rpm

Perfect servo motor

The appearance of the AC servo motor is clean and beautiful, the workmanship is very good, and no flaws are found. The size is also very suitable, I have been looking for this one for a long time, I love it!

From: Ranjeet | Date: 11/05/2022

Was this review helpful? Yes No (0/0)

Two questions about 50W servo motor

1. Can one drive control two 50W servo motors?
2. And does your 50W servo motor box incorporate cables?

From: Josephc | Date: 24/11/2021

Was this review helpful? Yes No (0/0)

ATO Responded

1. A servo drive can only drive one 50W servo motor.
2. Yes, we provide cables along with a 50W servo motor.
