    7.5 kW CNC ATC Spindle, 24000 rpm

    5 out of 5 based on 3 reviews | Write a review
    $2,898.15
    cheap 7500 watt BT30 ATC spindle, works at three phase 380V AC 800Hz, 24000rpm speed, water cooling method, low noise and high precision automatic tool changer spindle motor, work efficiency can be improved, widely used in CNC router drilling and milling equipment.
    SKU: ATO-SPINDLE-ATC7500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price 7500W water cooled BT30 ATC spindle motor for sale online, 3 phase 380V AC at 800 Hz frequency, 24000rpm speed, low noise and high precision, suitable for CNC router machine.

    Features

    • Reasonable structure design, simple and compact configuration, easy to take apart.
    • High precision, inflexibility and efficiency, long operation life.
    • With high grade size, shape, position precision, and quality of the surface.
    • Enough abrasive resistance, vibration resistance, suitable size.
    • Work stable, low noise, enough fatigue strength.

    Specifications

    Model ATO-STL125-24Z-7.5
    Power 7500 W
    Speed 24000 rpm
    Voltage 380 V
    Current 14.3 A
    Frequency 800 Hz
    Tool interface BT30
    Numbers of Poles 4
    Automation Grade Automatic
    Type of Cooling Water cooling
    Type of Insulation F
    Protection class IP54
    Weight 27 KG

    Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

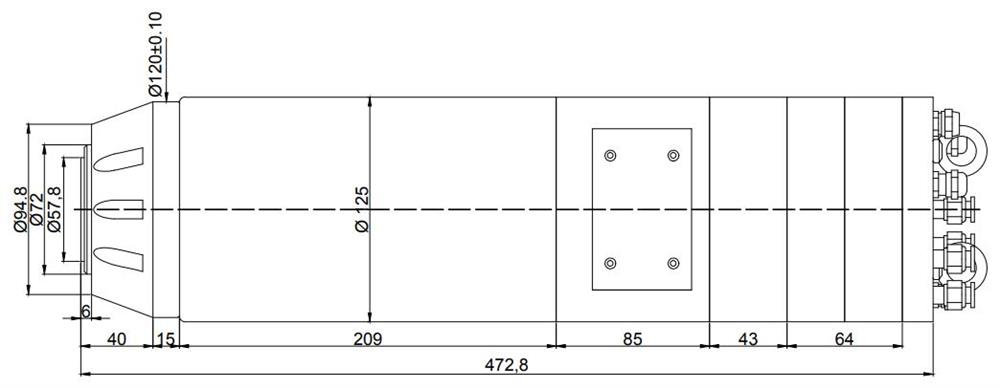

    Dimension (Unit: mm)

    7500W ATC Spindle Dimension

    Tips: 2 Cooling Methods Of ATC Spindle

    It is necessary to cool and dissipate the automatic tool change electric spindle, especially when it enters hot weather. If you find that the electro-spindle is overheated during the application process, you must take heat dissipation measures. Don't let the electro-spindle run under overheating, which will affect the service life.

    Water cooled:

    It refers to the design of cooling water circulation inside the automatic tool change electric spindle. Equipped with a corresponding cooler outside, so that the cooling liquid circulates inside the main shaft to take away the internal heat. The advantages of this cooling method are simple and reliable, and the cooling effect is more obvious.

    Air cooled:

    It refers to the design of a forced convection channel between the housing of the electric spindle and the stator of the motor. The heat of the motor enters the forced convection area through heat conduction, and finally brings the heat into the air to realize the constant temperature operation of the electric spindle. Air cooling is non-polluting. If a static pressure gas bearing is used, the gas of the static pressure gas bearing can be used to circulate inside the spindle to take away part of the heat of the motor.

    Existing reviews of 7.5 kW CNC ATC Spindle, 24000 rpm
    Great spindle motor
    This ATC spindle motor works great with my VFD, the collet set and clips are nice. Great value for money, would recommend it.
    From: Albin | Date: 22/04/2022
    Was this review helpful? Yes No (0/0)
    Low noise CNC ATC spindle
    7.5kW automatic tool changer spindle works fine on my CNC router. The wiring diagram when I bought it was not very clear, the seller quickly helped me solve the problem. Its low noise is as described. I've cut a lot of material with it so far.
    From: Sarah | Date: 22/04/2022
    Was this review helpful? Yes No (0/0)
    High quality 7.5kW CNC ATC spindle
    The value of this 7.5kW CNC ATC spindle is very high. It is cheaper than the ATC spindle I bought before, and it is also easier to use than the one I bought before. I like using it very much and I recommend buying it.
    From: Charbyola | Date: 29/11/2021
    Was this review helpful? Yes No (0/0)
    Load more reviews...
