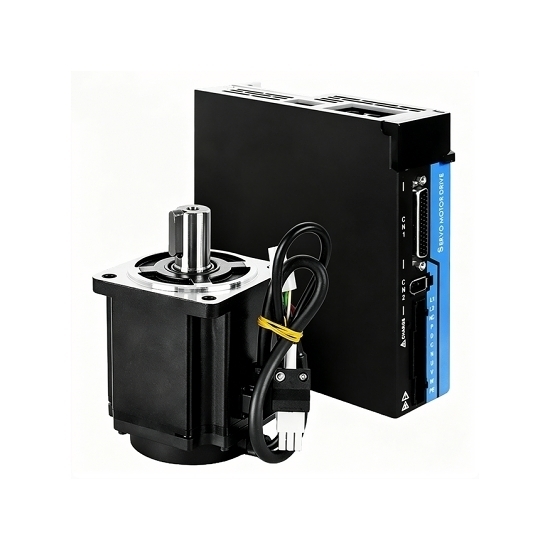

750W AC Servo Motor with Driver, 2.39 Nm, 3000 rpm

High precision servo motors for sale. ATO 750W AC servo motor with driver ensures precise control. Pure copper windings save energy and improve efficiency. Dual-chip driver delivers fast response and stable operation. Intelligent cooling supports long-term continuous use. RS485 communication enables easy PLC and system integration. Upgrade your automation performance with this 750W AC servo motor kit.

Specifications

Features

1. High Precision Control System: This AC Servo Motor with Driver is equipped with a dual-chip Servo Motor driver, supporting hybrid control modes of position, speed and torque. It features fast response and stable control, perfectly meeting various industrial automation needs.
2. Powerful Power Output: The 750W AC Servo Motor delivers a rated speed of 3000rpm, with a maximum speed of up to 6000rpm and a peak torque of 7.17N·m, which balances high speed and high load capacity effectively.
3. Pure Copper Core Motor Design: The AC Servo Motor adopts pure copper windings and an enlarged turbine, which improves conductivity, reduces energy consumption, and enhances power performance and operational stability. With 750W high-power output, it provides sufficient power, high speed and large torque for more robust and durable operation.
4. Dual-Chip High-Performance Driver: The matched Servo Motor driver adopts a built-in dual-chip control architecture, which improves operation speed and control precision, and achieves a smoother servo control experience for the AC Servo Motor with Driver.
5. Intelligent Heat Dissipation System: The supporting Servo Motor driver is equipped with an intelligent cooling fan to effectively reduce temperature rise. Adopting F-class high-temperature resistant insulation design, the AC Servo Motor with Driver can run continuously and stably for 10,000 hours, with strong adaptability to industrial working conditions.
6. RS485 Communication Interface: This AC Servo Motor with Driver is equipped with an RS485 communication interface, supporting industrial communication protocols. It is convenient to connect to PLC and host computer systems, with simple wiring, wide equipment compatibility and improved system integration efficiency.

Details

1. Pure Copper Motor: Built with a high-performance copper winding design, this AC servo motor delivers increased torque, faster speed, and greater efficiency.
2. High-Efficiency Servo Driver: Supporting position, speed, and torque control modes, the servo motor driver enables flexible and precise motion control.
3. Intelligent Cooling Fan: Automatically adjusts fan speed according to temperature, ensuring effective heat dissipation, preventing overheating, and extending motor service life.

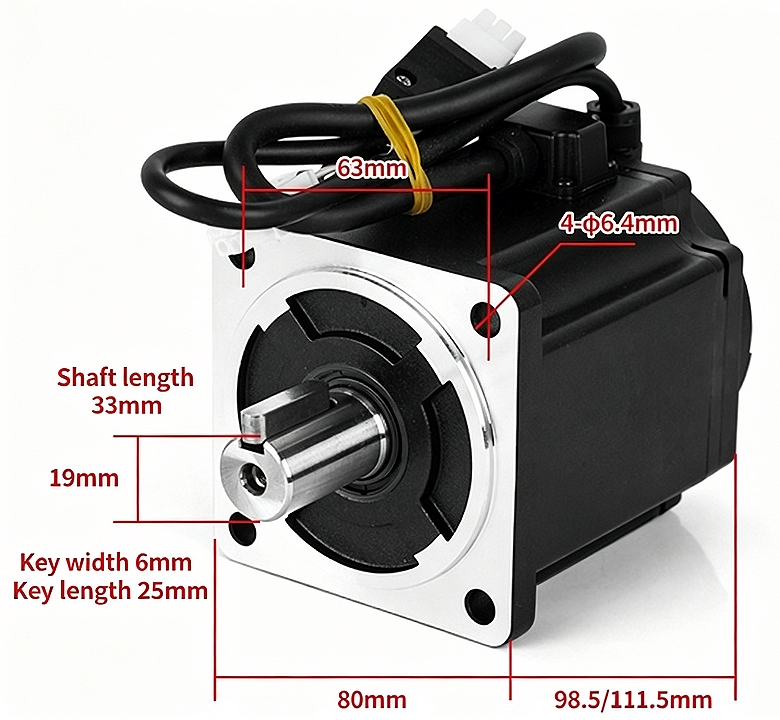

Dimension (unit: mm)

AC Servo Motor

Servo Motor Driver

Wiring

Package Includes

Applications

This 750W AC servo motor with driver delivers reliable and precise performance, widely applicable to 3D printers, CNC machines, cutting devices, laser equipment, automated machinery and electronic facilities.

Tips: What makes pure copper winding superior in AC servo motors?

Pure copper winding in AC servo motors means less energy is wasted as heat, so the motor runs cooler, lasts longer, and delivers more power without needing a bigger size. It handles higher peak loads and frequent start-stop cycles better than aluminum, giving you reliable performance and fewer breakdowns over time. Simply put, pure copper winding is why a servo motor feels more responsive, stays tougher under heavy use, and keeps working reliably for years.
