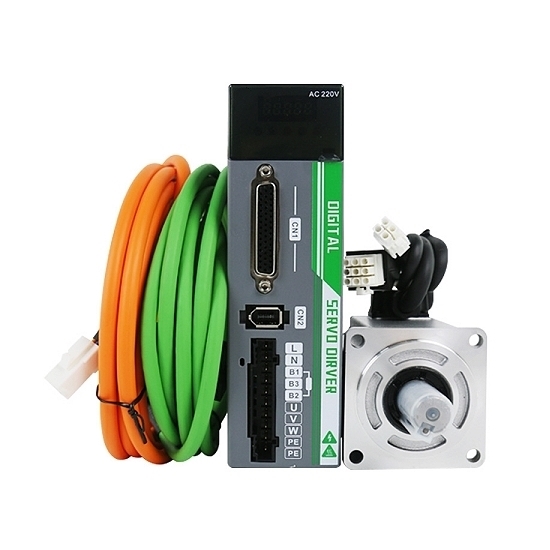

    750W AC Servo Motor with Drive, 2.39 Nm, 3000 rpm
    750w ac servo motor
    750w ac servo motor
    750w ac servo motor

    750W AC Servo Motor with Drive, 2.39 Nm, 3000 rpm

    5 out of 5 based on 4 reviews | Write a review
    $326.92
    750W AC servo motor with drive adopts silicon steel hull and DSP digital crip. Rated at 3000 rpm and 2.39 N.m torque, it provides fast response and high load capacity. Ideal for 3D printers, CNC machine tools and automated equipment. Buy this high precision servo motor kit today to enhance your system efficiency and precision.
    *
    *
    *
    SKU: ATO-SERVO-80S750
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High precision servo motors for sale. ATO 750W AC servo motor with drive ensures precise control. DSP chip drive delivers fast response and stable operation. Upgrade your automation performance with this 750W AC servo motor with drive.

    Specifications

    Servo Motor
    Model ATO-LCMT-07SLC17-80M02430B
    Rated Power 750 W
    Rated Voltage 220 V
    Rated Current 4.5 A
    Rated Speed 3000 rpm
    Rated Torque 2.39 Nm
    Peak Torque 7.17 Nm
    Back EMF 32.8 V/1000 r/min
    Torque Constant 0.53 N·m/A
    Rotor Inertia 1.5×10⁻⁴ kg·m²
    Resistance 1.2 Ω
    Inductance 4.2 mH
    Electrical Time Constant 3.5 ms
    Frame Length (LA) 96 mm
    Length with Brake 133 mm
    Weight 2.05 kg
    Encoder Resolution (PPR) 17-bit Incremental / Absolute Encoder
    Insulation Class Class F
    Protection Rating IP65
    Servo Drive
    Model ATO-LC10F-750
    Pulse Width > 2.5 µs
    Power Supply Range Single-phase 220 VAC
    Continuous Current 20 A
    Communication Speed 1 MDPS
    Signal Voltage +5 V / +24 V
    Response Frequency Max. 200 kHz (pulse command)
    Communication Speed 1 MDPS
    Dimensions 161 × 169.5 × 47.5 mm
    Product Weight 0.84 kg
    Supported Encoder Type Supports 17-bit Incremental / Absolute Encoders


    Features

    1. Powerful Power Output: The 750W AC servo motor delivers a rated speed of 3000rpm, with a peak torque of 7.17N·m, which balances high speed and high load capacity effectively.
    2. Digital Chip Servo Drive: By adopting a built-in DSP digital chip, the matched servo motor drive enhances operation speed and control precision, thereby delivering a smoother servo control experience for the AC servo motor with drive.
    3. Quiet Operation: The AC servo motor Utilizing advanced noise-reduction technology, it ensures a quiet, low-decibel environment and does not disturb the surrounding area during operation.
    4. Flexible Control Methods: This industrial servo motor kit supports direction + pulse control, CW + CCW control, AB pulse control, and analog voltage control, making it easier to integrate into various control systems.

    Dimension (unit: mm)

    AC Servo Motor

    750w ac servo motor dimension

    Servo Motor Drive

    750w ac servo motor drive dimension

    Servo Drive Details

    750w ac servo motor drive details

    Package Includes

    750w ac servo motor package

    Applications

    This 750W AC servo motor with drive delivers reliable and precise performance, widely applicable to 3D printers, CNC machines, cutting devices, laser equipment, automated machinery and electronic facilities.

    AC servo motor application

    Tips: What makes pure copper winding superior in AC servo motors?

    Pure copper winding in AC servo motors means less energy is wasted as heat, so the motor runs cooler, lasts longer, and delivers more power without needing a bigger size. It handles higher peak loads and frequent start-stop cycles better than aluminum, giving you reliable performance and fewer breakdowns over time. Simply put, pure copper winding is why a servo motor feels more responsive, stays tougher under heavy use, and keeps working reliably for years.



    This video briefly shows the application of the ATO servo system in a linear slide.

    ATO servo motor has 40mm to 180mm different square flange size, power rating from 50W to 7.5kW and speed range from 1000 rpm to 3000 rpm. so you can select the best one for your applications. In this video, ATO will show you servo motor linear actuator system for robotics.

    In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

    How to unlock the servo drive timing lock?

    In this video, the process of unlocking the servo drive timing lock is demonstrated.

    How to Connect the Servo Motor Controller and Set the JOG Mode?

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo drive and how to set the JOG mode.

    How to Use the Position Control Method of the Servo Motor(through PLC Pulse Control)?

    The video introduces the connection and control (position control method) between PLC and ATO servo motor system.

    Existing reviews of 750W AC Servo Motor with Drive, 2.39 Nm, 3000 rpm
    I need to replace the DC servo motor
    I need to replace the DC servo motor.
    If an AC servo motor is cheaper I prefer an AC servo motor.
    But I need to control the constant speed with a potentiometer for the x,y, and z axe on conventional milling.
    From: iris | Date: 26/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our AC servo motor has the function of controlling constant speed with a potentiometer for x, y, and z axe on conventional milling.
    What voltage and speed of the motor do you need, and how much torque do you need? Is there any requirement for the size of the motor?
    This servo motor only suit motors/cables
    Our PO numbers were PO_4147 and PO_4294. I believe they were for motors/cables only, not drives. The equipment with the motors is on the road right now. I will be able to get pictures of the nameplates and connectors and send them to you on Tuesday 2/21.
    From: skyla | Date: 02/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Thanks for the update, we noticed that this order was 942249 from last year.
    Please check the connector plug model used by the servo motor for your reference:
    1. Motor power line plug: four-core female straight plug XS16K4TP (pinner type)
    2, Encoder plug: seven-core female straight plug XS16K7TP (pin type)
    3. Brake plug: aviation plug straight plug-three-pin female XS12K3P blue rubber core
    Questions about the 750W servo motor
    For your 750W servo motor, on your web site, it appears to be 3 phases. Do you have an alternate motor and driver capable of running on 230V 1 phase?
    From: Melissae | Date: 19/01/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    For up to 1kW servo motor capacity, it runs on 1-phase, 220V.
    Servo motor use
    I have looked a little more into your website and reconsidered my requirements.
    I found:
    400W brushless DC motor (ATO-BLDC-400R3)
    400W AC servo motor (ATO-SERVO-60S400)
    I would like to know the weight of both – and then I would like to know if a gear can be built onto the ac servo motor, and if it can be used continuously.
    I am going to use the motor in a milling machine setup – which should be portable for a human (so she/he has to be able to lift it ). That’s why weight is so important for me.
    Hope you can help.
    From: Blew | Date: 24/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    400W brushless DC motor (ATO-BLDC-400R3) -3kg
    400W AC servo motor (ATO-SERVO-60S400) -2kg
    "I would like to know if a gear can be built onto the ac servo motor, and if it can be used continuously"
    Yes, you can work like that.
