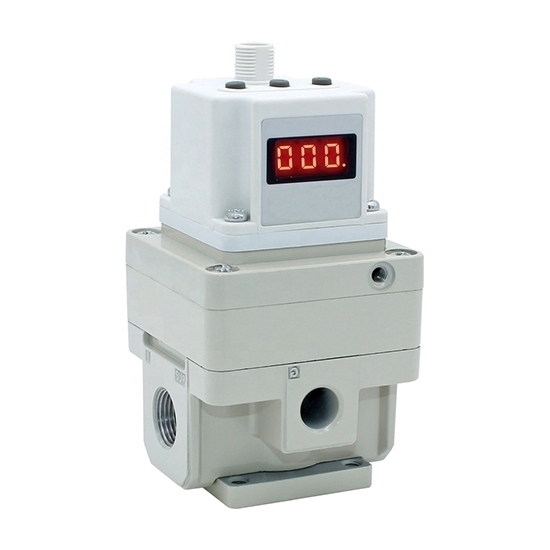

1/2 Inch Electro-Pneumatic Pressure Regulator, 50~9000 mbar

5 out of 5 based on 2 reviews | Write a review

$443.38

Air electronic pressure regulator with ideal price. High pressure range 50~9000 mbar (130.5 psi), high flow 4000L/min, working voltage DC 24V, input signal current 4~20mA or voltage DC 0~10V for configuration, analog DC 1~5V/switch output, connection hose 1/2 inch. Proportional pneumatic pressure regulator valve with electronic digital LED, low cost.

Power Supply *
Pressure Units *
Input Signal *
Output Signal *
Port Size *
Cable Connector *
Bracket *

SKU: ATO-PPPR-9012

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

ATO proportional electro-pneumatic pressure regulator with reasonable price. Pressure adjustment range 50~9000 mbar (130.5 psi), rated voltage DC 24V, current/voltage signal input, analog/switch output, hose size 1/2”. The electronic proportional pressure regulator is also a digital air pressure valve, which has the functions of pressure reducer valves or hydraulic valves, saving the cost for pneumatic control system.

Specification

Model		ATO-NITV305
Minimum supply pressure		Set pressure + 1000 mbar (+0.1 MPa)
Maximum supply pressure		10000 mbar (1 MPa)
Set pressure range		50~9000 mbar (0.005 to 0.9 MPa )
Max. Flow		4000L/min
Power supply	Voltage	DC 24V ± 10%, DC 12~15V
	Current consumption	Power supply voltage DC 24V type: 0.12 A or less Power supply voltage DC 12~15V type: 0.18 A or less
Input signal	Current type ^{*Note 1}	DC 4~20mA, DC 0~20mA (Sink type)
	Voltage type	DC 0~5V, DC 0~10V
	Preset input	4 points (Negative common), 16 points (No common polarity)
Input impedance	Current type	250 Ω or less ^{*Note 4}
	Voltage type	Approx. 6.5 kΩ
	Digital input	Power supply voltage DC 24V type: Approx. 4.7 kΩ. Power supply voltage DC 12V type: Approx. 2.0 kΩ
Output signal (monitor output) ^{*Note 2}	Analog output	DC 1~5V (Output impedance: Approx. 1 kΩ) DC 4~20mA (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less
	Switch output	NPN open collector output: Max. 30V, 80mA PNP open collector output: Max. 80mA
Linearity		± 1% F.S. or less
Hysteresis		0.5% F.S. or less
Repeatability		± 0.5% F.S. or less
Sensitivity		0.2% F.S. or less
Temperature characteristics		± 0.12% F.S./ ℃ or less
Output pressure display ^{*Note 3}	Accuracy	± 2% F.S. ± 1 digit or less
	Minimum unit	Mpa: 0.001, kgf/cm²: 0.01, bar: 0.01, psi: 0.1, kPa: 1
Ambient and ﬂuid temperature		0 to 50℃ (No condensation)
Enclosure		ip65
Port size		1/2 inch, 1/4 inch, 3/8 inch
Weight		645 g (without options)

*Note

2-wire type 4 to 20 mA DC is not available. Power supply voltage (DC 24V or DC 12~15V) is required.
Select either analog output or switch output. Further, when switch output is selected, select either NPN output or PNP output. When measuring NITV analog output from 1 to 5 VDC, if the load impedance is less than 100 kΩ, the analog output monitor accuracy of within ±6% (full span) may not be available. The product with the accuracy of within ±6% is supplied upon your request. Output pressure remains unaffected.
Adjustment of numerical values such as the zero/span adjustment or preset input type is set based on the minimum units for output pressure display (e.g. 10~5000 mbar). Note that the unit cannot be changed.
Value for the state with no over current circuit included. If an allowance is provided for an over current circuit, the input impedance varies depending on the input current. This is 350Ω or less for an input current of 20mA DC.

Features

Electroc-pneumatic pressure regulator adopts electrical proportional method to achieve stepless control of outlet pressure. It can realize remote control and program control.
Compared with hydraulic proportional valves, proportional pressure regulators are small in size, light in weight, compact in structure, light in weight and low in cost.
The control of proportional air pressure regulator is continuous control, and its characteristic is that the output quantity changes with the change of input quantity (current value or voltage value), and there is a certain proportional relationship between the output and input.
Proportional pneumatic pressure regulator has many types, which can be used with various electrical equipment and computers to control various electro-hydraulic systems. High control precision, flexible installation and strong anti-pollution ability.

50~9000 mbar Air Pressure Regulator Dimensions (Unit: mm)

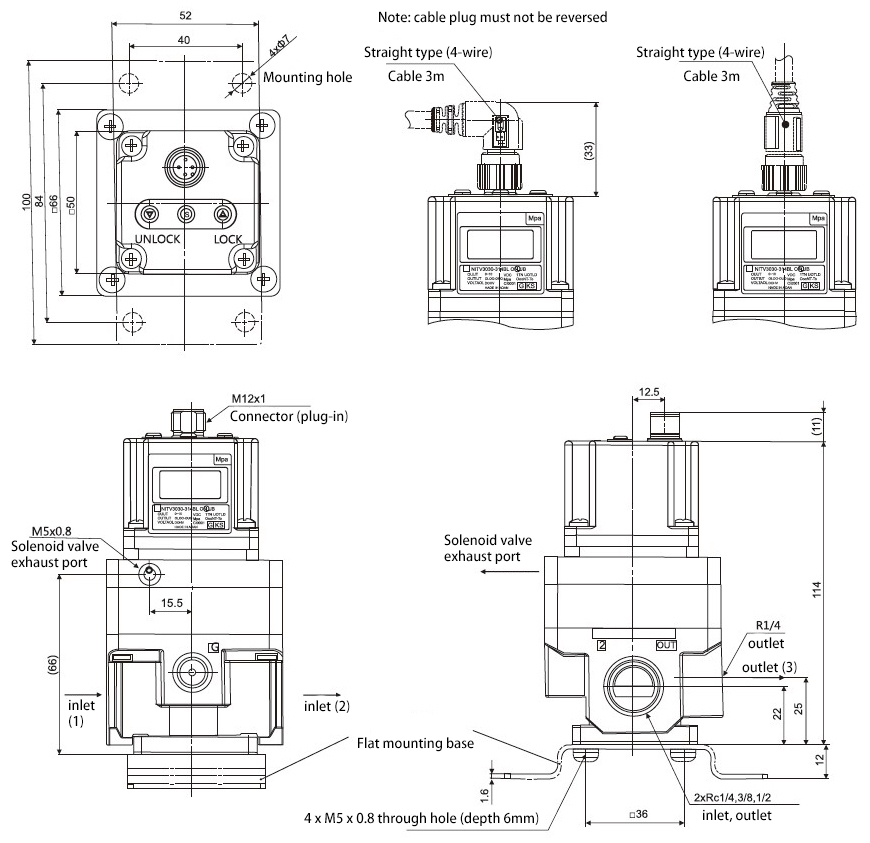

Electro-Pneumatic Pressure Regulator with Flat Bracket*

Dimensions of 50~9000 mbar 1/2 inch Proportional Pressure Regulator with Flat Bracket

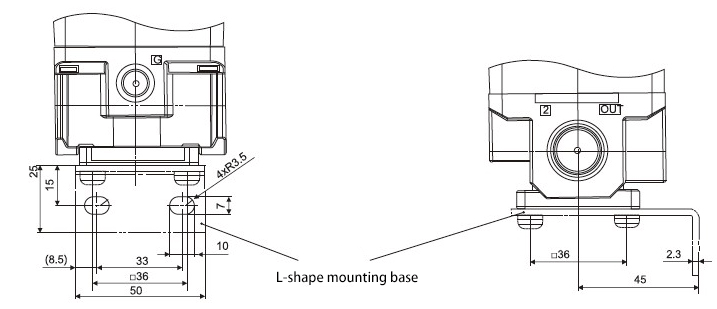

Electro-Pneumatic Pressure Regulator with L-Shape Bracket*

*Note: The bracket is the option.

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Existing reviews of 1/2 Inch Electro-Pneumatic Pressure Regulator, 50~9000 mbar

Some questions

I'd like to know if I can use an analog setpoint to set the pressure. Do I need a continuous signal? Or can I disconnect the analog signal once the setting is complete?

From: Vicona | Date: 20/08/2025

Was this review helpful? Yes No (0/0)

ATO Responded

This air pressure regulator can set the pressure via an analog input signal. It requires a continuous signal, and if the signal is disconnected, the output stops.

So far so good!

I was using the cheap regulator and was always disappointed in the pressure in our worksite. Adjusted the pressure, and this proportional pressure regulator is working great! Will report if there are any problems.

From: Mark | Date: 06/05/2022

Was this review helpful? Yes No (0/0)
