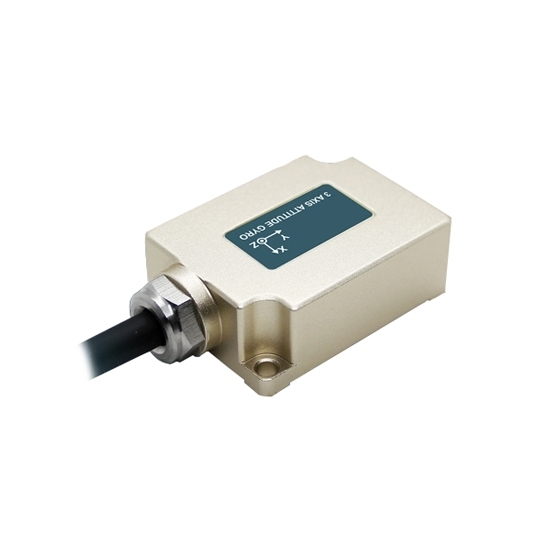

3 Axis Attitude Gyroscope Sensor for 5G Antenna Monitoring

Write a review

$134.12

Cheap 3 axis attitude gyroscope sensor enables high-precision alignment for 5G antenna monitoring. This miniature gyro accelerometer sensor utilizes MEMS gyroscope technology to deliver ±180° azimuth measurement with 0.01° resolution. RS485 communication enables real-time data transfer, while an IP67 rating ensures reliable operation in harsh environments.

SKU: ATO-GS-TL735G

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Super attitude gyroscope delivers precise 3 axis orientation data. MEMS gyro enables continuous 5G antenna positioning, tower tilt monitoring, and structural alignment. Rugged IP67 housing withstands harsh environmental conditions, operating temperature range spans -40℃ to +85℃ with 50000 hours MTBF.

Specification

Model	ATO-TL735G
Azimuth Measurement Axis	Z-Axis Azimuth Angle ±180°
Acquisition Bandwidth	>100 Hz
Azimuth Resolution	0.01°
Azimuth Accuracy	<0.5°
Non-linearity	0.1% of FS
Inclination Accuracy	0.1° RMS
Transverse Accuracy	Dynamic 0.5°, Static 0.1° RMS
Longitudinal Resolution	0.01°
Tilt Range	Roll: 180°, Pitch: 90°
Gyroscope Angular Rate	±125 °/s (Other rates customizable)
Acceleration Range	±2 g
Acceleration Resolution	0.1°
Acceleration Accuracy	0.5 mg
Default Data Output Type	Euler Angles
Default Azimuth Measurement Range	±180° (When output is Euler Angles)
Start-up Time	5 s (Stationary, vibration <10 mg)
Input Voltage	9-36 V, Default +24 VDC, 12 mA
Current Consumption	40 mA
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +125°C
Vibration	5 g to 10 g
Shock	200 g pk, 2 ms, ½ sine
Operating Life	10 Years
Start-up Time	5-6 seconds (Stationary, acceleration <0.01 g)
Maximum Sampling Rate	100 samples/second
Serial Communication Rate	Default 9600 baud
Output Signal	RS485
MTBF (Mean Time Between Failures)	≥50,000 hours
Insulation Resistance	≥100 MΩ
Shock Resistance	100 g @ 11 ms, Three Axes (Half-sine)
Vibration Resistance	10 g_rms, 10-1000 Hz
Waterproof Rating	IP67
Cable	Standard 1 m cable
Weight	120 g (excluding cable)

Features

Compact housing design: This 3 axis gyroscope features lightweight construction, weighing only 120g for easy installation.
Zero drift technology: Advanced angular rate sensor maintains static azimuth accuracy through gyro drift suppression.
Long-term stability: Operating life exceeds 10 years with reliable performance for 5G antenna monitoring.
Data retention capability: Digital gyro preserves azimuth and roll angles during power loss with built-in memory.
Environmental resistance: IP67 waterproof rating ensures operation in harsh weather conditions.

Dimension

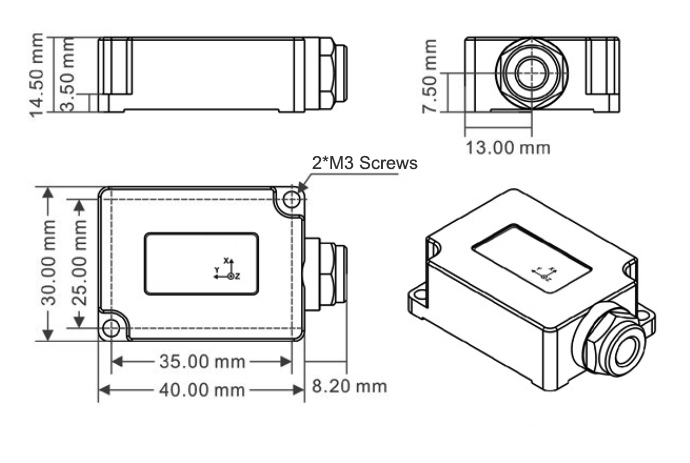

Attitude gyroscope sensor size

Wiring

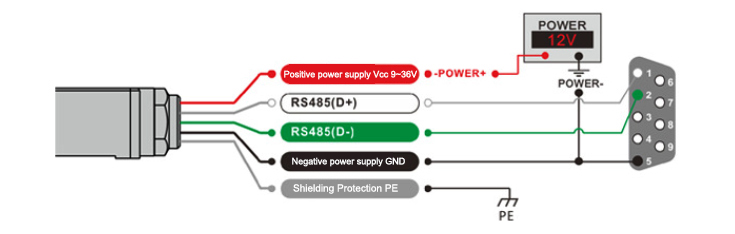

Attitude gyroscope sensor wiring

Installation

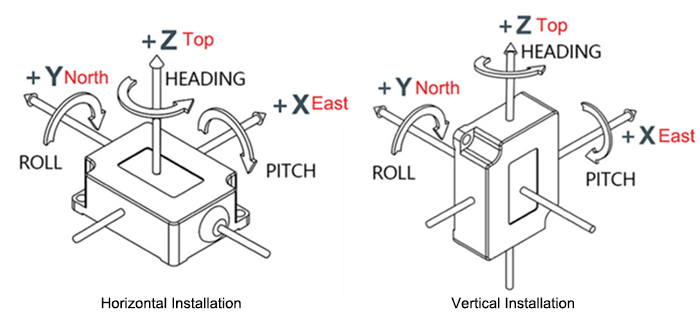

Attitude gyroscope sensor installation

Application

Attitude gyroscope sensor application

Tips: Does the 3 axis attitude gyroscope sensor need to be recalibrated after a power outage?

Absolutely not. This gyrometer sensor utilizes unique power-off memory technology. When the gyro sensor detects an unexpected power outage, it automatically saves the current azimuth and roll angle data to internal non-volatile memory. When power is restored, the system automatically retrieves this saved angle information and instantly restores the precise operating state before the power outage. No manual intervention or recalibration is required, effectively ensuring the continuity of 5G antenna monitoring and data reliability.
