Audible and Visual Alarm, 100-120dB, 380VAC/220VAC/24VDC

5 out of 5 based on 3 reviews | Write a review

$166.67

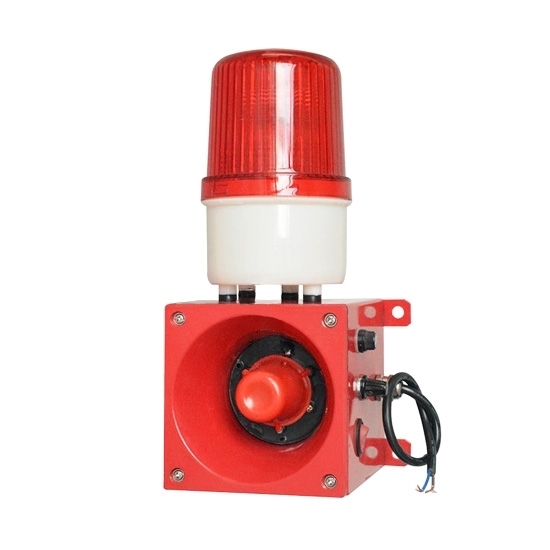

Audible and visual alarm consists of a warning light and a siren. When power on, the warning light and siren will alarm at the same time. It has optional output volume 100dB or adjustable 106-120dB, and optional light color of red/yellow/green. The working voltage can be 380VAC, 220VAC, 24VDC, 12VDC, or other customizable values. Audible and visual alarm can be used for security alarm system of overhead crane, travelling crane, ship, dock, port, transportation, iron and steel manufacture and metallurgical industry.

Dimension *
Working Voltage *
Working Voltage *
Working Voltage *
Color of Light *

SKU: ATO-AVALM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Audible and visual alarm with output volume 100dB or adjustable 106-120dB, working voltage 380VAC, 220VAC, 24VDC, 12VDC, etc.

Specification:

Model	ATO-AVALM-STSG-01	ATO-AVALM-STSG-07	ATO-AVALM-DX-200
Shipping weight	3kg	3kg	1kg
Dimension *	120130285mm (LWH)	183190385mm (LWH)	Φ38mm, 98mm (H)
Working voltage *	120VAC, 220VAC, 380VAC, 24VDC	120VAC, 220VAC, 380VAC, 12VDC, 24VDC, other customizable voltage	24VDC
Working current	0.5A	3A	30-50mA
Working frequency	50~60Hz	50~60Hz	-
Light	LED strobe light	LED strobe light	LED strobe light
Output volume	106-120dB	106-120dB	100dB@10cm
Output frequency	800Hz (D dur)	800Hz (D dur)	1s/time
Working mode	Alarm when power on
Material	Shell: Cast aluminium alloy Lampshade: PC	Shell: Cast aluminium alloy Lampshade: PC	Shell: Stainless steel Lampshade: PC
Function	Sound and volume can be adjusted by button.	Sound and volume can be adjusted by button.	Explosion-proof (Exdia IIC T6 Gb)
Protection class	IP65	IP65	IP65
Working temperature	-30~+70℃ (-22~+158℉)	-30~+70℃ (-22~+158℉)	-45~+85℃ (-49~+185℉)
Workign humidity	10%~85%	10%~85%	10%~95%
Color of light *	Red, yellow, green	Red, yellow, green	Red
Working pressure	101kPa	101kPa	86~105kPa

Note: * denotes optional parameters, you can select corresponding parameters in drop-down lists according to specification for every model.

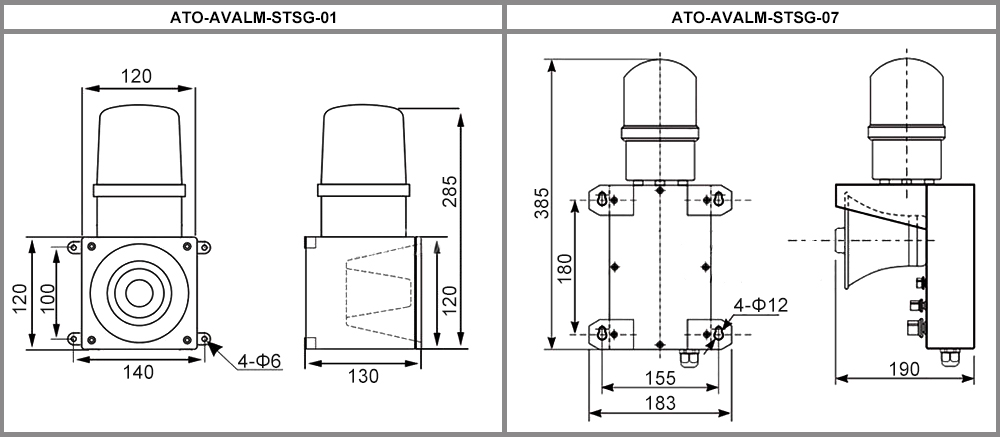

Dimension (unit: mm):

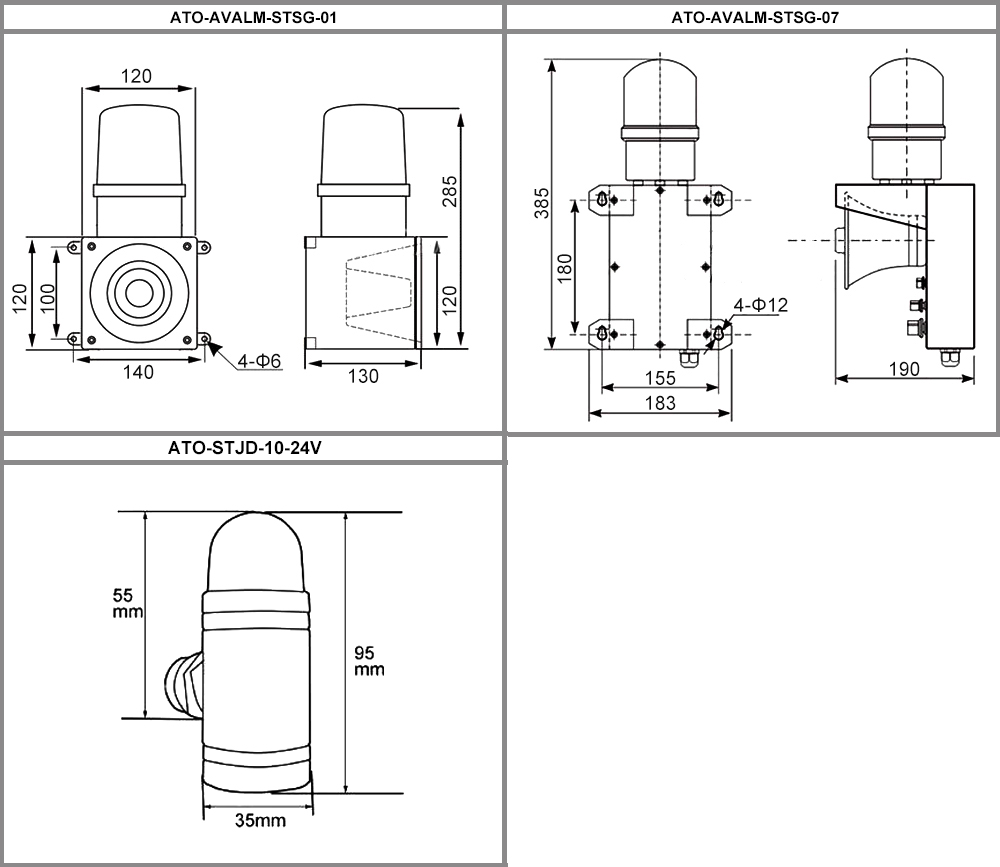

100-120dB AC 380V/220V DC 24V/12V audible and visual alarm dimension
Tips: Application of audible and visual alarm
Audible and visual alarm is a kind of warning device used in dangerous places to send alarm signals to people through sound and various lights. Explosion-proof audible and visual alarm is suitable for installation in places with explosive gas environment containing temperature class IIC T6. It can also be used in explosion-proof area 1 and area 2 with explosion-proof requirements in the petroleum and chemical industries.
Audible and visual alarm can be used with all fire alarm controllers. When an emergency accident or fire occurs on the site, the control signal sent by the fire alarm controller triggers the audible and visual alarm, and realize sound alarm and light alarm at the same time. It can also be used in conjunction with the manual alarm button to achieve simple sound and light alarm.

Existing reviews of Audible and Visual Alarm, 100-120dB, 380VAC/220VAC/24VDC

Some questions in regard to the alarms

My customer is asking the following in regard to the alarms we purchased last year.
Could you help me ask your manufacturer if it is possible to make an adaptation with any accessories or converter and what we must do to make it work at 125VDC?

From: yuri | Date: 30/08/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Sorry for the late response.
We noticed that the specifications of the alarm light you purchased are as follows:
Dimension : 183*190*385mm (ATO-AVALM-STSG-07)
Working Voltage: 120V, 60Hz
Color of Light: Red
The working rated voltage of this alarm light is 120VAC/60Hz.
Unfortunately, we cannot change the working power supply to 125VDC.
If it is 125VAC, the alarm light can use this voltage with no problem.
If it is 125VDC, it cannot be used.

An easy to use alarm

The alarm is very loud and the visual alarm is also very effective as it flashes bright red lights, ensuring that I am aware of the situation even if I am unable to hear the sound. The installation process was straightforward.

From: Elliot | Date: 02/03/2023

Was this review helpful? Yes No (0/0)

The siren is OK

This alarm worked as described and easy to install and which is loud, by the way it's necessary for my purpose. Appears to be well made and looks good.

From: Hank | Date: 13/04/2022

Was this review helpful? Yes No (0/0)
