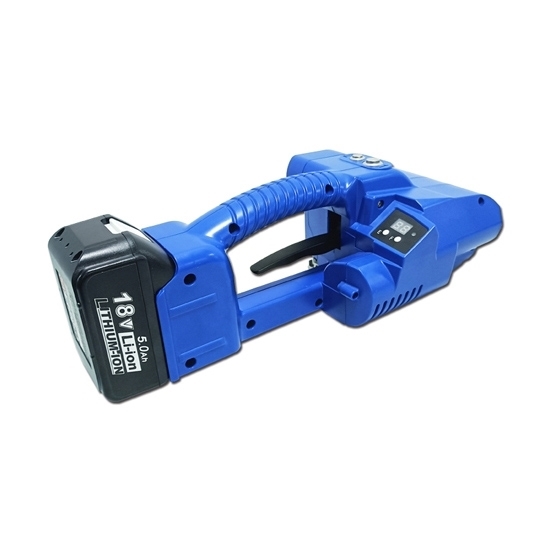

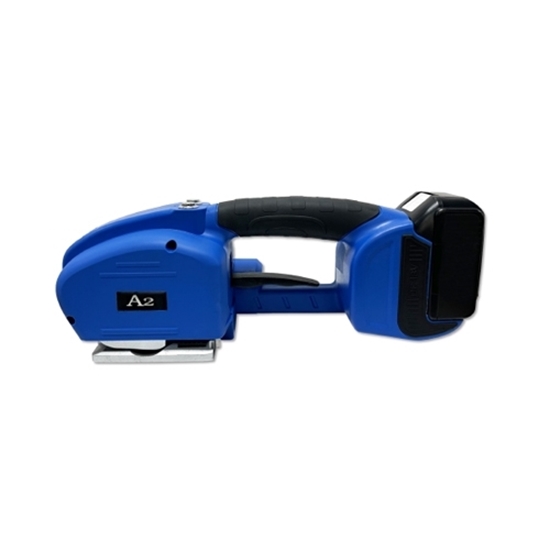

Battery Powered Strapping Tool, PP/PET

Using an electric strapping tool for tension, welding and cutting PP/PET plastic straps. It is available with 500-3200N high strap tension, digital display, semi-auto and automatic operation mode, and 400-600 straps per full charging.

Specifications

• Model: ATO-A-16
• Operation Mode: Semi-auto and Auto
• Power: Lithium Battery (5000mAh)
• Control System: Digital Display
• Strap Tension: 500-3200N
• Joint: Friction Welding
• Welding Time:1.4-2.0s
• Strapping Width: 9mm to 16mm
• Strapping Thickness: 0.5mm-1.2mm
• Strap Material: PP/PET
• Endurance: about 400-600 Straps Per Fully Charging
• Battery Charging Time: about 90min
• Weight: 3.44kg (incl. battery)
• Dimension: 310mmx135mmx130mm

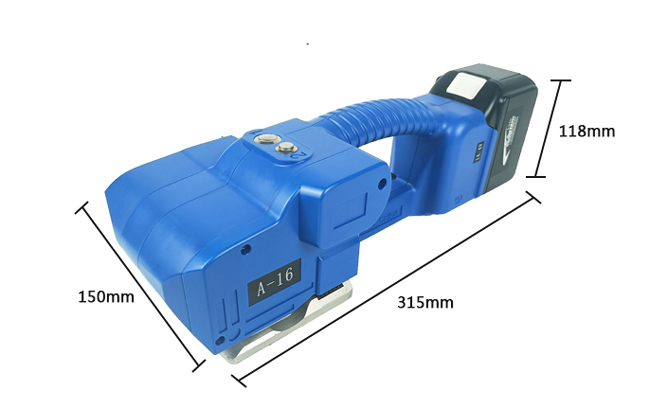

Dimension (Unit: mm)

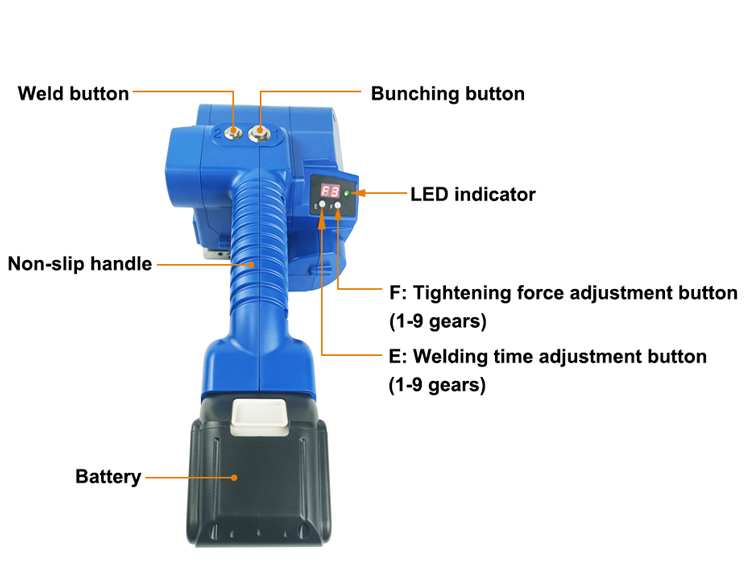

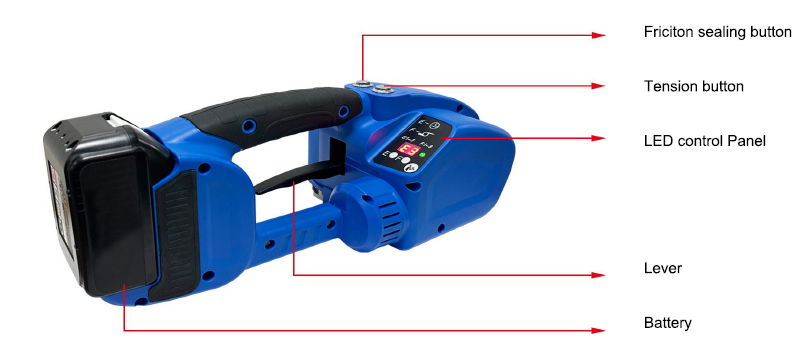

Details

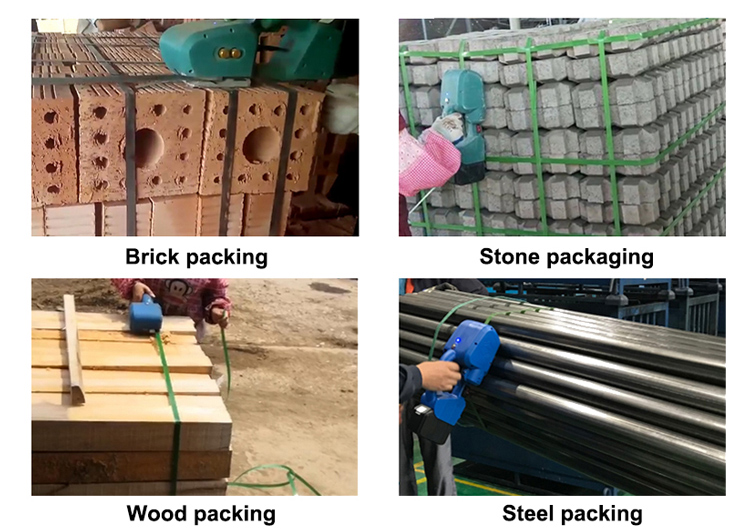

Applications

Tips: What is friction welding of a strapping tool?

Friction welding in a strapping tool is a process used to join the ends of the strap by generating heat through friction. This is typically done in battery-powered or pneumatic strapping tools. During the process, the tool rubs the strap ends together at a high speed, creating heat that melts the strap material. Once the material is sufficiently heated, the tool then presses the ends together, forming a strong, secure bond as the material cools and solidifies. This method is efficient and reliable, providing a consistent and durable seal without the need for additional fasteners or seals.
