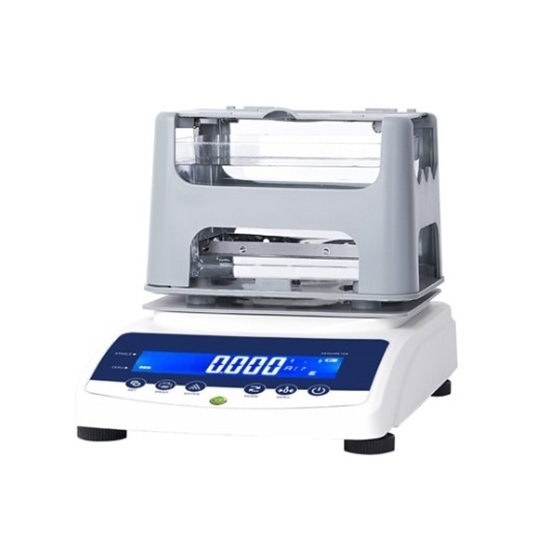

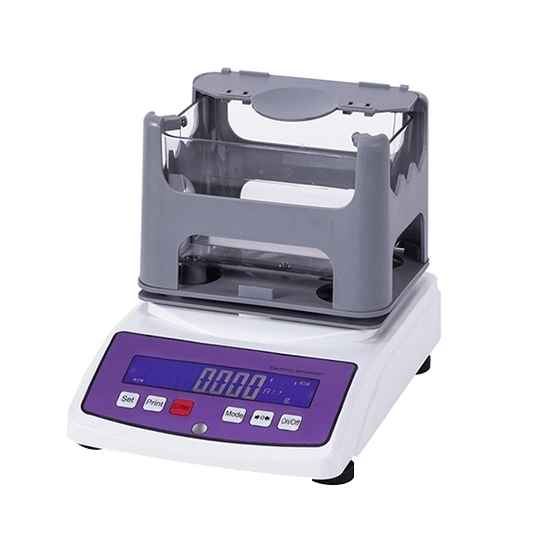

Benchtop Solid Density Meter for Glass/Rubber/Foam, 0.001g/cm³

Write a review

$790.77

Buy a benchtop solid density meter online with a density accuracy of up to 0.001 g/cm³ and a weighing range of 0.01-300g, 0.005-300g or 0.005-600g. It can easily test materials such as blocks, particles, films and floating bodies. Solid density meter is widely used to measure the density of irregular solid materials such as glass, rubber and foam.

Range *

SKU: ATO-DENSITY-SJG

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents

The benchtop solid density meter uses a large LCD screen display, which is intuitive and convenient to operate. It is widely used in rubber and plastics, wires and cables, composite materials, cosmetics, glass, hardware and other industries

Features

Benchtop solid density meter has a wide range of applications and can measure irregular solid materials such as blocks, particles, films and floating objects.
The solid density meter has a precise compensation function and provides four compensation settings-water temperature adjustment, measurement medium density, waterproof medium treatment, and density upper and lower limit settings.
It supports a wide range of density and can test solid density >1 or <1 to meet the testing needs of different materials.
The solid density meter provides flexible parameter settings and supports two parameter settings: solid density and density upper and lower limits, which is convenient for testing.
The digital solid density meter supports convenient data output and is equipped with an RS-232 interface, which can be connected to a printer or PC for convenient data management and recording.

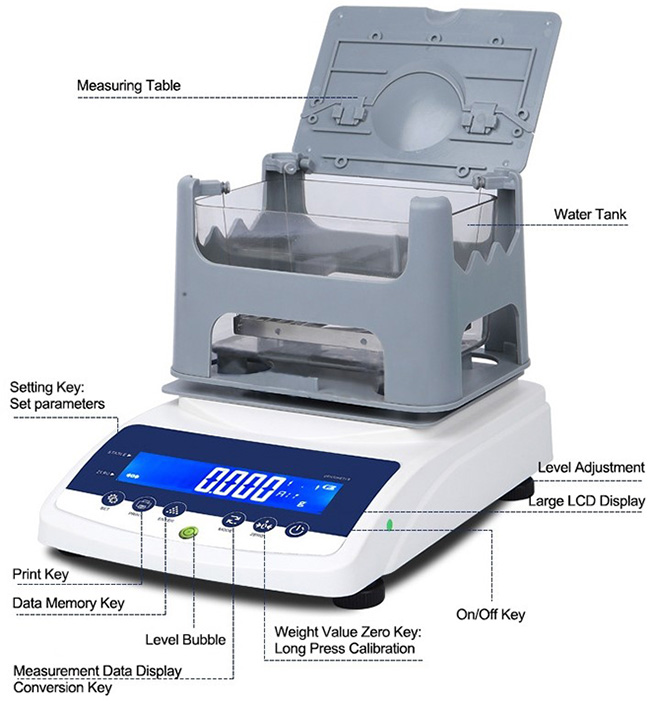

It adopts a clear display design and is equipped with a large LCD backlight display, making data reading clear and intuitive.

Specification

Model	ATO-JHY-300	ATO-JHY-300W	ATO-JHY-600W
Weighing Range	0.01–300g	0.005–300g	0.005–600g
Specific Gravity Accuracy	0.001 g/cm³
Tank Dimensions	150 × 100 × 85 mm
Measurement Time	Approx. 6 seconds
Output Port	RS-232 interface
Measurement Types	Solids, granules, lumps, emulsions, foams
Specific Gravity Range	Can test both >1 and <1
Setting Functions	Temperature compensation setting, solution compensation setting
Measurement Functions	Weight, density, volume
Weight	7.5 kg

Operating Steps

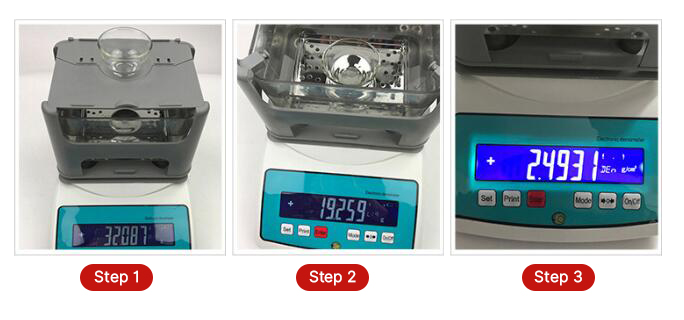

Benchtop solid density meter operation steps

Measure the product's weight in air.
Measure the product's weight in water.
The density value is displayed directly.

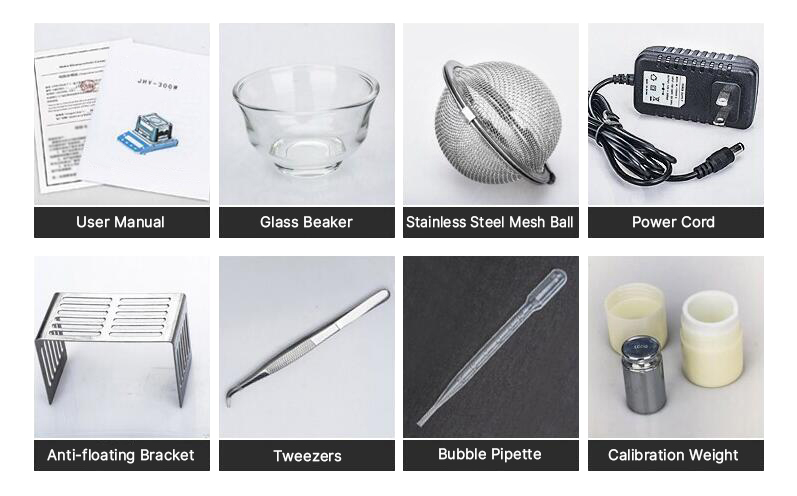

Accessories

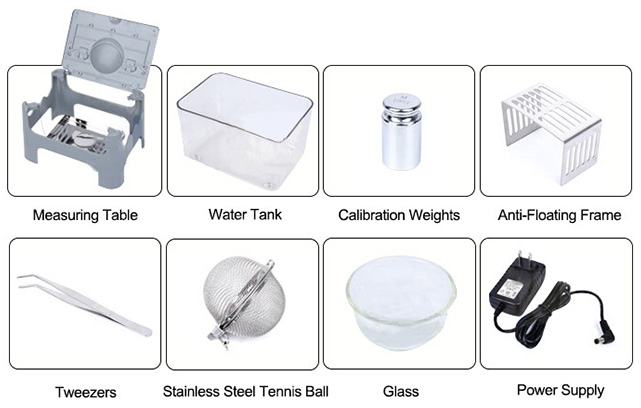

Benchtop solid density meter accessories

Applications

Benchtop solid density meter applications

Tips: Maintenance of solid density meter

Wipe the housing and test platform of the density meter with a soft cloth regularly to prevent dust and debris from affecting the measurement accuracy.
Avoid pressing or hitting the sensor hard to prevent damage or loss of accuracy.
Check the test platform regularly for wear or looseness, and tighten or replace it if necessary.
Calibrate the density meter regularly according to the instructions to ensure measurement accuracy. If there is a measurement deviation or error beyond the allowable range, recalibrate it in time.
Check the connection port regularly to ensure a stable connection to avoid data transmission interruption.
Confirm that the power supply voltage and the socket are in good contact to avoid equipment damage due to unstable voltage.
