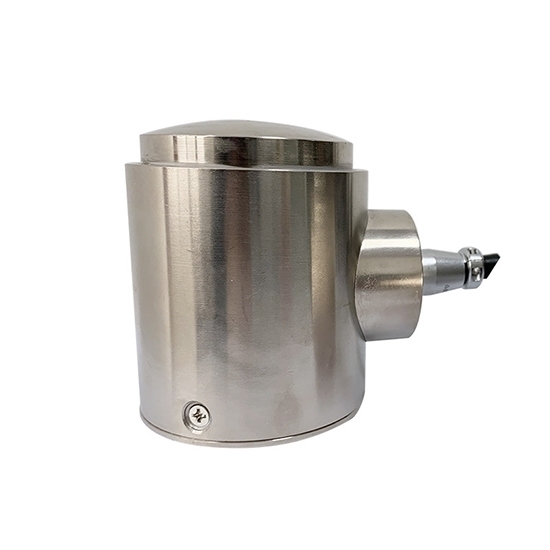

Canister Load Cell for Scales, 300 ton/500 ton/1000 ton

Write a review

$201.76

The canister load cell is available in capacities of 300 ton, 500 ton, and 1000 ton. The sealed design ensures stable performance in harsh environments and a wide operating temperature range of -20°C to 80°C, with simple and convenient installation. Widely used in truck scales, platform scales, and other heavy-duty industrial weighing systems.

Capacity *
With Transmitter
With Display Controller

SKU: ATO-LC-011

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The industrial canister load cell is built for scales, with a strong 42CrMo steel structure that resists fatigue and maintains accuracy under repeated loads. Its alloy steel construction resists moisture and dust, while the aviation connector ensures stable and reliable signal transmission.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Specification

Model	ATO-DYZ-011
Matched Transmitter	ATO-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	ATO-DPM-DY800 (Click it to the controller page)
Output Sensitivity	2.0/3.0 ±10% mV/V
Zero Balance	±2% F.S.
Non-linearity	0.3% F.S.
Hysteresis	0.1% F.S.
Repeatability	0.1% F.S.
Creep (30 minutes)	0.05% F.S.
Temperature Effect on Sensitivity	0.05% F.S./10°C
Temperature Effect on Zero	0.05% F.S./10°C
Response Frequency	1 kHz
Material	Alloy Steel
Input/Output Resistance	700 Ω
Insulation Resistance	≥5000 MΩ / 100 V DC
Excitation Voltage	DC 5–10 V
Operating Temperature Range	-20–80°C
Safe Overload	150% R.C.
Ultimate Overload	200% R.C.
Weight	0.9kg, 1.34kg, 4kg, 4kg, 9kg, 16kg, 30kg, 57kg, 125kg

Detail

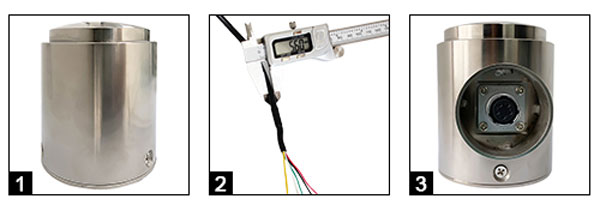

Canister load cell for scales detail

42CrMo Alloy Steel: Canister load cells made of 42CrMo alloy steel offer strong fatigue resistance and excellent hardenability, providing high toughness under repeated loads and ensuring reliable performance after heat treatment.
5.6 mm Outer Diameter Wire: The 5.6 mm outer diameter wire delivers stable signal transmission and strong interference resistance, ensuring reliable performance even in challenging environments.
Aviation Connector: Equipped with an aviation connector, the canister load sensor ensures secure and reliable electrical connections, delivering stable signal transmission and excellent resistance to vibration, moisture, and harsh industrial environments.

Size (unit: mm)

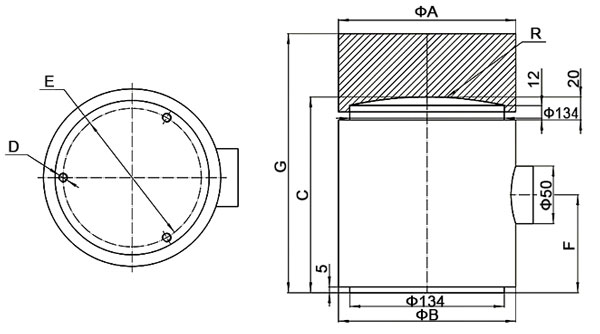

Canister load cell size

Capacity (ton)	300	500-650	700-1000
ΦA	154	196	246
ΦB	154	196	246
C	170	220	282
D	M8	M10	M16
E	120	150	190
R	300	400	500
G	225	285	364
F	85	110	132

Wiring

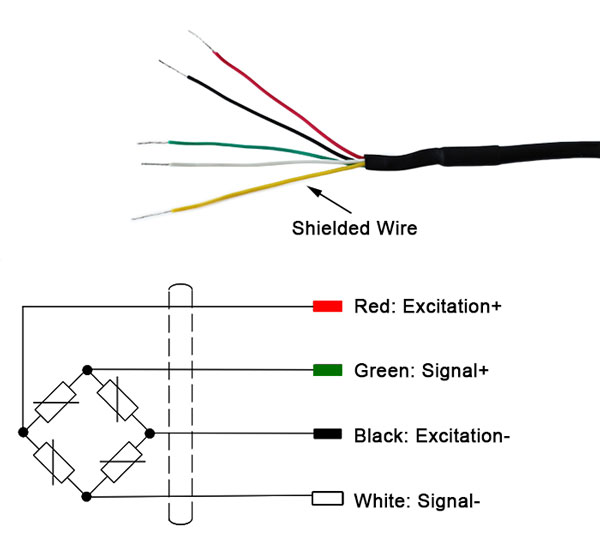

Canister load cell wiring

Tips: Why choose a canister load cell for high capacity?

The canister load cell features a symmetrical cylindrical structure that distributes compression forces evenly across the sensing element. This design minimizes stress concentration and enhances structural strength, making it highly suitable for heavy-load measurement. Its solid construction provides excellent resistance to deformation under extreme loads, while maintaining stable and accurate output. For high-capacity systems such as truck scales, silos, and industrial platforms, the canister design ensures long-term durability, safety, and reliable performance even under continuous heavy-duty operation.
