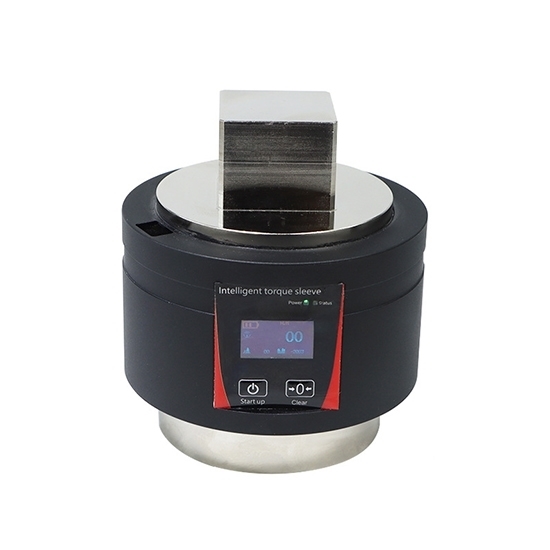

Digital Rotary Torque Sensor with Smart Sleeve, 500-3000 Nm

The high performance rotary torque sensor combines advanced measurement technology with an intelligent sleeve design, and its measurement range ranges from 500/1000/1500/2000/3000 Nm can be selected according to requirements. The high response frequency and short response time of the torque transducer enable it to capture torque changes in real time at high speeds. Moreover, the digital torque transducer supports temperature compensation, so that temperature changes have little effect on the zero point and sensitivity, and it has good anti-interference ability.

Specification


Features

1. Multi-torque Measurement: This digital torque sensor can measure both static torque and rotating torque.
2. High Accuracy Sensor: The torque accuracy can reach ±0.5%FS and the working time is about 10 hours after charging.
3. Real-time Digital Display: The torque transducer is equipped with a display on the sleeve, which can display the tightening torque in real time. With real-time torque and peak torque selection switching display.
4. Wireless Real-time Transmission: Wireless real-time torque data transmission function, wireless data transmission distance <10 meters.
5. Multi-scenario Application: It can be applied to hydraulic torque wrenches, electric torque wrenches and pneumatic torque wrenches to realize torque data communication transmission and automatic control.

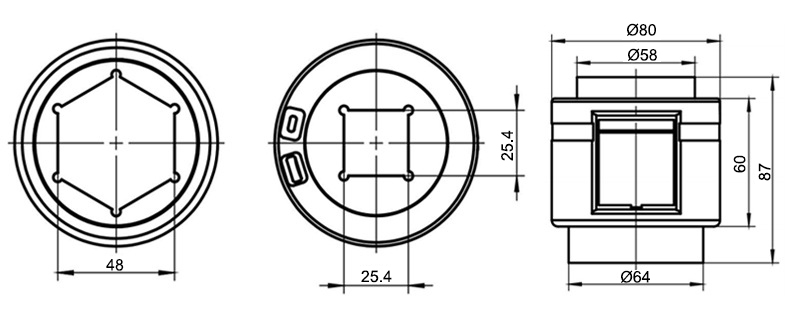

Rotary Torque Sensor Dimension (unit: mm)

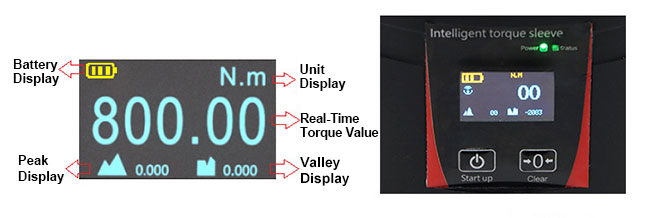

Display Instruction

Attention:

• When the torque sensor is not powered on, long press the power on button to power on in the running state.
• Long press the power on button to enter the shutdown interface, wait for 5s and then shutdown automatically.
• Long press the Zero button the display value will be set to zero.

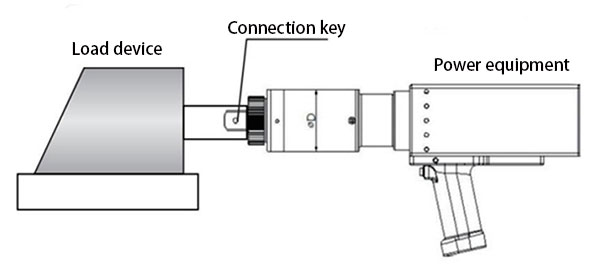

Wiring Drawing

Tips: What is a digital rotating torque sensor and its smart sleeve?

A digital rotary torque sensor is a high-precision device used to measure the amount of torque in rotary motion. It can monitor the torque changes in real time and convert the data into digital signals for processing and display. The Smart Sleeve is a smart interface used with the sensor that automatically adjusts the connection between the sensor and the device to provide more stable signal transmission, as well as wireless data transmission and remote monitoring.

To use the digital torque transducer, it is first necessary to install the sensor on the equipment to be measured. Once connected to the sensor via the Smart Sleeve, the system will automatically recognize and calibrate the sensor. When the equipment is running, the sensor will capture the torque data in real time and transmit the information to the monitoring system through the smart sleeve. Users can view the real-time data and historical data through the interface for performance evaluation or troubleshooting. The torque transducer is widely used in industry, automotive manufacturing, laboratories and other fields, simplifying the measurement process and improving work efficiency.
