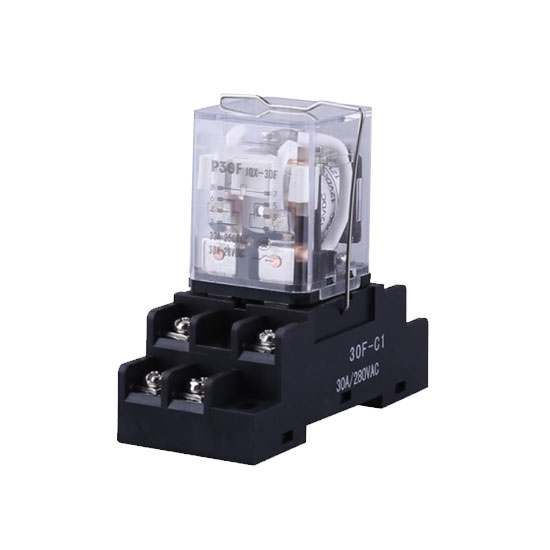

    Electromagnetic Relay, DPDT, 12/24/48/110/220V

    5 out of 5 based on 1 reviews | Write a review
    Electromagnetic relay with 8 pins, contact form DPDT (2NO and 2NC), plug-in terminals, contact load 30A/28V DC 250V AC, optional coil voltage of 12V DC/ 24V DC/ 48V DC/ 24V AC/ 110V AC/ 220V AC.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Compact electromagnetic relay with 8 pins and DPDT contact form, is widely applied in electronic equipment, communication equipment, automatic control system, instrument and meters, etc.


    Basics Model ATO-JQX-30F (Relay with Socket)
    Dimension (L*W*H) 85×37×70mm
    Weight 30g
    Ambient Temperature -25℃~+55℃
    Terminal Type Plug-in
    Number of Pins 8
    Technical Parameters Contact Form DPDT (2 Form C, 2NO + 2NC)
    Contact Material Silver alloy
    Contact Capacity (Resistive load) 30A/28V DC, 30A/250V AC
    Coil Power DC 2W, AC 4VA
    Coil Voltage (Optional) 12V DC, 24V DC, 48V DC, 24V AC, 110V AC, 220V AC
    Pick-up Voltage at 23℃ ≤38.40V DC, 88V AC
    Drop-out Voltage at 23℃ ≤4.8V DC, 36V AC
    Contact Resistance @6V DC 1A ≤100MΩ
    Dielectric Strength Between open contact 1200V AC 50Hz/1min
    Between coil & contact 2500VAC 50Hz/1min
    Leakage current ≤1mA
    Insulation Resistance (MΩ) 1000MΩ at 500V DC

    Connection Diagram

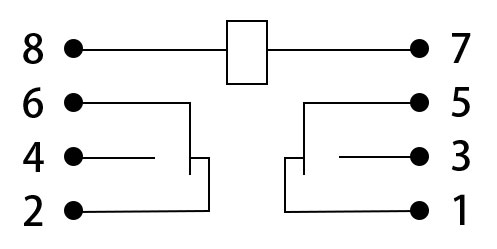

    Connection Diagram of DPDT 12/24/48V Electromagnetic Relay

    Installation Dimensions

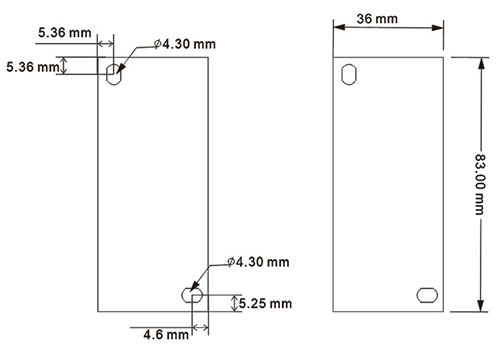

    Installation Dimensions of DPDT 12/24/220V Electromagnetic Relay

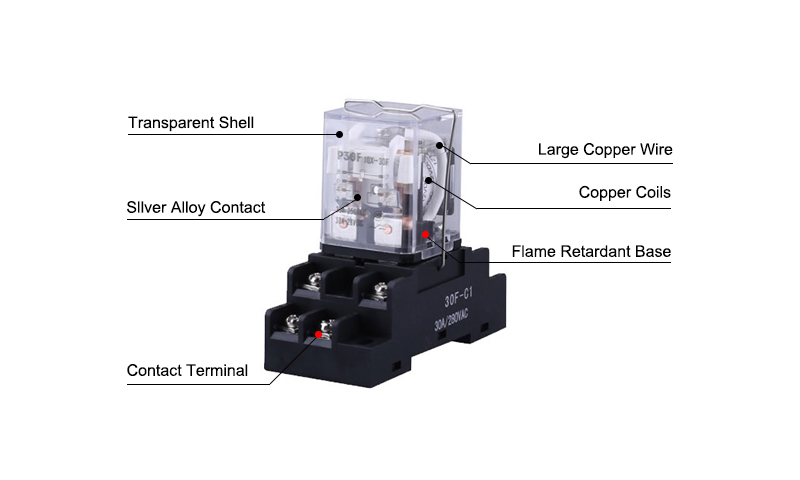

    12V-220V Electromagnetic Relay Details

    Tips: Difference between electromagnetic relay and AC contactor

    The electromagnetic relay is a kind of voltage relay with many contacts and large current capacity. It switches on or off to control circuit according to the change in some input signal. The action time is not greater than 0.05s. When the number of contacts or capacity of other relays is insufficient, the electromagnetic can expand the contact capacity, which plays an intermediate conversion and amplification role. But the AC contactor is a kind of main circuit automatic control appliance used for frequently switching on or off a load.
