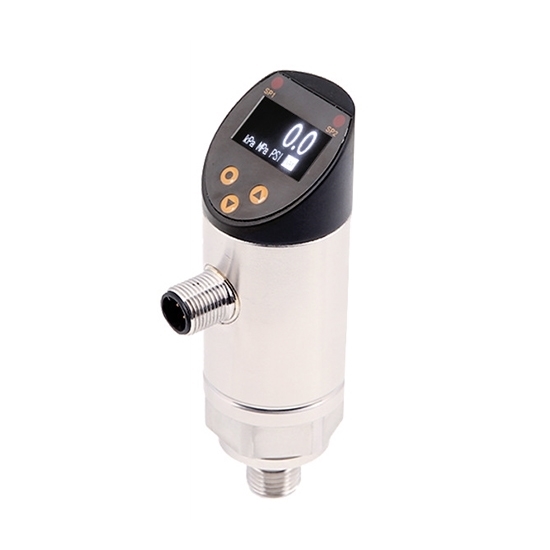

Digital Fluid Pressure Control Switch, 10kPa to 100MPa

Write a review

$321.18

The digital fluid pressure control switch integrates pressure measurement, display, output, and control in one device. A silicon piezoresistive sensor provides the pressure signal, followed by low-drift amplification and high-resolution A/D conversion for accurate digital processing. Real-time pressure display, two switch outputs, and a 4–20 mA analog output enable reliable pressure monitoring and control across a wide range of 10 kPa to 100 MPa.

Measuring Range *

SKU: ATO-FPS-PCM710

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The digital fluid pressure control switch integrates pressure sensing, display, and control with a silicon piezoresistive sensor and digital processing, providing stable measurement, dual switch outputs, and a 4–20 mA signal for dependable system control.

Specification

Model	ATO-PCM710-VD
Measuring Range	10 kPa to 100 MPa (optional ranges available)
Overload Capacity	150 ~ 300%FS
Accuracy	Class 0.2, Class 0.5
Power Supply	12 ~ 30 V (24 V recommended)
Display Type	4-digit OLED Display
Output Type	Two Switch Outputs, NPN/PNP Compatible + 4–20 mA
Load Capacity	≤ 24V 1.2A
Power Consumption	≤ 15mA
Operating Temperature	-25°C ~ 80°C
Storage Temperature	-40°C ~ 100°C
Response Time	≤ 20ms
Insulation	100 MΩ/ 250 VDC
Protection Level / IP Rating	IP65
Housing Material	304
Media Compatibility	Wetted Diaphragm 316L / Pressure Inlet Fitting 304
Weight	About 250 g

Feature

Integrated Functions: The digital fluid pressure control switch combines pressure measurement, display, output, and control in a fully electronic structure.
Silicon Piezoresistive Sensor: Uses a high-stability silicon piezoresistive sensor for accurate pressure detection.
High-Precision Signal Processing: A low-drift amplifier and high-resolution A/D converter ensure stable digital processing.
Dual Switch Outputs + 4–20 mA: The smart fluid pressure switch provides two switch outputs and a 4–20 mA analog output for flexible control.
High Switching Accuracy: Offers precise and reliable set-point switching.
Adjustable Response Time: Supports response-time adjustment for different applications.
NPN / PNP Compatibility: Mini fluid pressure control switch supports both NPN and PNP modes with easy switching.
User-Friendly Key Operation: Features button adjustment, one-touch zero calibration, and quick unit switching.
OLED Pressure Display: Provides a clear real-time pressure readout on an OLED screen.
Status Indicator LEDs: The pressure control switch includes LEDs that show switch action status at a glance.

Size

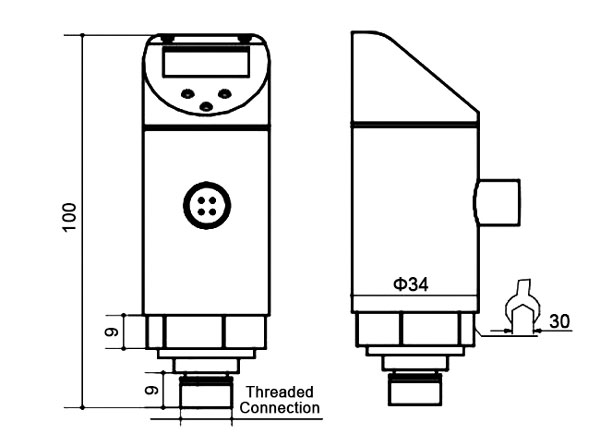

Fluid pressure switch size

Wiring

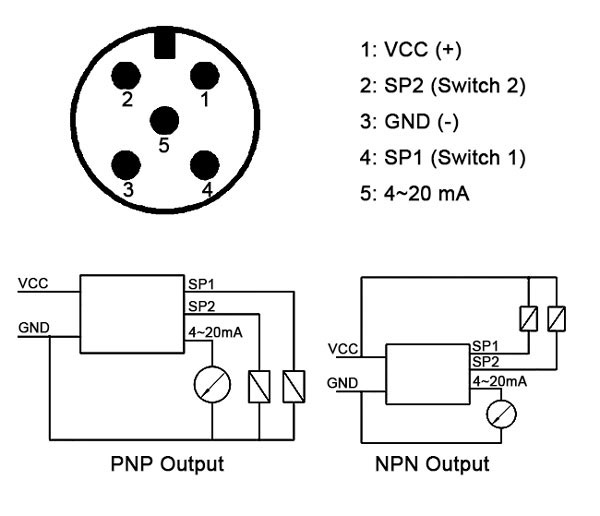

Fluid pressure control switch wiring

Operation

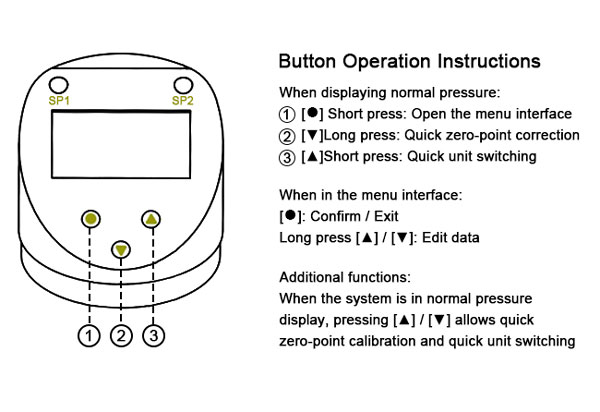

Fluid pressure switch operation

Tips: How to protect the digital fluid pressure control switch from pressure spikes and hydraulic shock?

In systems with pulsation, hammering, or sudden pressure surges, it is recommended to install a pressure snubber, damping orifice, or throttle restrictor at the sensor of the pressure switch’s inlet. These components suppress instantaneous spikes, stabilize the pressure waveform, and significantly reduce impact on the sensing diaphragm. For severe hydraulic shock, a buffered tee joint or capillary tube can also be used to enhance protection.
