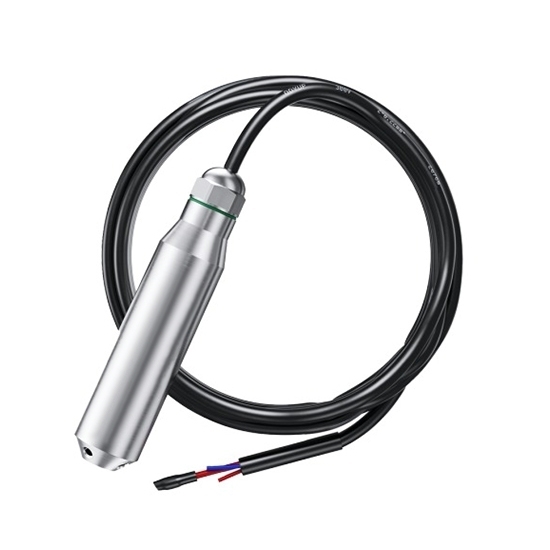

Hydrostatic Submersible Level Sensor, IP68, 0-500m

Combining a rugged 316L stainless steel diaphragm, waterproof cable design, and flexible outputs, the hydrostatic submersible level sensor enables convenient installation and integration. Its -20–60℃ operating temperature, 8ms response time, and multiple outputs support PLC-based measurement and control
systems. Choose this durable sensor for long-term industrial use.

Specification

Features

1. Hydrostatic Pressure Measurement: The Hydrostatic Submersible Level Sensor measures liquid level by detecting hydrostatic pressure generated by liquid depth, providing accurate and reliable level measurement.
2. 0–500m Wide Measuring Range: The hydrostatic submersible level sensor supports a measuring range up to 500m, with the range customizable as needed within 0–500m, providing accurate liquid depth measurement for deep water and industrial applications.
3. High Accuracy Measurement: The submersible level sensor features 0.2% F.S. accuracy and stable performance, ensuring reliable liquid level monitoring in various environments.
4. IP68 Waterproof Protection: Designed for long-term immersion, the hydrostatic submersible level sensor with IP68 sealing provides reliable operation in underwater and harsh field conditions.
5. 316L Stainless Steel Diaphragm: The level sensor uses a durable 316L stainless steel diaphragm and corrosion-resistant materials, suitable for liquids compatible with stainless steel.
6. Fast Response Time: With an 8ms response time, the hydrostatic submersible level sensor quickly detects liquid level changes for efficient monitoring and control.
   Easy Direct Installation: The submersible design allows the level sensor to be directly placed into the measured liquid, simplifying installation and operation.
7. Wide Application Compatibility: The hydrostatic submersible level sensor is suitable for liquid level measurement in water supply, petroleum, chemical, power plant, and hydrological exploration systems.

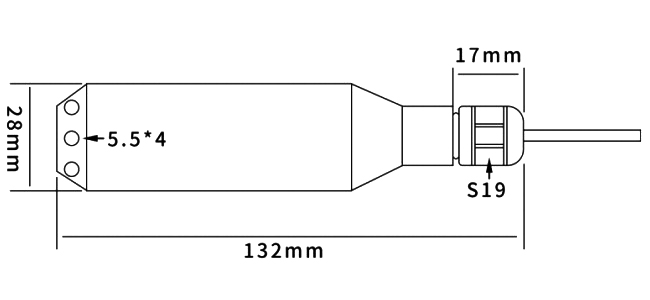

Dimension (unit: mm)

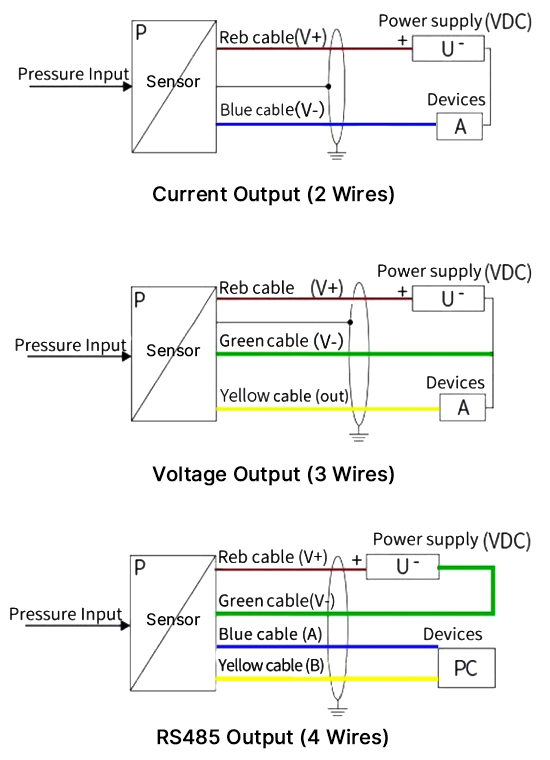

Wiring

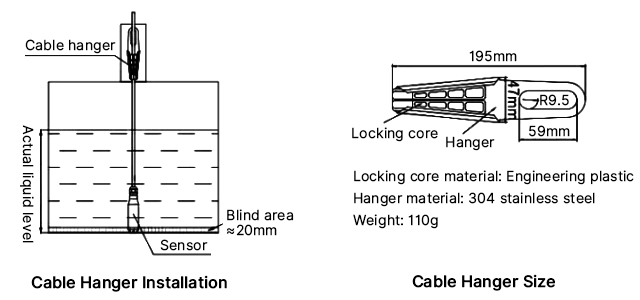

Installation

Tips: How does a hydrostatic submersible level sensor work?

A Hydrostatic Submersible Level Sensor measures liquid level by detecting the hydrostatic pressure generated by the liquid column. The pressure changes according to the liquid density and depth, following the principle of P = ρgh. The built-in pressure sensor converts the detected pressure into standard electrical signals such as 4–20mA, voltage, or RS485, allowing accurate liquid level monitoring through PLCs and control systems.
