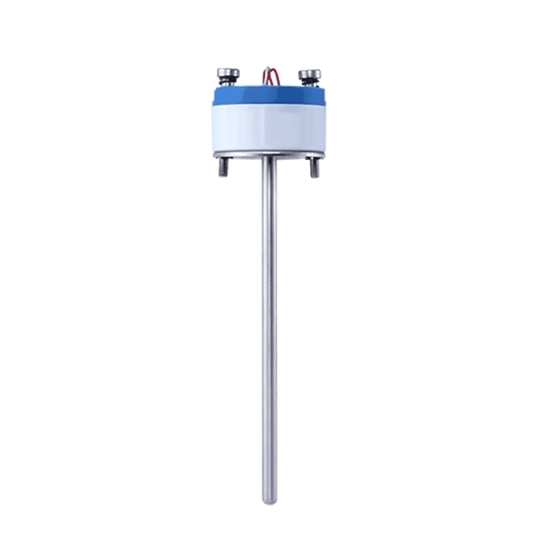

Industrial High Temperature Sensor, -50~500℃, Pt100

$92.68
Industrial high temperature sensor is a thermocouple temperature sensor with a measurement range of -50 to 500°C and an accuracy level of 1/3B. The good temperature sensor is available in various insertion depths: 175mm, 195mm, 245mm, 295mm, 345mm, and 445mm. Its output method is a Pt100 current in digital format, ideal for industrial gas, Industrial equipment, HVAC.
*
*
SKU: ATO-TS-CWDZ05M
30-day Returns
Free Shipping
Delivery date: 6-12 days

Industrial high thermocouple temperature sensor for sale, measures from -50 to 500°C with 1/3B accuracy. It offers insertion depths of 175mm, 195mm, 245mm, 295mm, 345mm, and 445mm, with a Pt100 digital current output. Ideal for industrial gas, equipment, and HVAC applications.

Specification

Model ATO-CWDZ05M
Temperature Range -50 to 500°C
Accuracy Level 0.25%FS (default), 0.5%FS (optional)
Accuracy 1/3B level
Output Methods Pt100, digital
Insertion Depth 175mm/195mm/245mm/295mm/345mm/445mm (optional)
Resolution 0.1℃
Working Temperature 85°C
Housing Material ABS engineering plastic
Tube Material 304 stainless steel (contact with the measured medium)
Stability ±0.1% FS/year
Connection Time 400ms


Feature

  • Replaceable Probe for Easy Maintenance: This temperature sensor is designed with a replaceable probe, making it easier to perform maintenance and replacements directly on-site.
  • High Accuracy for Precise Measurements: This sensor is engineered to deliver high accuracy in temperature readings, offering enhanced precision for industrial applications where exact measurements are critical.
  • Wide Temperature Range up to 500°C: Capable of measuring temperatures up to 500°C, this sensor offers a broad operational range, making it suitable for a variety of industrial applications where high-temperature measurement is required.
  • CE Certification for European Standards Compliance: The sensor holds CE certification, signifying that it meets European Union safety, health, and environmental protection standards.

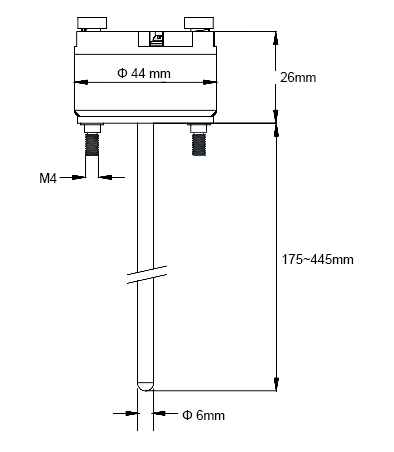

Size

Industrial temperature sensor size

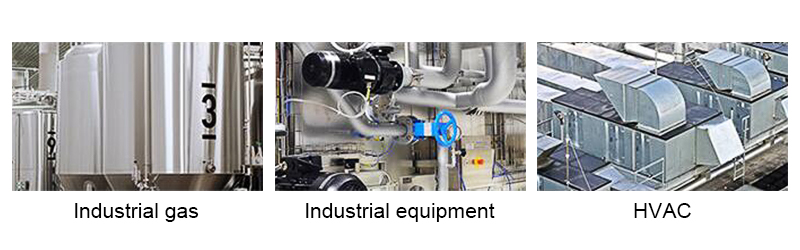

Application

Industrial temperature sensor application

Tips: What makes Pt100 industrial temperature sensors suitable for industrial applications?

Pt100 sensors are one of the most reliable options for industrial applications due to their accuracy, stability, and wide temperature range. The platinum element used in Pt100 sensors has a stable and linear temperature-to-resistance relationship, making it highly predictable and easy to calibrate. This sensor type is known for long-term stability, which reduces the need for frequent recalibration, an essential factor in industrial settings where sensors are exposed to continuous operations. Moreover, Pt100 sensors can operate in extreme temperatures (up to 500°C in this case), making them versatile for a variety of environments, from low-temperature storage facilities to high-temperature manufacturing processes.
