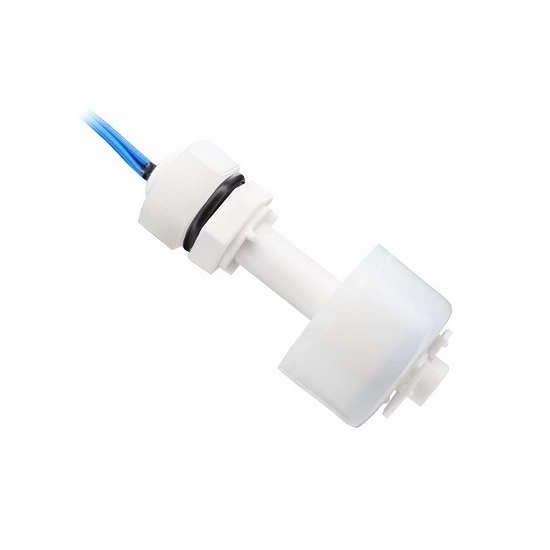

Magnetic Float Level Switch, PVDF, 220V

5 out of 5 based on 2 reviews | Write a review

$47.51

Magnetic float level switch for sale, made of full PVDF for excellent acid and corrosion resistance, with 220V switching voltage, ensuring stable and reliable liquid level detection for chemical and industrial use. Order now to enhance equipment safety and performance.

SKU: ATO-FS-PVDF

This product has a minimum quantity of 2

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

With PVDF body and fluorocarbon seal, this magnetic float level switch resists harsh corrosion and works across a -10~85°C temperature range. It supports 220V systems, installs with ease, and is perfect for chemical, environmental, and industrial liquid level applications.Buy now for a durable and efficient level monitoring solution.

Specification

Model	ATO-45PVDF-2A1
Float ball	PVDF
float body	PVDF
E-Ring	PVDF
O-Ring	Fluorocarbon rubber
Screw Nut	PVDF
Data scan	2A1
Contact Form	1A
Tempe Rating	-10~+85℃
Max Contact Rating	70W
Max Switching voltage	220VAc
Min Breakdown Voltage	400VDC
Max Switching Current	0.5A
Max contact Resistance	200m Ohm
Housing	None
Terminal	None
Wire	1332 AWG22
Wire length	400mm x2
Wire	Blue

Features

Full PVDF Construction: This float level switch features all-PVDF components, offering exceptional resistance to strong acids, alkalis, and corrosive liquids.
Superior Corrosion Resistance: Designed as a durable float switch for chemical and industrial applications requiring long-term stability.
Reliable Magnetic Switching: Built with a precise reed switch, this magnetic float level switch ensures accurate and stable liquid level detection.
220V Industrial Compatibility: This float switch supports 220VAC, making it ideal for industrial and chemical liquid level control applications.

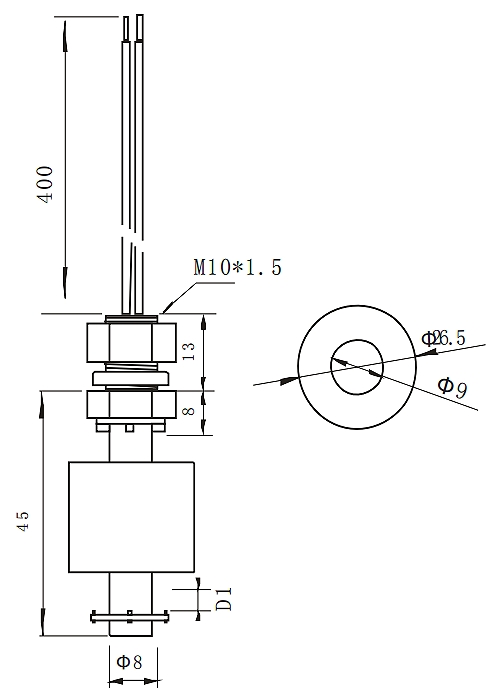

Dimensions (Units: mm)

Tips: What are the advantages of PVDF float switches compared to other materials?

PVDF float switches offer certain advantages in key industrial applications. Compared to standard plastics (like PP or PVC), PVDF offers much higher chemical resistance, with better durability in strong acids, alkalis, and harsh liquids, plus improved temperature stability. Compared to stainless steel float switches, PVDF provides excellent corrosion resistance without rust, pitting, or metal reaction risks, making it ideal for corrosive or high-purity environments. It is also lighter and electrically non-conductive, improving safety and ease of installation. Overall, PVDF float level switches are reliable and durable for demanding chemical and industrial liquid level control.
