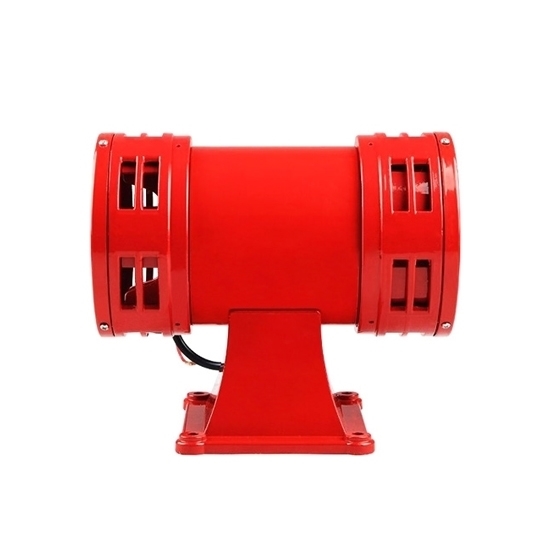

Motor Alarm, 120dB, 110VAC/220VAC

$240.74

Motor alarm has optional working voltage AC 110V or AC 220V, cast aluminum alloy shell, red paint and protection class IP44. The internal single phase motor speed is 1000 rpm. Two-way motor alarm with alarm volume 120dB can be used for emergency alarm of water conservancy and flood prevention.

Working Voltage *
Remote Control *

SKU: ATO-MOALM-120

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Motor alarm has alarm volume 120dB, optional working voltage AC 110V/AC 220V and two-way alarm mode.

Specification:

Model	ATO-MOALM-MS490
Shipping weight	10kg
Dimension	202115170mm
Working voltage *	AC 220V, AC 110V
Working frequency	50Hz/60Hz
Working current	1.0A, 1.9A
Output volume	120dB
Sound	Continuous alarm sound (It is best to work for 2 minutes, and then stop working for 30 minutes. After the motor becomes cool, the motor alarm can work again.)
Working mode	Alarm when power on
Shell material	Cast aluminum alloy
Color	Red
Protection class	IP44
Insulation resistance	100MΩ (at 500VDC)
Motor speed	1000 rpm
Remote control *	Effective control distance is 500m.

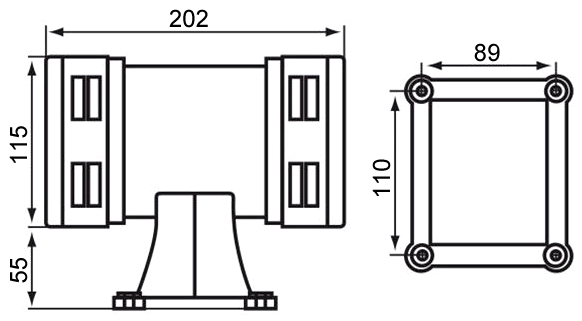

Dimension (unit: mm):
Motor alarm 120dB 110VAC/220VAC dimension
Tips: Motor alarm maintenance

The surface is clean, no dust, no scratches, etc.
The base bolt is firm and reliable, and other fasteners have no loosening.
The positioner is positioned accurately, and there is no rat nest, bird nest, spider nest, etc. in the rotor.
Use the screwdriver to rotate the rotor. It should rotate flexibly without jamming.
Any alarm test sound is strong when power-on.
Refresh the paint of the stator of the motor alarm every two years. Because the gap between the rotor and the stator is limited, it is not necessary to paint the rotor to avoid jamming.

Note: Motor alarm must be powered off before operation.
