Motor Alarm, 130dB, AC 110V/220V

5 out of 5 based on 1 reviews | Write a review

$457.67

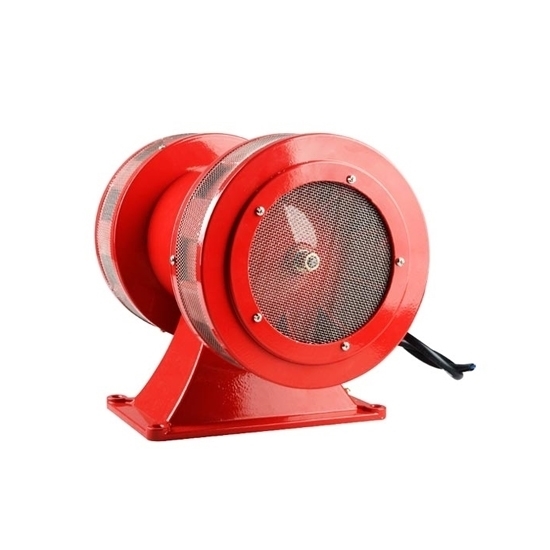

AC 220V/110V motor alarm has cast aluminum alloy shell and protection class IP44. It adopts a single phase motor and two-way alarm mode to realize emergency alarm. The motor speed is 1000 rpm and the alarm volume is 130dB. Motor alarm can be used for alarm system of gas station, ship, plain, ranch, forest farm, etc.

Working Voltage *

SKU: ATO-MOALM-130

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Motor alarm has high volume 130dB, optional working voltage AC 110V/AC 220V and two-way alarm mode.

Specification:

Model	ATO-MOALM-MS690
Shipping weight	13kg
Dimension	297226260mm
Working voltage *	AC 220V, AC 110V
Working frequency	50Hz/60Hz
Working current	1.9A, 3.7A
Output volume	130dB
Sound	Continuous alarm sound (It is best to work for 2 minutes, and then stop working for 30 minutes. After the motor becomes cool, the motor alarm can work again.)
Working mode	Alarm when power on
Shell material	Cast aluminum alloy
Color	Red
Protection class	IP44
Insulation resistance	100MΩ (at 500VDC)
Motor speed	1000 rpm

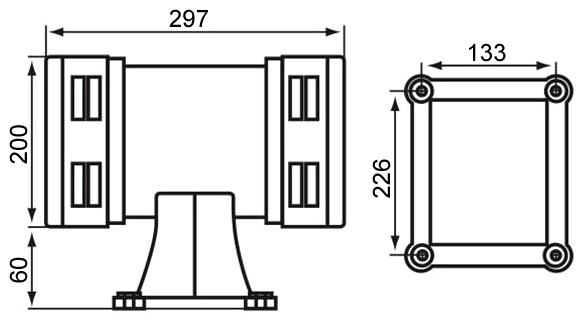

Dimension (unit: mm):

Tips: Where to install a motor alarm?
In general, a motor alarm can cover a range of 1 square kilometer. If motor alarm is used for air raid warning, the air defense department will set the motor alarm according to this distance. However, in the process of sound transmission, it will be blocked by high-rise buildings. Generally, in dense populated areas in city, the installation of alarms is relatively dense. In open areas, the motor alarm quantity is less. In addition, the gathering places such as squares or schools are also important places to install motor alarms.
