    Ordinary/Gland Type Vacuum Freeze Dryer Machine

    $17,580.17
    Vacuum freeze dryer is a lyophilization machine for commercial and industrial. Models are available in ordinary and gland type. Ordinary type freeze dryer is equipped with 4 layers of 200mm trays, which is suitable for freeze-drying bulk materials. Gland type freeze dryer is equipped with 3 layers of 180mm trays. Its gland device seals the vial, which is equivalent to vacuum packaging, to avoid cross-infection caused by contact between materials and air.
    SKU: ATO-FD-2101
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-20 days

    Suitable Material Types for Different Freeze Dryer Types

    • Ordinary freeze dryer: Suitable for bulk materials.
    • Gland-type freeze dryer: Suitable for loading and lyophilizing materials in vials.

    Application: Vacuum freeze dryers are widely used in the fields of biological engineering, pharmaceutical industry, food industry, chemical industry, materials science and deep processing of agricultural and sideline products. The freeze-dried material is easy to be stored for a long time, and after adding water, it can return to the state before lyophilization and maintain the original biochemical characteristics.

    Specification

    Model ATO-FD-O103 ATO-FD-O104 ATO-FD-G103 ATO-FD-G104
    Type Ordinary Gland-Type
    Capture Water Ability 3kg 4kg 3kg 4kg
    Freeze Area 0.12cm2 0.12cm2 0.08cm2 0.08cm2
    Plate Load Capacity 1.5L 1.5L 1L 1L
    Machine Dimension (W*D*H) (mm) 450*580*(380+450) 600*460*(720+450) 450*580*(380+450) 600*460*(720+450)
    Sample Tray Size 4*Φ200mm 4*Φ200mm 3*Φ180mm 3*Φ180mm
    Cold Trap Size Φ215*160mm Φ215*216mm Φ215*160mm Φ215*216mm
    Number of Schering Bottles Φ22: 260
    Φ16: 480
    Φ12: 920
    Φ22: 260
    Φ16: 480
    Φ12: 920
    Φ22: 165
    Φ16: 285
    Φ12: 560
    Φ22: 165
    Φ16: 285
    Φ12: 560
    N.W 80kg 110kg 85kg 115kg
    Power 950W
    Power Supply 220V/50Hz (or customize 110V/60Hz)
    Certification CE
    No-Load Temperature <-56℃
    Vacuum Degree <10Pa
    Interlayer Spacing 70mm

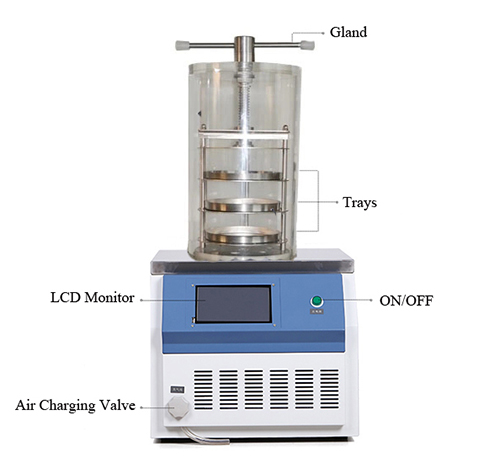

    Structure Diagram of Ordinary/Gland Type Vacuum Freeze Dryer Machine

    Structure Diagram of Ordinary/Gland Type Vacuum Freeze Dryer Machine

    Usage Steps of Vacuum Freeze Dryer Machine

    • Ordinary Freeze Dryer
    1. Remove the pre-frozen material plate from cold trap and quickly load it into drying rack. Place the drying rack over cold trap and cover it with plexiglass cover. Lower end of glass cover should make full contact with O-ring.
    2. Tighten the vacuum valve and press the vacuum pump button. Then the vacuum pump will work and the vacuum will drop rapidly. It is normal for vacuum degree to drop below 15Pa, at which point lyophilization begins.
    3. After 24 hours, materials have completely dry. Open the vacuum valve for inflation. Press the vacuum pump button to stop it. Press the vacuum gauge button and vacuum display disappears.
    4. Remove the plexiglass cover and remove material tray from drying rack. At this point, drying work of the ordinary freeze dryer is completed.
    • Gland-type Freeze Dryer
    1. Place the pre-frozen vial (in the tray) into gland drying rack. Place the rack over cold trap and cover it with gland plexiglass cover. Lower end of glass cover should make full contact with O-ring.
    2. Tighten the vacuum valve and press the vacuum pump button. Then the vacuum pump will work and the vacuum will drop rapidly. It is normal for vacuum degree to drop below 15Pa, at which point lyophilization begins.
    3. After material is completely dry, turn the handle above plexiglass cover to rotate gland ball screw in the cover to move the original plate down. Press bottle cap into bottle, stop the cap in vacuum.
    4. Inflate, turn off the pump, and remove the plexiglass cover. Remove the material bottle for storage.

    Application Area of Ordinary/Gland Type Vacuum Freeze Dryer

    Tips: Common faults and troubleshooting for vacuum freeze dryer.

    • Vacuum degree of the vacuum freeze dryer is unable to achieve less than 10Pa.
    1. Check the connection between vacuum pump and main body of the freeze dryer, and check whether the clamp is properly tightened.
    2. Check whether the vacuum pump works normally and observe whether the pump oil is clean.
    3. Check whether the vacuum valve is tighten.
    • Temperature of the vacuum freeze dryer cold trap is too high.
    1. Ambient temperature is too high and heat dissipation is poor.
      Please place the vacuum freeze dryer in a place with proper ambient temperature and good ventilation.
    2. If the refrigeration system is faulty, refer it to a professional technician for handling.
    • Oil leak from vacuum pump of vacuum freeze dryer.
    1. Check the freeze dryer fuselage and replace corresponding accessories.
