    Pedal Force Load Cell Sensor for Automotive, 1-200kg
    Picture of Pedal Force Load Cell Sensor for Automotive, 1-200kg
    Picture of Pedal Force Load Cell Sensor for Automotive, 1-200kg
    Picture of Pedal Force Load Cell Sensor for Automotive, 1-200kg
    Picture of Pedal Force Load Cell Sensor for Automotive, 1-200kg
    Picture of Pedal Force Load Cell Sensor for Automotive, 1-200kg

    Pedal Force Load Cell Sensor for Automotive, 1-200kg

    5 out of 5 based on 1 reviews | Write a review
    $212.35
    Discounted pedal force load cell sensor for sale, has a capacity range of 1-200kg, with optional ranges of 0-50kg, 0-100kg, and 0-200kg. Pedal load cell has a rated output of 1.0-1.5mV/V and a zero balance of ±2%F.S. Built with alloy steel, stainless steel, or aluminum alloy, pedal force load cell has an impedance of 700Ω and insulation of ≥5000MΩ/100VDC. Ideal for measuring pedal forces, brake force, and dynamic loads in automotive systems.
    *
    *
    *
    SKU: ATO-LC-TB002
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    The pedal force load cell sensor offers a capacity range of 1-200kg, with optional ranges of 0-50kg and 0-100kg. It delivers a rated output of 1.0-1.5mV/V with a zero balance of ±2%F.S. This sensor is perfect for measuring pedal forces, brake force, and dynamic loads in automotive applications.

    Specification

    Model ATO-DYTB-002
    Capacity 1-200kg (optional 0-50kg, 0-100kg, 0-200kg)
    Matched Transmitter ATO-LCTR-OA  (Click it to the transmitter page)
    Matched Display Controller ATO-DPM-DY800 (Click it to the controller page)
    Rated Output 1.0-1.5mV/V
    Zero Balance ±2%F.S.
    Non-Linearity 0.3%F.S.
    Hysteresis 0.3%F.S.
    Repeatability 0.1%F.S.
    Creep (30min) 0.05%F.S.
    Temp Effect on Output 0.05%F.S./10°C
    Temp Effect on Zero 0.3%F.S./10°C
    Response Frequency 10kHz
    Material Alloy Steel/Stainless Steel/Aluminum Alloy
    Impedance 700Ω
    Insulation ≥5000MΩ/100VDC
    Operating Voltage 5-10V
    Operating Temperature Range -20 to 70°C
    Safe Overload 150%
    Maximum Overload 200%
    Cable Specifications Φ3×2m
    Cable Ultimate Pull 10kg
    TEDS Optional (Contact customer service)


    Feature

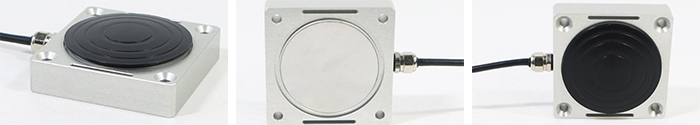

    Pedal force load cell sensor feature

    • Wide Measurement Range: Pedal force load cell sensor supports a measurement range of 0 to 200kg, suitable for various automotive applications.
    • High Precision: Ensures stable and accurate measurements with minimal lateral interference, making it highly reliable for testing.
    • Compact and Robust Design: Pedal force load cell has a low-profile structure that is easy to install and designed for high stability and durability.
    • Advanced Material: Made from lightweight aluminum alloy with excellent casting and machining properties, combining strength and versatility.
    • Specialized for Automotive Testing: Ideal for measuring pedal forces in vehicles, brake force, and dynamic load testing in automotive inspection systems.
    • Flexible Installation: Equipped with a fan-shaped structure for easy and adaptable mounting on vehicle pedals or other surfaces.
    • Broad Application Scope: Pedal load cell widely used in automotive pedal force testing, automation assembly lines, and other automated devices or testing fields.
    • Anti-Interference Design: Built to resist lateral forces and vibrations, ensuring consistent performance even in dynamic environments.

    Dimension (unit: mm)

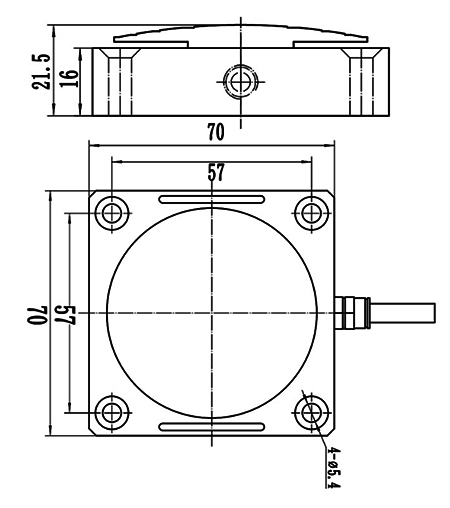

    Pedal force load cell sensor for automotive size

    Wiring Method

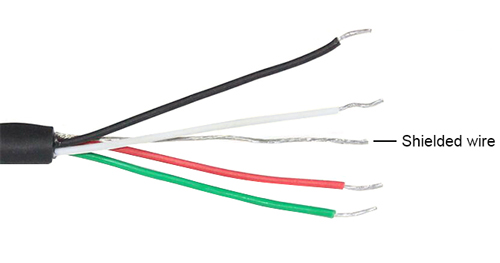

    Pedal load cell sensor wiring method 1

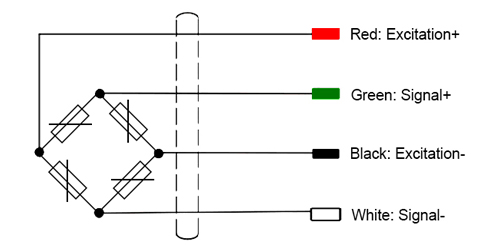

    Pedal load cell sensor wiring method 2

    Application

    Pedal force load cell sensor for automotive application

    Tips: What are the key applications of pedal force load cell sensor in the automotive industry?

    This load cell sensor is specifically designed for automotive applications. It is widely used in measuring pedal forces in vehicles to ensure compliance with safety and performance standards. The sensor is also ideal for brake force testing, helping to evaluate the effectiveness of braking systems under various conditions. In addition, it plays a critical role in dynamic load testing within automotive inspection systems, providing real-time data for performance analysis and quality assurance.

    How to Make Your Load Cell Transmitter Work More Accurately

    In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

    CHB Load Cell Controller Calibration | Compensation Factor Calculation

    In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

    How to Test for Faults in Load Cells?

    As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

    Cabled Tension Load Cell for Crane & Hoist Weighing Systems

    In this introduction video, we've covered what the TJL-7 is, its specifications and some of the benefits that make it unique. This crane weigher is a strain gauge based alloy steel tension load cell designed with openings at either end. It has a high accuracy (0.03-0.05 F.S.) over a large and wide measurement range from 2t to 200t. Environmentally sealed to IP67, the crane load cell can withstand up to 150% safe overload.

    Strain Gauge Load Cell, S Type

    In this video, ATO offers a variety of load cells and weigh modules designed for your applications.

    Existing reviews of Pedal Force Load Cell Sensor for Automotive, 1-200kg
    Widely applicable
    As a pedal force sensor designed specifically for the automotive industry, the Pedal Force Load Cell Sensor has brought me a stunning user experience. Firstly, its precision is impressive. Whether it is the force measurement on the brake pedal or accelerator pedal, the data is very accurate and responds quickly, fully meeting the automotive industry's demand for high-precision sensors.
    From: Jet | Date: 15/01/2025
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for Pedal Force Load Cell Sensor for Automotive, 1-200kg
    • Only registered users can write reviews
    • Bad
    • Excellent
    Related products

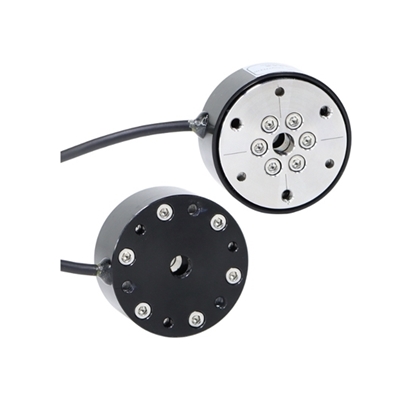

    6 Axis Load Cell, 20N/50N/200N, RS485

    6 Axis Load Cell, 20N/50N/200N, RS485

    $2,571.42
    SKU: ATO-LC-T45
    The 6 axis load cell sell at a low price, offer Fx/Fy/Fz ranges of 20N/20N/20N, 50N/50N/50N, and 200N/200N/200N, respectively, with corresponding Tx/Ty/Tz ranges of 0.5Nm, 2Nm, and 5Nm. Multi axis load cell has RS485 output. They provide exceptional accuracy, rated at ±0.5N, ±1N, and ±0.01N, and Z-axis ranges of 2-10kg, 0-5kg, and 10-50kg. RS485 output signals, load cells are constructed from durable aluminum alloy/17-4PH. Protected to IP65 standards and offer a robust overload capacity of 300%FS.
    Beam Load Cell, 10kg/20kg/30kg/50kg/100kg/200kg/500kg to 1000kg

    Beam Load Cell, 10kg/20kg/30kg/50kg/100kg/200kg/500kg to 1000kg

    $126.98
    SKU: ATO-LC-B01
    Beam load cell can bear both tension and pressure. It is a cantilever beam load cell with bellows. Beam load cell has good anti-eccentric load and anti-fatigue performance, with low height, all sealed structure and protection class IP68. Multi cantilever beam load cells are suited to use for static and dynamic weighing system, such as variable belt scale, hopper scale, flatform weighing scale, material testing machine and other force measurement and process control.
    Strain Gauge Load Cell, S type, 5kg/50kg/1000kg/3 ton to 20 ton

    Strain Gauge Load Cell, S type, 5kg/50kg/1000kg/3 ton to 20 ton

    $88.41
    SKU: ATO-LC-S01
    S type load cell can bear both tension and pressure, with good output symmetry, high accuracy, compact structure and complete specifications. Strain gauge load cell can be applied for batching scale, electronic-mechanical scale, crane scales and other force value measurement and control.
    Tension and Compression Load Cell, 100kg/2 ton to 20 ton

    Tension and Compression Load Cell, 100kg/2 ton to 20 ton

    $104.29
    SKU: ATO-LC-S05
    Tension and compression load cell can bear both tension and pressure, with good output symmetry, high eccentric load resistant, compact structure and complete specifications. Strain gauge load cell can be applied for batching scale, crane scales and other special weighing instruments.
