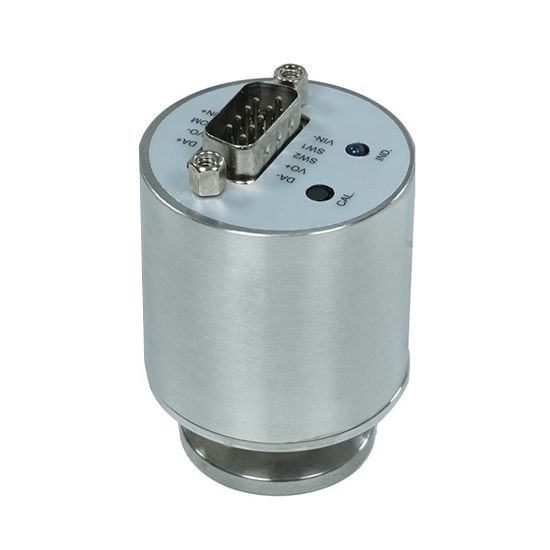

Pirani Compound Vacuum Gauge Sensor, Analog Output

Write a review

$1,372.33

Factory price compound vacuum gauge for sale online. It is composed of differential pressure MEMS piezoelectric sensor and Pirani sensor, with an integrated electronic control circuit, digital communication system, and analog voltage output, to achieve high-precision, high-repetition atmospheric pressure accessory pressure measurement.

SKU: ATO-VG-PRN11

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

High-precision Prani compound vacuum gauge sensor is equipped with a piezoelectric differential pressure unit and Pirani composite wide range, built-in temperature compensation, dual control point setting switch, one-button atmosphere/vacuum calibration, and voltage analog output.

Specifications

Model	ATO-CX-PRN11-A000
Measuring Range	5.0x10^-2 ~1.5x10⁺⁵ Pa
Accuracy	3.0x10³ ~ 1.5x10⁺⁵ Pa: ±1% Reading (MEMS Piezoresistive Section)
	1.0x10⁺⁰ ~ 3.0x10⁺³ Pa: ±15% Reading (Pirani Section)
	5.0x10^-2 ~ 1.0x10⁺⁰ Pa: ± 20% Reading (Pirani Section)
Repeatability	±1% Full Scale
Withstand Pressure (Absolute Pressure)	2.0x10⁺⁵ Pa
Response Time	100ms
Working Environment	Temperature 0℃~+50℃; Humidity 5... 85% (non-condensing)
Signal Output	(Default) Analog Output 0.0V ~ +10.3V DC, Minimum Impedance 10Ω
Signal Output	If you need RS485, switch output, or other outputs, please contact us.
Power Supply	+16V DC to +30V DC/0.5A, Maximum Power Consumption 1.5W
Vacuum System Connection	DN 16 ISO-KF (Default); Others (Contact Us).
Protection Level	IP40, IEC529
Vacuum System Connection	DN 16 ISO-KF (Default); Others (Contact Us)
Material In Contact With Vacuum	SS304, SS316L, Kovar, Tungsten Filament, Glass

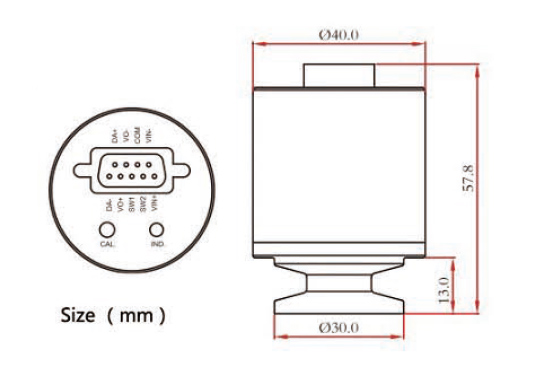

Dimension (Unit: mm)

Pirani sensor dimension

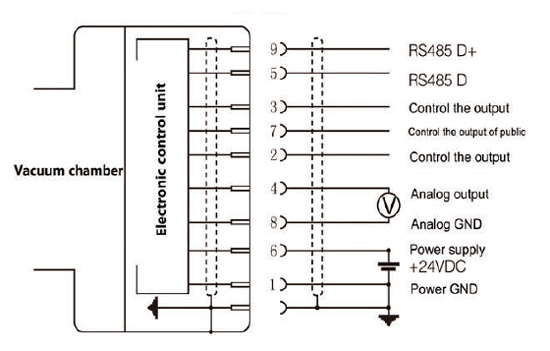

Pin Definition

Lectric Connection D-SUB 9 Needle (Male ) Plug

Pirani sensor pin definition

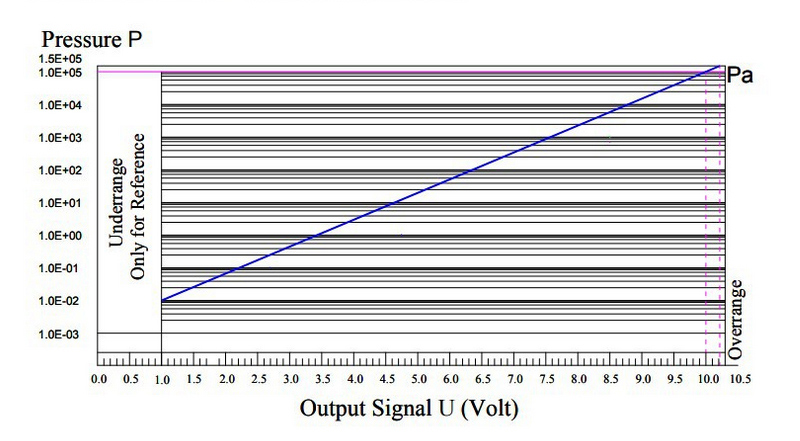

Pirani Sensor Analog Signal Output Diagram

Pin 4/Pin 8 of the D-Sub 9 connector provides the analog voltage value of the real-time vacuum degree.
Measurement signal range: +0.0V~+10.3VDC, 2.5mV resolution.

Pirani sensor analog signal output diagram

Applications

Tips: Types of Vacuum Gauges

Capacitance Manometers: These gauges measure pressure by detecting changes in capacitance between two conductive plates. They are highly accurate and can measure a wide range of pressures, from high to ultra-high vacuum.
Pirani Gauges: These gauges measure pressure based on the thermal conductivity of the gas. A heated filament's temperature changes with pressure, and this temperature change is used to determine the pressure. They are suitable for medium to low vacuum ranges.
Thermocouple Gauges: Similar to Pirani gauges, they measure pressure by detecting temperature changes in a heated filament, but they use a thermocouple for the temperature measurement. They are effective for medium vacuum applications.
Cold Cathode Ionization Gauges: These gauges use an electric field to ionize gas molecules. The resulting ion current is measured to determine pressure. They are suitable for high to ultra-high vacuum applications.
Hot Cathode Ionization Gauges: These gauges use a heated filament (cathode) to produce electrons that ionize gas molecules. The resulting ion current is used to measure pressure. They are used for high and ultra-high vacuum applications.
