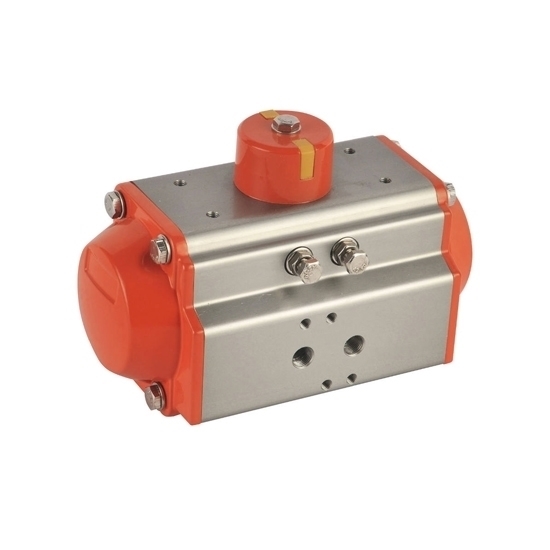

    Double Acting Pneumatic Valve Actuator, 63mm Bore Size

    $122.19
    Economical price pneumatic valve actuator is an aluminum alloy actuator that opens and closes ball valve and butterfly, powered by compressed air, air supply port 1/4 inch, bore size 63mm, air pressure 2.5bar ~ 8bar, max. working pressure 10 bar. Air operated actuator has small size and large torque, which is perfect for valve control.
    *
    SKU: ATO-AT-063D
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Pneumatic valve actuator is an executive device that uses air pressure to open and close ball valve, butterfly or regulating valve. The pneumatic actuator powered by compresses air is easy to repair and maintain, and has good adaptability to the environment.

    Specifiation

    • Model: ATO-AT063D
    • Bore Size: 63mm (2.48 inch)
    • Air Supply Port: 1/4 inch
    • Power Source: Compressed Air
    • Actuator Type: Double Acting
    • Air Pressure: 2.5bar ~ 8bar
    • Max Working Pressure: 10bar
    • Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
    • Rotation Angle: 90°±5%
    • Body Material: Aluminum Alloy
    • Life Time: One Million Time

    Dimensions

    Pneumatic actuator dimension

    ATO-AT063D

    Q A B C D E F G H I
    Φ36/Φ50mm 167mm 82mm 35mm 47mm 113mm 85mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    Details

    Pneumatic valve actuator details

    PN Number Name Standard Material
    1 4 Position Indicator Polypropylene+GF
    2 1 Position Indicator Seat Polypropylene+GF
    3 1 Snap Ring Stainless Steel
    4 1 Bearing Stainless Steel
    5 1 Bearing Polyphthalamide
    6 1 Bore Body Extruded Aluminum alloy
    7 2 Bearing Polyphthalamide
    8 2 Piston Die Cast Aluminum
    9 2 O-Ring Nitrile(NBR70)
    10 2 Bearing Polyphthalamide
    11 8 End Cover bolt gasket Stainless Steel
    12 2 End Cover bolt Stainless Steel
    13 2 Left and Right end Cover Die Cast Aluminum
    14 2 O-Ring Nitrile(NBR70)
    15 2 Guide Sleeve Polypropylene+GF
    16 1 O-Ring Nitrile(NBR70)
    17 1 Bearing Nylon46
    18 1 Bearing Polyphthalamide
    19 1 Cam Switch Stainless Steel
    20 1 Actuating Shaft Steel alloy
    21 1 Bearing Nylon46
    22 1 O-Ring Nitrile(NBR70)
    23 1 O-Ring Nitrile(NBR70)
    24 2 Spacer for Limit Bolt Stainless Steel
    25 2 Limit Nut Stainless Steel
    26 2 Limit Bolt Stainless Steel
    27 min.5/max.12 Spring High alloy Spring Steel
    28 1 Spring Seat Polypropylene+GF

    Tips: How to choose a pneumatic valve actuator?

    Before choosing a pneumatic valve actuator, please confirm the valve torque. And increase the safety value on the torque, water vapor or non-lubricating liquid medium increases the safety value by 25%; non-lubricating slurry liquid medium increases the safety value by 30%.

    When the valve torque is 210NM, the air source pressure is only 5bar, and the medium is non-lubricated water vapor, considering the safety factor, increase the safety value by 25%, which is 262NM, and find the corresponding torque when the air source pressure is 5bar according to the double-acting output torque table.

    Double Acting Pneumatic Valve Actuator Output Torque Table

    Unit: Nm


    Model Standard 3bar 3.5bar 4bar 4.5bar 5bar 5.5bar 6bar 7bar 8bar
    ATO-AT032D 3.6 4.3 5 5.7 6.4 7.3 8 8.7 10 11.6
    ATO-AT050D 8.4 10.1 11.7 13.5 15.1 16.7 18.4 20 23.4 26.7
    ATO-AT063D 14.8 17.7 20.6 23.6 26.5 29.4 32.3 35.3 4101 47
    ATO-AT075D 29.2 35 40.8 46.6 52.5 58.3 64.1 69.9 81.5 93.2
    ATO-AT088D 45.9 55 64.2 73.3 82.5 91.6 101.1 110.1 128.1 146.1
    ATO-AT100D 66.8 80.1 93.4 106.3 120.3 133.3 146.3 160.3 183.3 213.3
    ATO-AT125D 139 167 195 223 250 278 303 333 389 444
    ATO-AT145D 217 261 304 348 391 434 478 521 608 695
    ATO-AT160D 285 341 398 455 512 577 625 682 795 909
    ATO-AT190D 533 639 746 852 976 1065 1171 1277 1490 1703
    ATO-AT240D 893 1072 1250 1430 1608 1787 1965 2144 2502 2859
    ATO-AT270D 1306 1565 1824 2084 2343 2603 2862 3121 3640 4159
