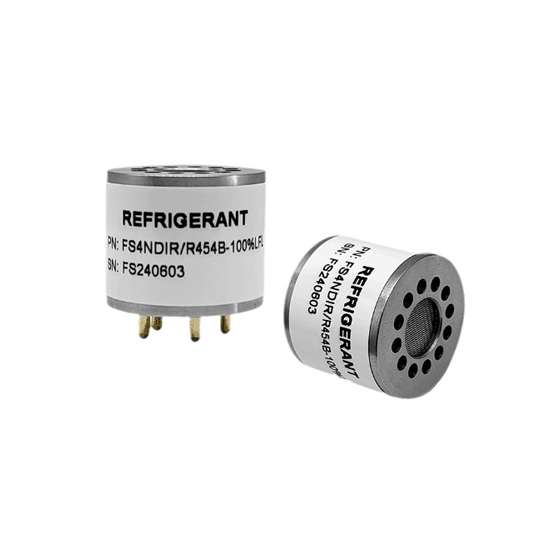

NDIR Refrigerant Gas Sensor, 0~100%LFL

This refrigerant R454B/R290 sensor uses NDIR technology to detect 0~100% LFL with 1% resolution and ±3.75% accuracy. It features fast T90 ≤30s response, low power consumption, and a 10-year lifespan, ideal for refrigerant leak detection and HVAC systems.

Specification

Feature

• Low Power Consumption: Designed for low power usage, ensuring extended operational lifespan.
• Strong Anti-Interference Capability: Excellent resistance to interference, equipped with temperature compensation for stable performance.
• Moisture Resistance: Effectively resists water vapor interference and is non-toxic for long-term reliability.
• Linear Output: Provides exceptional linear output for precise and consistent measurements.
• Long Service Life: Durable design with a lifespan of up to 10 years, minimizing replacement needs.
• High Accuracy: Dual-channel design ensures high precision and stability with no drift over time.

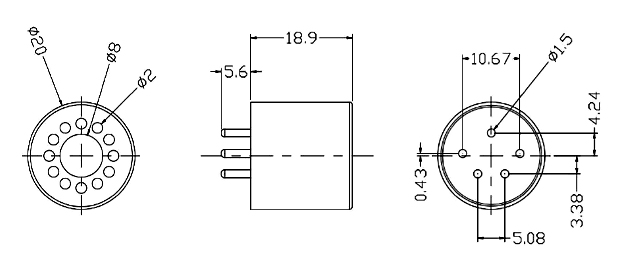

Size (Unit: mm)

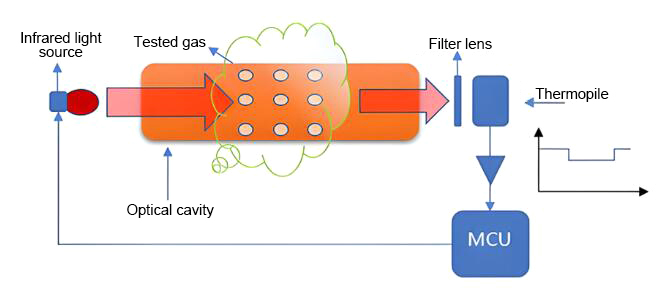

Working Principle

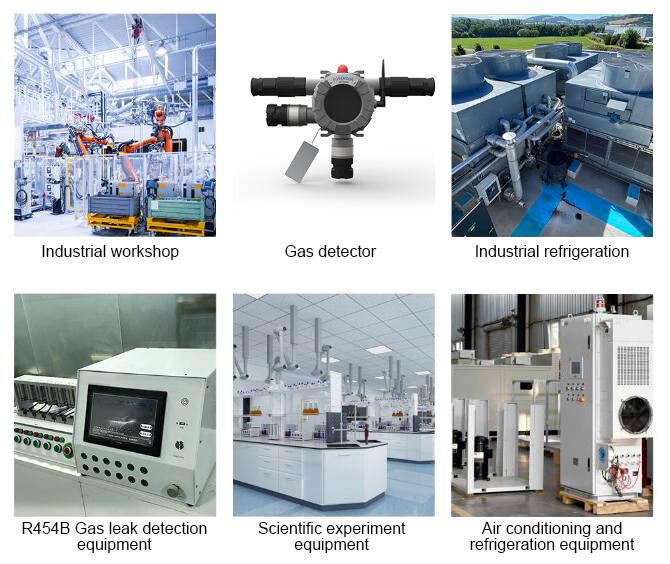

Application

Tips: Why is this sensor suitable for HVAC monitoring and refrigerant leak detection?

This refrigerant gas sensor is ideal for HVAC monitoring and refrigerant leak detection due to its precise NDIR technology, which accurately measures hydrofluorocarbon (HFC) concentrations while remaining unaffected by oxygen levels or moisture. Its 0~100% LFL detection range, 1% resolution, and fast T90 ≤30s response ensure quick identification of even small leaks, preventing inefficiencies, environmental harm, and safety risks. Designed to operate in a wide range of temperatures (-20°C to 70°C) and humidity (0~95% RH), the sensor is reliable in diverse environments. Its low power consumption (<85mA) supports continuous monitoring with minimal energy costs, while the 10-year lifespan and compatibility with serial port and DAC outputs make it easy to integrate into automated HVAC systems, enhancing safety and efficiency.
