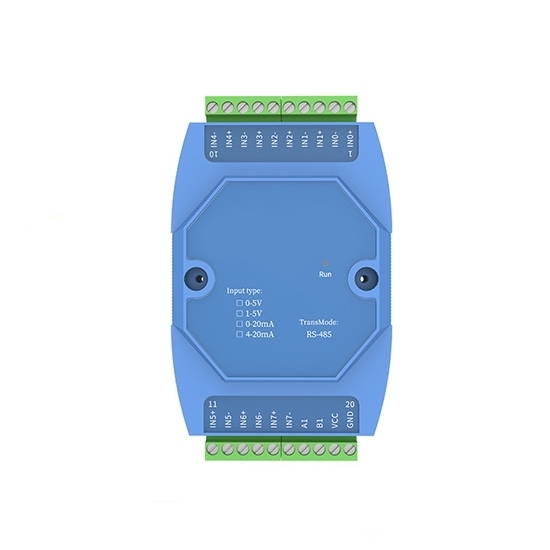

4-20mA/0-5V to RS485 Converter, 8 Channel

The compact and powerful 4-20ma to RS485 converter supports a wide range of input signal types (4-20mA and 0-5V), which is especially suitable for complex industrial field applications. The device supports a wide voltage supply range of 5-30V, flexibly adapting to different power supply environments. Its programmable calibration mode and multiple communication calibration modes allow users to easily configure the device according to actual needs.

Specification

Features

1. Multi-functional Analog Inputs: Supports 8 analog inputs, compatible with 4-20mA current signals and 0-5V voltage signals, meets the acquisition needs of a variety of industrial scenarios with high flexibility.
2. High Precision and High Resolution: Adopting 12-bit AD conversion resolution, it has 0.1% high precision data acquisition capability, ensuring accurate and reliable signal measurement, and providing high quality data even in complex applications.
3. Standardized Communication Protocol: Built-in ModBus-RTU protocol in line with industrial standards, fast and stable communication through RS485 interface, support for multi-node applications, ensuring system compatibility and expandability.
4. Comprehensive Protection Design: Equipped with communication operation indicator and anti-dead watchdog function, as well as RS485 communication interface with lightning protection and anti-static protection, supporting operation and amplification signal isolation to ensure stable and safe equipment operation.
5. Flexible Configuration and Multiple Protection: Each input can be independently set to current or voltage type through the configuration software, supporting the free adjustment of address, baud rate, check digit and other parameters, while providing anti-reverse connection, over-voltage, over-current and short-circuit protection, to ensure the reliable operation of the equipment in a variety of environments.

Analog Correspondence Table

Applications

Tips: 8-channel RS485 converter in the installation and use of precautions

When installing, please make sure the module converter is connected stably and the wiring ports correspond correctly. In order to avoid signal interference, it is recommended that the analog signal lines and power lines be wired separately. The device supports standard DIN rail mounting, which is convenient to integrate with the control cabinet. When supplying power, please choose a stable power supply to avoid affecting the performance due to voltage fluctuation. In addition, during use, ensure that the RS485 converter operates within the specified temperature and humidity ranges to extend its service life.
