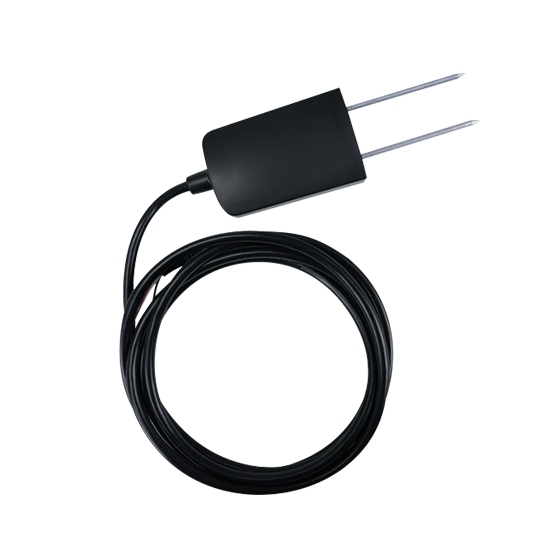

Soil pH Sensor for Agriculture, RS485/4–20mA

Designed for direct insertion, this soil pH sensor provides reliable monitoring for agricultural applications, with a durable probe and flexible outputs for easy system integration.

Specification

Feature

• Alloy Probe: Soil pH Sensor is made of 316 stainless steel and special alloy, resistant to rust, electrolysis, and salt-alkali corrosion, suitable for various soil types.
• IP68 Protection: Fully epoxy-encapsulated for waterproof and dustproof performance, ensuring long-term reliability.
• High-Sensitivity Chip: The soil pH sensor features low power consumption, stable signal, and strong anti-interference capability.
• Remote Monitoring: Enables real-time soil condition monitoring, supporting efficient and precise agricultural management.
• Wide Operating Range: The soil pH sensor operates at temperatures from -20°C to 60°C, with a measurement range of 3–9 pH for versatile applications.
• Multiple Output Options: Supports 0–5V, 0–10V, 4–20mA, and RS485 outputs for flexible system integration.
• Easy Installation: The soil pH sensor’s direct insertion design allows quick and convenient deployment in the soil.

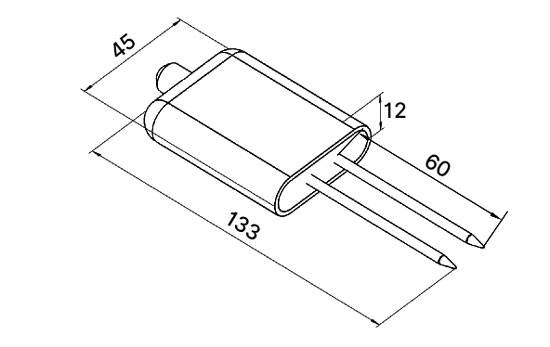

Size (unit: mm)

Wiring

Wiring for Transmitter Output

Wiring for RS485 Output

Note: The specific wiring method should be based on the actual user manual.

Tips: How to properly use the soil pH sensor?

1. The soil pH sensor’s steel probe must be fully inserted into the soil during measurement.
2. Avoid direct sunlight on the sensor to prevent overheating. Take precautions against lightning when used outdoors.
3. Do not bend the steel probe forcefully, pull the sensor cable, or drop/strike the soil sensor.
4. With an IP68 protection rating, the sensor can be fully submerged in water.
5. Due to the presence of RF electromagnetic radiation in the air, the soil pH sensor should not remain powered on for extended periods outside the soil.
