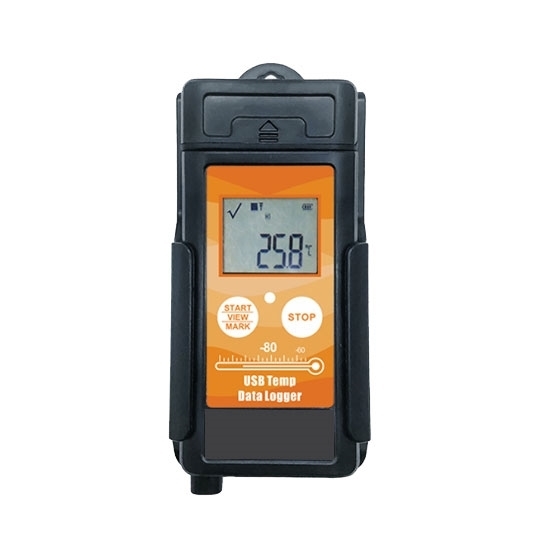

    USB Temperature Data Logger with LCD Display

    5 out of 5 based on 1 reviews | Write a review
    Multi use temperature data logger with LCD display for sale, build-in temp sensor for low temperature condition, measuring range from -80℃ to +70℃, can be connected with computer’s USB port to automatically generate PDF and CSV report. It is used in medical, storage, freezer and shipping.
    SKU: ATO-TDL-U06
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 20-30 days

    Low cost temperature data logger has LCD display which shows you the real time data. The temp date recorder is a simple and reliable focused on temperature recording in pharmaceuticals, vaccines and food storage, etc.


    Model ATO-TDL-U06
    Usage Type Multi-use
    Recording Mode Push-To-Start or Timing Start
    Communication Interface USB 2.0
    Sensor Internal Temperature Sensor
    Measuring Range -80℃ ~ +70℃
    Temperature Accuracy ±0.5℃
    Temperature Resolution 0.1℃
    Data Storage Capacity 32000
    Logging Interval Programmable (10s ~ 18h) [Default: 10mins]
    Alarm Range Programmable [Default: <2℃ or >8℃]
    Alarm Delay Programmable (0 ~ 960mins) [Default: 10mins]
    Alam Delay Programmable (0 ~ 254mins) [Default: 30mins]
    Battery Typically 1.5 years, ER14250 Lithium Battery (Replaceable)
    Report Generation Automatic PDF/CSV Report Generation
    Software Temp (RH) Management Software (For Windows, 21 CFR 11 Compliant)
    Waterproof Level IP65
    Demension 115mm * 50mm * 20mm
    Net Weight 100g

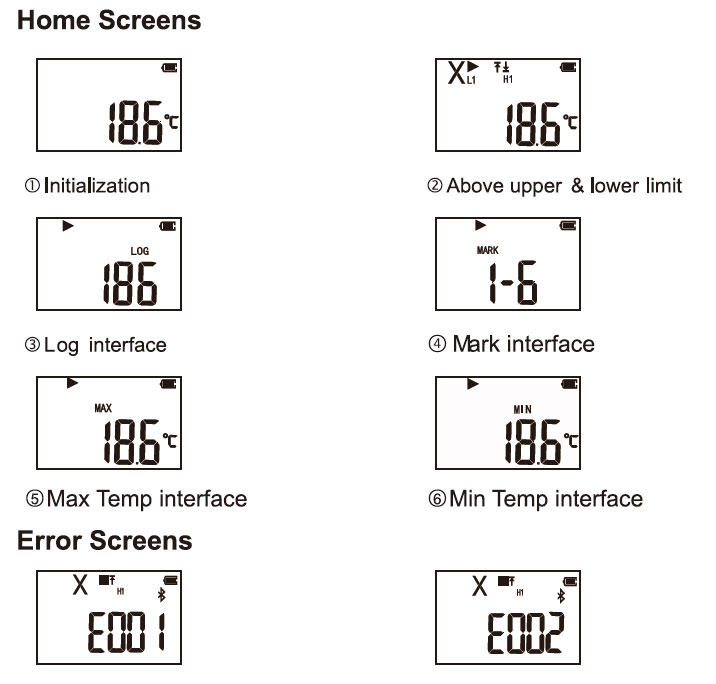

    LCD Display

    LCD Display of USB Temperature Data Logger

    If there E001 or E002 on the screen, please check:

    • If the sensor is not connected or broken
    • If over the temperature detect range


    Applications of USB Temperature Data Logger

    Tips: USB temperature data logger for vaccine storage and transportation

    In the cold chain storage and transportation of vaccines and other biological products, it can ensure the quality of the vaccine and effect of immunization through monitoring the temperature of the environment in which it is located. The monitoring and management of cold chain system is an essential to ensure the quality of vaccine. Different vaccines have different requirement of environment temperature in storage and transportation. In order to ensure the safety of vaccines during storage and transportation, it must to fully automatic detect and record the ambient temperature without any human factors to improve data reliability. High quality and high precision temperature data logger can perfectly meet this requirement, because it can record data for a long time without external power supply. ATO USB temperature data logger integrates temperature sensing technology, computer communication technology, solid state storage technology and database technology, which aims at the design of cold chain system to reasonably solve temperature logging problem in refrigerated storage and transportation. It can be put in cold car and cold storage any corner and automatically record temp changes in the environment. After recording, you can connect with computer’s USB port to get PDF and CSV report for data analysis.
