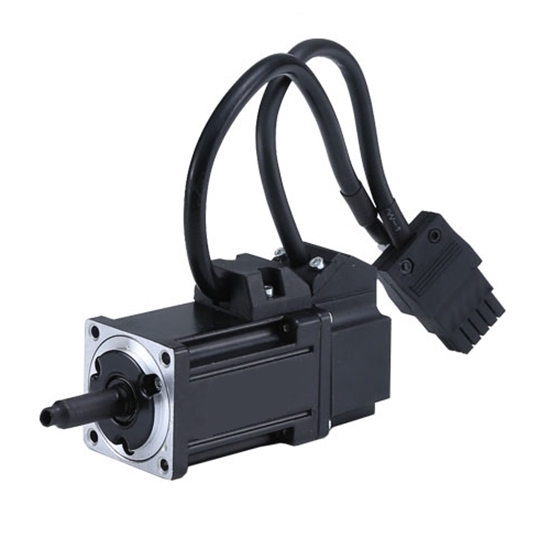

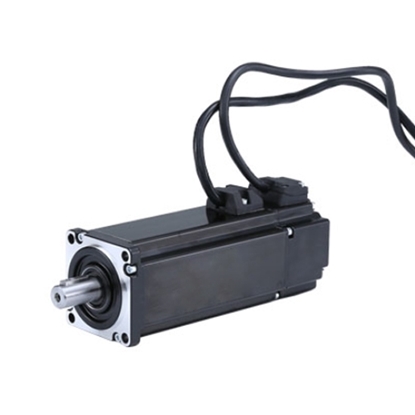

    100W Brushless AC Servo Motor, 3-phase 220V

    5 out of 5 based on 2 reviews | Write a review
    $416.54
    Three phase 100 watt AC electric servo motor at affordable price, brushless design, rated torque of 0.32 Nm, 220V rated voltage, rated speed of 3000 rpm, IP65 for body, long life and high precision.
    *
    *
    *
    *
    *
    SKU: ATO40ST-M00330220
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    100W AC brushless servo motor, 1-phase or 3-phase 220V AC voltage, 3000 rpm high speed, 0.32 Nm rated torque, peak torque to 0.64 Nm, 2,500 PPR incremental / absolute encoder attached. Low cost industrial servo motor, manufacturer direct sale.

    Specification

    Basics Model ATO40ST-M00330220
    Matched Drive Model ATOMG-1000 (Click it to the product page)
    Square Flange Size 40 mm
    Rated Power 100 W
    Rated Voltage single phase or three phase 220V AC
    Rated Current 0.6 A
    Rated Speed 3000 rpm
    Rated Torque 0.32 Nm
    Peak Torque 0.64 Nm
    Weight 0.47 Kg
    Length 90 mm
    Technical Parameters Voltage Constant 36.8 V/ 1000r/ min
    Torque Coefficient 0.53 N.m/ A
    Torque Inertia 0.051 x 10-4 Kg.M2
    Line-Line Resistance 34 Ω
    Line-Line Inductance 40 mH
    Electrical Time-Constant 1.18 ms
    Encoder Line Number 2500 PPR
    Absolute Encoder 17 bit, 23 bit (Tamagawa brand)
    Insulation Class Class B
    Safety Class IP65
    Environment Temperature -20℃ ~ +40℃
    Humidity <90%RH, (no dewing)

    Dimension (unit=mm)

    100 watt servo motor 40mm dimension

    L (without brake): 90mm, L (with brake): 124mm

    Details

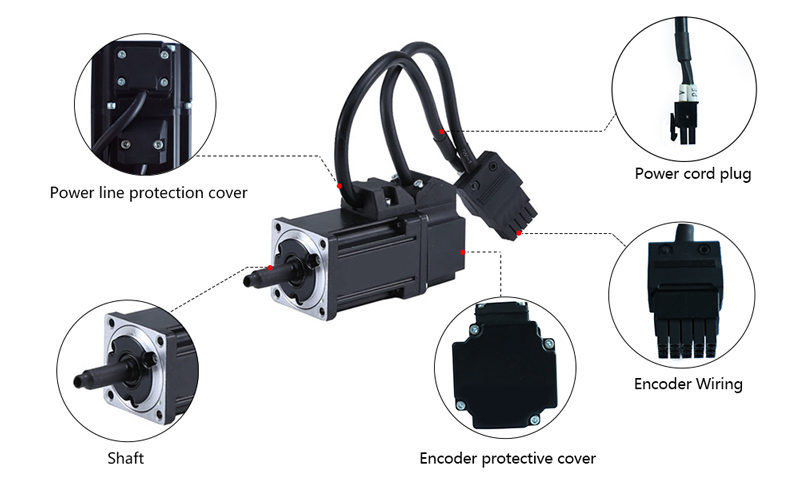

    100W AC Servo Motor Details

    Winding and Encoder Connection

    1. For servo motor winding

    Motor Winding Plug Incremental Encoder Line U (Red) V (Brown) W (Green) PE (White)
    Absolute Encoder Line PE (White) U (Red) V (Green) W (Brown)
    Socket Number 1 2 3 4

    2. For incremental encoder

    Incremental Encoder Socket (15 Pin) Signal Definition 5V 0V B Z- U Z U- A V W V- A- B- W-
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15

    3. For absolute encoder

    Absolute Encoder Socket (7 Pin) Signal Definition E- E+ SD- 0V SD+ 5V PE
    Socket Number 2 3 4 5 6 7 1


    This video briefly shows the application of the ATO servo system in a linear slide.

    ATO servo motor has 40mm to 180mm different square flange size, power rating from 50W to 7.5kW and speed range from 1000 rpm to 3000 rpm. so you can select the best one for your applications. In this video, ATO will show you servo motor linear actuator system for robotics.

    In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

    How to unlock the servo drive timing lock?

    In this video, the process of unlocking the servo drive timing lock is demonstrated.

    How to Connect the Servo Motor Controller and Set the JOG Mode?

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo drive and how to set the JOG mode.

    How to Use the Position Control Method of the Servo Motor(through PLC Pulse Control)?

    The video introduces the connection and control (position control method) between PLC and ATO servo motor system.

    Existing reviews of 100W Brushless AC Servo Motor, 3-phase 220V
    Questions about servo motor
    Can a hmi be added to your AC servomotor drive for simple setup parameter changes and any recommendations?
    From: Campion | Date: 03/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, HMI can be added to our drive, and in that case it requires a PLC to support.
    Also, our drive can provide RS-485 communication or CAN communication.
    Questions about 100W 3000rpm brushless AC servo motor
    Can one drive control 2 servo motors? And Does your servo motor box incorporate cables?
    From: Detzel | Date: 16/03/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    A servo drive can only drive one servo motor. Yes, we provide cables along with servo motor.
