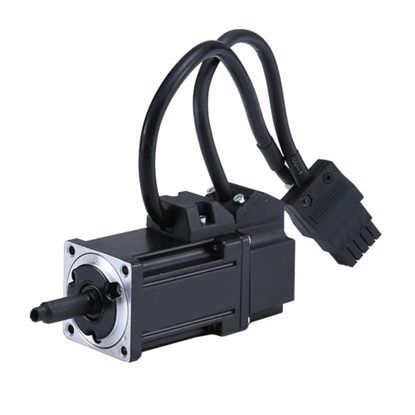

    50W AC Servo Motor, Brushless, 0.16Nm, 3000rpm

    5 out of 5 based on 2 reviews | Write a review
    $384.15
    Cheap price 50 watt AC brushless servo motor is 3000 rpm, 1-phase or 3-phase 220V AC voltage, 0.16 Nm rated torque, peak torque values up to 0.32 Nm, provide excellent dynamic response, and equipped with a 2,500 PPR incremental encoder.
    SKU: ATO-SERVO-40S50
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    50W AC servo motor for sales, brushless design, rated speed of 3000 rpm, maximum speed up to 3600 rpm. High speed servo motor is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

    Specification

    Basics Model ATO40ST-M00130220
    Matched Drive Model ATOMG-1000
    Square Flange Size 40 mm
    Rated Power 50 W
    Rated Voltage single phase or three phase 220V AC
    Rated Current 0.4 A
    Rated Speed 3000 rpm
    Rated Torque 0.16 Nm
    Peak Torque 0.32 Nm
    Weight 0.32 Kg
    Length 75 mm
    Technical Parameters Voltage Constant 36.8 V/ 1000r/ min
    Torque Coefficient 0.4 N.m/ A
    Torque Inertia 0.025 x 10-4 Kg.M2
    Line-Line Resistance 108 Ω
    Line-Line Inductance 108 mH
    Electrical Time-Constant 1.0 ms
    Encode Line Number 2500
    Insulation Class Class B
    Safety Class IP65
    Environment Temperature -20℃ ~ +40℃
    Humidity <90%RH, (no dewing)

    Dimension (unit=mm)

    servo motor 40 dimension

    L (without brake): 75mm, L (with brake): 109mm

    Servo Motor Encoder Connection

    Motor Winding Plug Incremental Encoder Line U (Red) V (Brown) W (Green) PE (White)
    Absolute Encoder Line PE (White) U (Red) V (Green) W (Brown)
    Socket Number 1 2 3 4
    Incremental Encoder Socket (15 Pin) Signal Definition 5V 0V B Z- U Z U- A V W V- A- B- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

    Absolute Encoder Socket
    (7 Pin)

    Signal Definition E- E+ SD- 0V SD+ 5V PE
    Socket Number 2 3 4 5 6 7 1

    Tips: ATO AC brushless servo motor advantages

    1. Accuracy: ATO AC servo motors achieve the position, speed and torque of the closed-loop control; to overcome the problem of stepper motor out of step.
    2. Speed: High speed performance, the general rated speed can reach 2000 ~ 3000 rpm.
    3. Adaptability: ATO servo motors with strong anti-overload capability, can withstand three times the rated torque of the load, the instantaneous load fluctuations and the requirements of quick start occasions particularly applicable.
    4. Stable: Our AC brushless servo motors have smooth low-speed operation, low-speed operation does not produce similar to the stepping motor stepper operation. For high speed response requirements of the occasion.
    5. Timeliness: Motor acceleration and deceleration of the corresponding dynamic time is short, usually within a few tens of milliseconds.
    6. Comfort: Fever and noise significantly reduced.

    How to wire ATO servo driver and set Jog mode

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo driver and how to set the JOG mode.

    Introduce of servo motor analog control

    This video introduces the analog control of ATO servo motor, as well as its position control mode (pulse type), torque control mode, to achieve the purpose of rapid adjustment.
