12 Position DIP Switch, 24 Pin, SPST

5 out of 5 based on 2 reviews | Write a review

$10.49

Mini 12 position side DIP switch at factory price, SPST loop, pin spacing 2.54mm, surface mount, small size and light weight. It is a dual in-line package switch which can be mounted on a PCB, breadboard or motherboard to switch on or off circuits.

Color *

SKU: ATO-DIP-12P

This product has a minimum quantity of 10

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video
Proposition 65 Warning

Dual inline package switch (DIP switch) is designed to hold configurations and select the interrupt request for motherboards or breadboard. This small DIP switch with 12 push buttons also can be used to activate or deactivate different electronic circuits.

Specification

Model		ATO-DIP-12P
Spacing		2.54mm
Number of Switch		12
Number of Pin		24
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg

Dimensions (Unit: mm)

Dimensions of 12 Position 24 Pin SPST DIP Switch

Tips:

Each position of the DIP switch has two pins on the top and bottom of the back. When it is turned to the ON side, the two pins on the bottom are connected. Otherwise, it is disconnected. Each position is independent and not related to each other. This components are mostly used for binary coding.

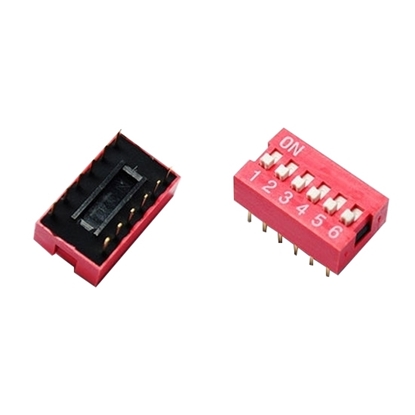

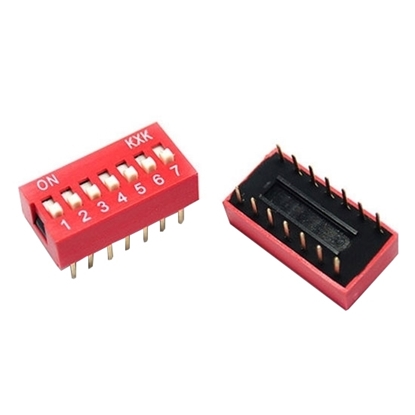

Miniature DIP switches are available with 1 to 12 positions plus corresponding numbers of pins for selection. They are equipped with SPST loop and allow users to control the flow of electricity around a PCB. Red and blue types are available.
