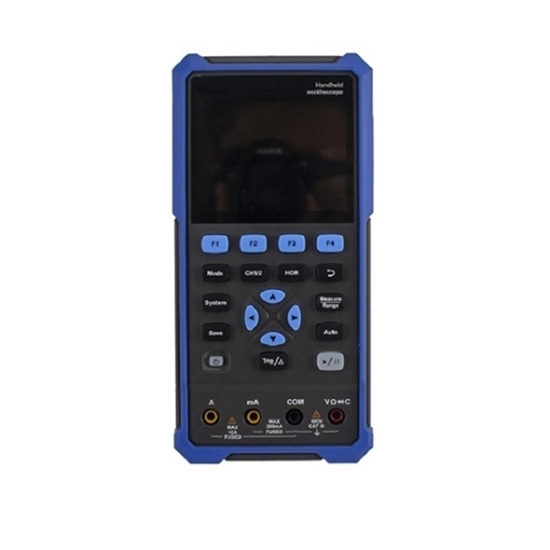

    200 MHz Handheld Oscilloscope, 1 GSa/s, 2 Channels

    High accuracy 2-channel handheld oscilloscope with 200 MHz bandwidth, 1 GSa/s sample rate, 8K record length, 8 bits vertical resolution. 200 MHz digital oscilloscope can capture of instantaneous or abnormal signals for accelerating signal analysis and fault tracing.
    SKU: ATO-HO-200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

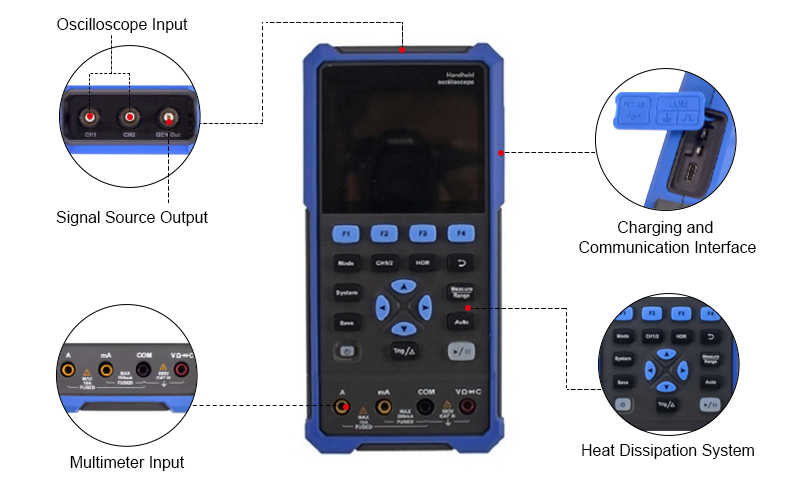

    200 MHz dual channel handheld digital oscilloscope with1 GSa/s sample rate, max. waveform capture rate up to 10,000 wfms/s. Digital handheld oscilloscope has two acquisition modes, high refresh, deep storage, 7 kinds of auto measurement, cursor measurement function and save function.


    Performance Characteristics

    Model ATO-HDS2202
    Bandwidth 200MHz
    Channel 2 channel
    Sample rate 1 GSa/s
    Acquisition model Sample, Peak detect
    Record length 6K
    Display 3.5 inch LCD
    Waveform refresh rate 10000 wfrms/s
    Input coupling DC, AC, Ground
    Input impedance 1 MΩ±2%, in parallel with 16 pF±10 pF
    Probe attenuation 1X,10X,100X,1000X
    Max. input voltage 400V (DC+AC, PK - PK)
    Bandwidth limit(typical) 20MHz / Full bandwidth
    Sampling rate range

    2ns/div - 1000s/div, step by 1- 2- 5

    Sensitivity Resolution 10mV/div~10V/div
    Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
    Rise time (at input, Typical) ≤8ns
    Trigger type Edge
    Trigger model Auto, Normal, single
    Trigger level range ±4 div from the screen center
    Automatic measurement Period, Frequency, Mean, PK-PK, Max, Min
    Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
    Communication interface USB Type-C

    Digital Multimeter Specification

    Full-scale reading 4.5 digitals (max 20000 count)
    Testing Modes

    Voltage, Current, Resistance, Capacitance, Diode, Continuity

    Maximum Input Voltage AC 750V, DC 1000V
    Maximum Input Current DC: 10A, AC: 10A
    Diodes Test 0-2V


    • Quick Guide
    • USB Cable
    • Probe
    • Probe Adjust
    • Multimeter
    • Lead
    • BNC plug to alligator clips cable
    • Soft Bag

    Dimension (mm)

    Handheld oscilloscope

    Tips: What are the functions of a handheld oscilloscope?

    The handheld oscilloscope is a digital storage oscilloscope, digital multimeter and recorder functions in one test measurement instrument, its battery-powered form, the handheld oscilloscope is a practical new instrument in the field of electronic measurement.
    The traditional handheld oscilloscope is required to observe the two electrical signals added to the oscilloscope X, Y to control the offset of the electronic instrument to carry out, thus also obtaining the fluorescent screen on the relationship between the two electrical signals on the displayed waveform. Obviously, the size of this analog handheld oscilloscope is very large, so it also brings some trouble to the staff in operation.
    Nowadays, the handheld oscilloscope has become very popular, its small size, and simple and convenient operation can bring convenience to many users. Therefore, the digital oscilloscope (handheld) that we use today is very common and recognized by people. We also believe that in the future, there will be more good products out to serve people.
