    50 hp (37 kW) AC Line Reactor, 3 Phase Output

    50 hp AC output vfd line reactor at a low price, high quality, voltage 220V, 380V, 400V, 410V, 440V, 460V and 480V are optional, 90 amps, aluminum and copper materials can be selected, with 12 months warranty.
    SKU: ATO-OLR-037
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days
    ATO 50 hp line output reactor at a comfartable price, rated current with 90A, available voltages are 220V, 380V, 400V, 410V, 440V, 460V or 480V. 37 kW 3 phase reactor with high quality and direct sales by manufacturers.

    3-Phase Line output Reactor Specifications

    Basic Model ATO-OCR-0090-078U-0.4SC
    Recommended VFD Model GK3000-4T0370G (50 hp three phase VFD)
    Phase 3 Phase
    Power 50 hp (37 kW)
    Weight 10 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 90 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.078 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    50 hp 3-Phase Output Line Reactor Mounting Dimension

    15hp (11kW) 3 phase line reactor

    L D W W1 H A×B
    195 120 135 72 165 8.5×20

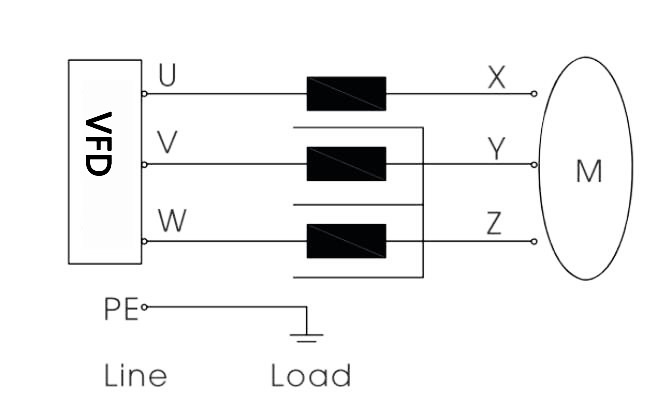

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram
    Tips: Why choose ATO output reactor?

    The ATO output reactor is an iron core dry type iron core made of high-quality low-loss cold-rolled silicon steel sheet, punched by a high-speed punch, with small burrs, uniform rules, neat and beautiful laminations, low temperature rise and low noise during operation.

    The AC line reactor coil adopts high-quality insulated wire, wound by a special machine, which has the advantages of good flatness and beautiful appearance.

    The iron core column of the three-phase reactor is divided into even small pieces by multiple air gaps. The air gap uses high-temperature and high-strength connecting glue to tightly bond each small section of the core column with the upper and lower yokes.

    During the assembly process of the reactor, all clamps are treated with anti-corrosion treatment, and the key clamps are made of non-magnetic materials, and are pre-baked-vacuum dipping-heat curing and other processes, so that the coil and iron core of the filter reactor are firmly integrated. Reduce the temperature rise and noise during operation, and effectively improve the quality of the reactor.

    The filter reactor has the advantages of small size, light weight, beautiful appearance and convenient wiring.
