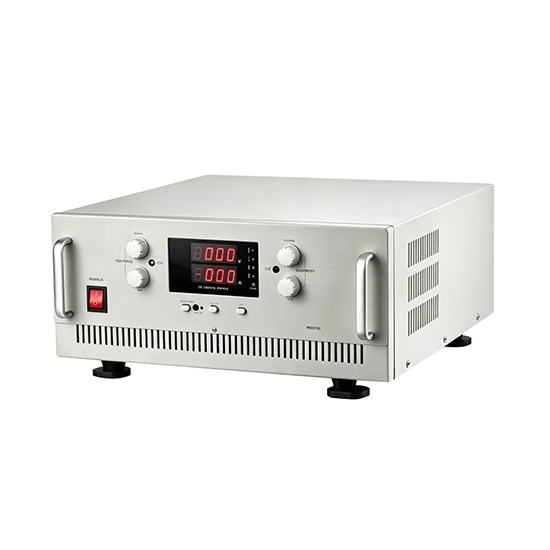

60A 100V 6000W Variable DC Power Supply

$2,630.68

6000W variable DC power supply with 0–100V output voltage and 0–60A output current, single-phase AC 220V input, digital voltage and current displays, potentiometer adjustment, and built-in overvoltage, overcurrent, and overtemperature protection.

Input Voltage *

Single Phase 220V AC
Single Phase 110V AC [+$588.97]

SKU: ATO-VDCPS10060K

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Adjustable DC power supply designed for stable and flexible power control, with independent voltage and current adjustment via potentiometers. Features 3½-digit digital metering, forced-air cooling, and comprehensive protection against overload, short circuits, overvoltage, and overheating.

Specification

Model	ATO-JK10060K
Input Voltage	Single Phase 110V or 220V AC (±10%)
Input Frequency	50/60 Hz
Output Voltage	DC 0–100V
Output Current	0–60A
Output Power	6000 W
Power Supply Stability	≤0.5% + 10 mV
Load Regulation	≤0.5% + 30 mV
Ripple	≤1% + 10 mV RMS
Voltage Display	3½-digit digital meter; Accuracy: ±0.5% FS + 1 digit (10%–100% of rated value); Display range: 00.0–100.0V
Current Display	3½-digit digital meter; Accuracy: ±0.5% FS + 1 digit (10%–100% of rated value); Display range: 00.0–60.0A
Insulation Resistance	Input-Output: ≥20 MΩ; Input-Case: ≥20 MΩ; Output-Case: ≥80 MΩ
Dielectric Strength	Input-Output: AC 1500V, 10mA, 1 minute; Input-Case: AC 1500V, 10mA, 1 minute; Output-Case: AC 1500V, 10mA, 1 minute
Overvoltage Protection	Built-in OVP; protection threshold: rated output voltage +5%
Overcurrent Protection	Constant-current output under overload and short-circuit conditions
Overtemperature Protection	Built-in OTP; protection threshold: 85°C ±5°C (heatsink temperature)
Voltage and Current Adjustment	Potentiometer
Output Polarity	Positive (+) and negative (-) outputs can be grounded independently
Cooling Method	Forced-Air Cooling
Operating Environment	Indoor use; Temperature: -10°C–60°C; Humidity: 10%–85% RH
Storage Environment	Temperature: -20–70°C; Humidity: 10%–90% RH
Size	430 (L) x 450 (W) x 180 (H) mm
Weight	28kg

Note: All values are typical and may vary under different load conditions or operating circumstances. Accuracy is measured under load-side voltage sensing conditions. Deviations from rated values may occur due to temperature variations and component aging.

Feature

High-Power DC Output: The 6000W power supply provides stable and reliable DC power for demanding electronic equipment, testing systems, laboratory setups, and other high-power applications.
Independent Voltage & Current Adjustment: Separate controls allow you to fine-tune the output voltage and current according to different load and testing requirements.
Automatic CV/CC Mode: Automatically switches between constant voltage (CV) and constant current (CC) operation to maintain regulated output as load conditions change.
Stable, Low-Ripple Output: Delivers clean and consistent DC power with low ripple, making the unit suitable for sensitive electronic circuits and precision testing applications.
Built-In Protection: Overvoltage, overcurrent, short-circuit, and overtemperature protection help safeguard the power supply and connected equipment during abnormal operating conditions.
Digital Monitoring: The adjustable DC power supply features 3½-digit digital meters for clear, real-time monitoring of output voltage and current.

Detail

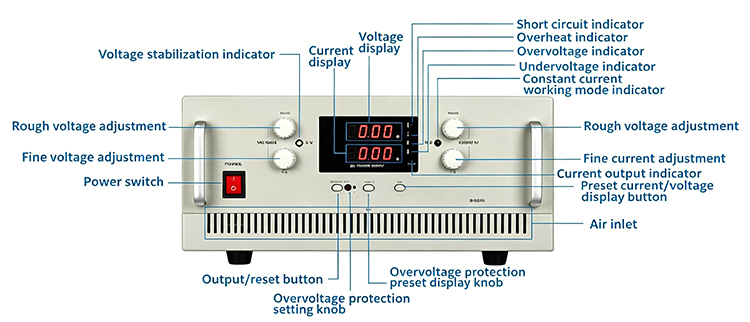

Front

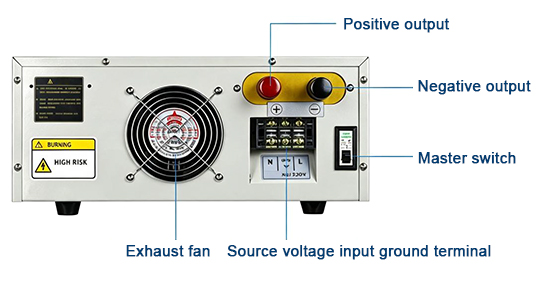

Back

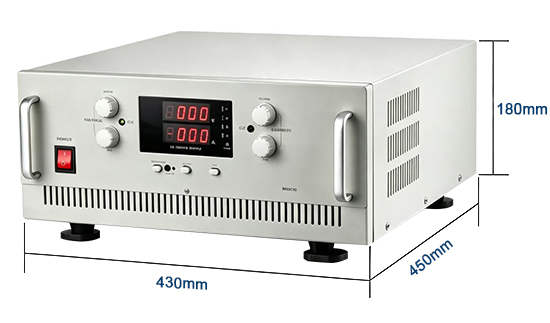

Size (unit: mm)

60A 100V variable DC power supply size

Tips: How Do I Set Voltage and Current on a 6000W Variable DC Power Supply?

Before connecting the load, check the equipment's rated voltage and maximum current requirements. Set the output voltage according to the load specification, then adjust the current limit based on its operating requirements. For this 6000W variable DC power supply, make sure the selected settings stay within the 100V maximum voltage and 60A maximum current ratings. For sensitive electronics, verify the output polarity and monitor the digital voltage and current readings during initial power-up.
