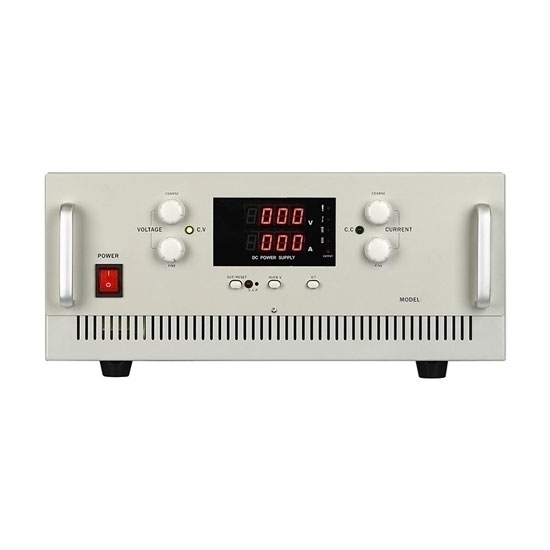

    80A 100V 8000W Variable DC Power Supply

    8000W variable DC power supply is designed with adjustable 0-100V output voltage and 0-80A output current, offering flexibility for diverse electronic components and projects. It is switching mode with 3 digit LED display, selectable 110V or 220V±10% AC input. Equipped with digital control features, this regulated DC power supply allows users to set desired voltage and amperage levels with accuracy.
    SKU: ATO-VDCPS10080K
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    80 amp 100 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential device for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.


    Model ATO-JK10080K
    Input Voltage 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-100V
    Output Current Range 0-80A
    Output Power 8000W
    Frequency 50Hz/60Hz
    Adjustable Mode Pulse Width Modulation (PWM) Type
    Transistor Connection Method Full Bridge
    Output Type Dual
    Display 3 digit
    Display Accuracy Output Voltage ±0.5%, Output Current ±0.5%
    Efficiency >86%
    Load Regulation (CV) Stable Voltage ≤0.5%, Constant Current ≤0.5%
    Line Regulation (CV) Stable Voltage ≤0.5%
    Ripple Voltage ≤1%
    Insulation Resistance Input-Output: ≥20MΩ
    Input-Chassis: ≥20MΩ
    Dielectric Strength Input-Output: AC1500V, 10mA, 1 minute
    Input-Chassis: AC1500V, 10mA, 1 minute
    Output-Chassis: AC1500V, 10mA, 1 minute
    Protection Over Load and Over Voltage Protection
    Current Imbalance ≤5% + 0.5A
    Operating Ambient -10℃ to + 45℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Overheat Protection Ambient Threshold 70℃ to 80℃
    Mean Time Between Failures ≥50000h
    Cooling Duct Internal Cooling Air Duct Forward and Exit
    Certification CE, RoSH
    Warranty 12 Months
    Size 430 (L) x 255 (W) x 155 (H) mm
    Weight 26kg

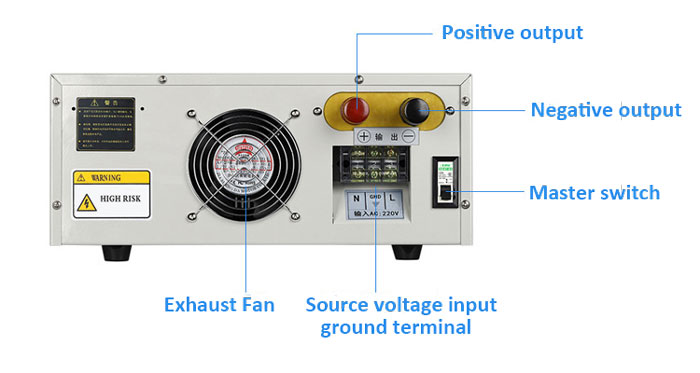

    Details of 80A 100V Adjustable DC Power Supply

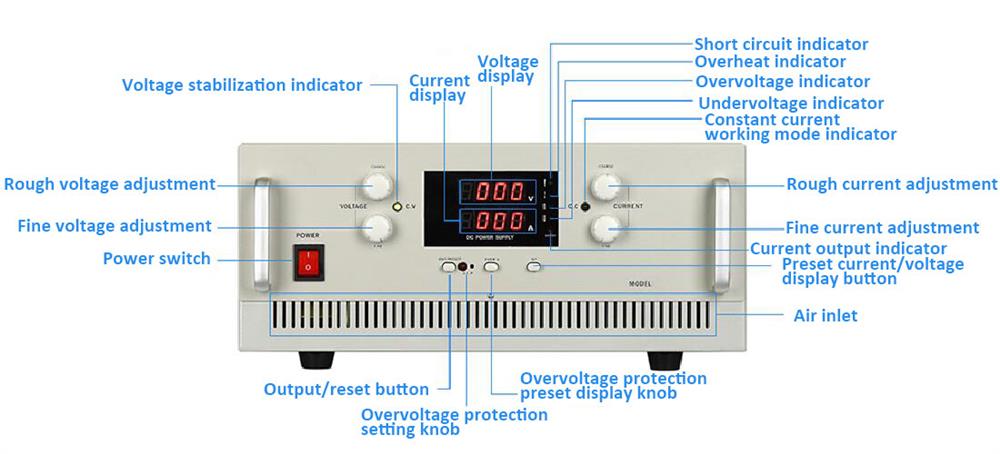

    Details of 80A 100V Variable Linear DC Power Supply

    Tips: Can a variable DC power supply be used in conjunction with other lab equipment?

    Yes, a variable DC power supply can be seamlessly integrated with various lab equipment. It provides a stable and adjustable voltage output, making it versatile for powering and testing electronic circuits, components, and devices. This flexibility is crucial when working with instruments like oscilloscopes, function generators, and multimeters, allowing precise control of the voltage levels for different experiments or measurements. The variable nature of the power supply enables users to simulate different operating conditions and troubleshoot electronic systems effectively. Additionally, its compatibility with other equipment in the lab enhances the overall functionality, supporting a wide range of experiments and research activities. In summary, a variable DC power supply is a valuable tool in any laboratory setting, complementing and enhancing the capabilities of other equipment for diverse electrical and electronic applications.
