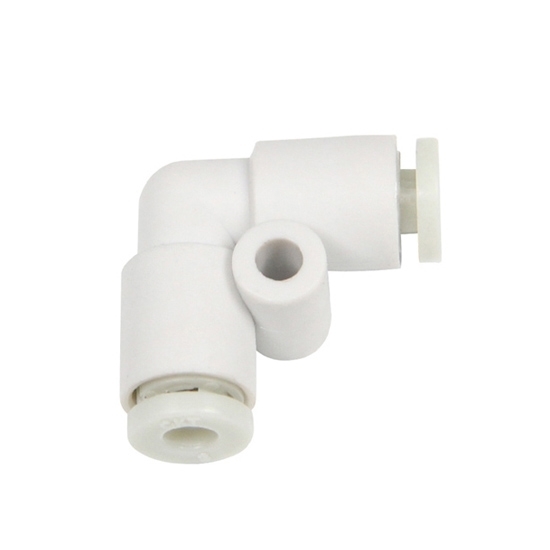

Air Hose Quick Connector, Intubation Type

5 out of 5 based on 3 reviews | Write a review

$3.27

Low price quick connector is an air hose quick connector that has 03/04/06 mm input cannula diameters. Air fitting quick connect is an intubation type, used for RVs, campers, faucets, lawn sprinklers, spigots, and faucets. High-quality plastic shell makes the air hose quick connector more smooth and wear-resistant.

Input Cannula Diameter *
Output Cannula/Thread Diameter (03) *
Output Cannula/Thread Diameter (04) *
Output Cannula/Thread Diameter (06) *
Output Cannula/Thread Diameter (23) *

SKU: ATO-QC-I02

This product has a minimum quantity of 50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Quick Connector Dimensions

Factory price quick connector does not require any tools to connect or disconnect, which can save time and money. It is an intubation type. 03/04/06 mm input cannula diameters for selection. Air Hose Quick Connector is perfect for various watering devices such as nozzle, sprayers, sprinklers, etc.

Specifications

Model	ATO-KJL
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Ø3	ATO-KJL03-00	1.6
Ø3.2	ATO-KJL23-00	1.7
Ø4	ATO-KJL04-00	2
Ø6	ATO-KJL06-00	3.1

Tips for using air quick connector

Do not use an air quick connector for purposes other than fluid.
Do not use for fluids other than the applicable fluid.
Do not exceed the maximum operating pressure when using.
Do not use outside the operating temperature range to prevent deformation of the seal material, which may easily lead to the formation of leaks.
Do not perform artificial beating, bending, or stretching to air quick connector.
Do not use in places where metal powder or sand and dust are mixed.
Attachment of debris may cause ineffective work or leakage.
Do not disassemble the quick connector.

Quick Connector Dimensions

Existing reviews of Air Hose Quick Connector, Intubation Type

So good we ordered more

They are excellent. I bought these to water my plants in the garden. With these quick connectors, I can easily connect and disconnect the hose.

From: Devenport | Date: 30/05/2022

Was this review helpful? Yes No (0/0)

Quick connector without leakage

I love quick connectors. I have been using quick connectors for many years now and I have applied them to my home irrigation system. They make life so easy and I'm sure I'll be ordering more soon. One thing to note is that you must be very careful not to over-tighten them.

From: Poythress | Date: 29/05/2022

Was this review helpful? Yes No (0/0)

A good quick connector for a good price

I use these quick connectors for my portable washing machine. I've been using it indoors for a few weeks and it doesn't leak. The premise is that you have to tighten it up.

From: Gladiola | Date: 28/05/2022

Was this review helpful? Yes No (0/0)
