Angular Displacement Sensor, 90°, 180°, 340°

This precision angular displacement sensor provides an excellent voltage feedback signal that directly reflects angular position. It is widely used in applications requiring angular displacement measurement, such as construction machinery, engineering surveying, and automated control systems.

Specification

Features

1. High Precision: Independent linearity up to ±0.25% (precision grade), repeatability ≤0.1°. This precision angular displacement sensor ensures accurate and consistent angle measurement.
2. Reliable Durability: Electrical life exceeding 10 million cycles, mechanical life up to 5 million cycles. Combined with IP54 protection rating, it delivers stable, long-lasting performance, significantly reducing maintenance and replacement costs for displacement sensors.
3. Stable Performance: Operating within -25°C to +85°C, with a resistance temperature drift of ±50 ppm/°C, this displacement sensor maintains consistent performance across extreme temperatures.
4. Multiple Angle Options: The angular displacement sensor offers theoretical electrical rotation angles of 90°, 180°, or 340° with a nominal resistance of 5 kΩ. Custom angles and resistance values are available upon request.

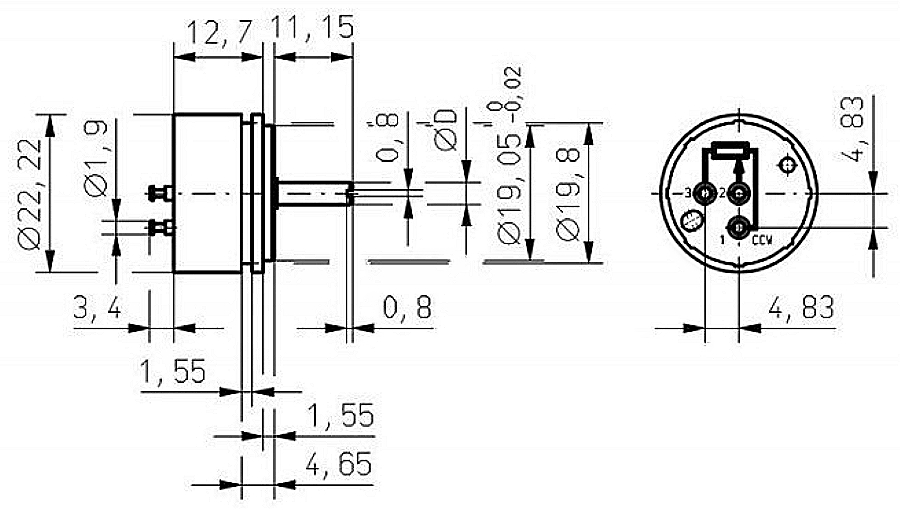

Dimension (unit: mm)

Tips: What is an angular displacement sensor?

An angular displacement sensor is a precision electronic component that converts the mechanical rotation angle of an object into a quantifiable electrical signal. It is a core device for achieving precise angular position measurement and control. Its core working principle lies in establishing a correspondence between "angle" and "electrical signal" through a specific physical mechanism. Unlike linear displacement sensors, angular displacement sensors measure the angle of rotational motion. It is crucial in automation, robotics, precision instruments, and other applications requiring precise control or monitoring of rotational motion.
