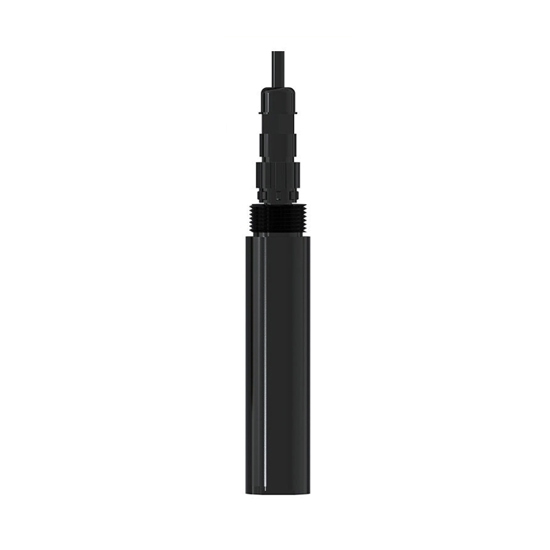

    Chlorophyll Sensor for Water Quality, 0~400ug/L

    $871.35
    The RS485 chlorophyll sensor for sale, measuring 0~400 µg/L (0~100 RFU), uses fluorescence for high-precision chlorophyll detection with a ±5% FS error at 25°C. It has a resolution of 0.1 µg/L and responds within 30 seconds. Operating between 0 and 40°C, it runs on DC 7~30V, consuming 0.4W. With an RS485 ModBus-RTU interface and IP68 waterproof rating. Applications for water quality research, surveys and testing of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton conditions.
    *
    SKU: ATO-WQS-RSCH
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The RS485 chlorophyll sensor, measuring 0~400 µg/L, uses fluorescence for accurate detection with ±5% FS error. It has 0.1 µg/L resolution, a 30-second response time, and runs on DC 7~30V. With an IP68 rating and RS485 ModBus-RTU interface, it's ideal for water quality monitoring in rivers, lakes, ponds, and aquaculture.

    Specification

    Model ATO-RS-CH-N01-2
    Measurement Range 0~400 μg/L; 0~100 RFU
    Measurement Error ±5% FS (25°C); ±0.5°C
    Resolution 0.1 μg/L; 0.1 RFU; Temperature: 0.1°C
    Response Time ≤30 sec
    Working Conditions 0~40°C
    Power Supply DC 7~30V
    Power Consumption 0.4W
    Communication Interface RS485; Standard ModBus-RTU protocol; Communication Baud Rate: Default 4800 (1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 configurable)
    Measurement Principle Fluorescence Method
    Waterproof Rating IP68
    Cable Length Default 5m
    Exterior Material Corrosion-resistant plastic
    Weight 0.15kg


    Feature

    • High Sensitivity and Stability: Delivers accurate, reliable measurements with strong resistance to external interference.
    • Long-lasting and Durable: Designed for a long lifespan with minimal wear, suitable for continuous use in challenging environments.
    • Quick Response Time: Enables real-time monitoring with rapid detection capabilities.
    • Self-cleaning Function: Equipped with an integrated self-cleaning brush to maintain accuracy and reduce maintenance.
    • Smart Temperature Compensation: Automatically adjusts for temperature changes, enhancing measurement precision.
    • IP68 Waterproof Rating: Withstands underwater use up to 20 meters, thanks to a corrosion-resistant exterior.
    • Easy Installation: Features 3/4 NPT threading for convenient and secure setup.

    Detail

    Chlorophyll sensor detail

    Size (Unit: mm)

    Chlorophyll sensor size

    Wiring Instructions

    Function Wire Color Description
    Power Brown Power Positive (10~30VDC)
    Communication Black Power Negative
    Yellow 485-A
    Blue 485-B


    Application

    Applications include research, surveys and testing of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton conditions.

    Chlorophyll sensor application

    Tips: How does the fluorescence detection method work in the RS485 Chlorophyll Sensor?

    The RS485 Chlorophyll Sensor utilizes fluorescence detection, a method that measures chlorophyll by detecting the light emitted by chlorophyll molecules when excited by a specific wavelength. Chlorophyll fluoresces under blue or UV light, and this emitted light is captured and quantified by the sensor. This non-invasive method provides high sensitivity, allowing the sensor to detect even low concentrations of chlorophyll in water. The fluorescence method is preferred for chlorophyll measurements as it avoids chemical reagents, minimizes environmental impact, and maintains accuracy over a range of conditions.
