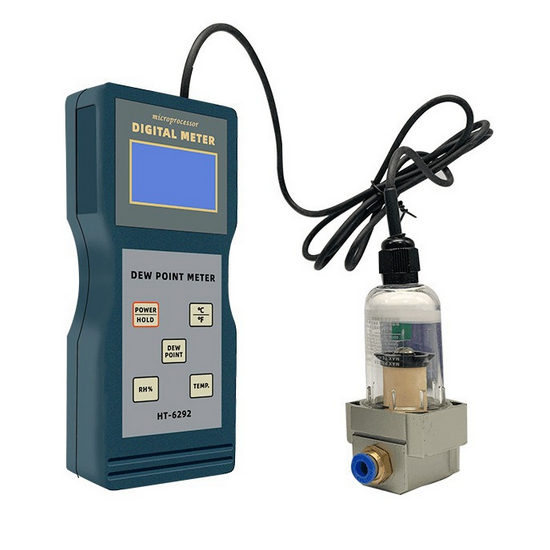

Hand Held Digital Dew Point Meter for Compressed Air

Write a review

$334.12

High-precision digital dew point meter with fast 0.4s response and wide measurement range (-40~40°C). This versatile dewpoint meter features an HD backlit LCD, auto memory for max/min/last values, and durable ABS housing. Compact, reliable, and ideal for compressed air systems, industrial humidity monitoring, and environmental dewpoint analysis.

SKU: ATO-DPM-HT6292

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Professional handheld dew point meter for accurate dew point, humidity, and temperature measurement. Fast-response dew point meter with pipe-type probe (up to 1MPa) and clear LCD display ensures precise results. Compact, battery-powered dewpoint analyzer ideal for workshops, warehouses, laboratories, and similar environments.

Specification

Model	ATO-HT-6292
Display	10mm LCD screen
Measurement Range	Dew point: -40~40°C, Humidity: 10~95%RH, Temperature: -10~60°C (14~140°F)
Resolution	Dew point: 0.1°C, Humidity: 0.1%RH, Temperature: 0.1°C/0.1°F
Accuracy	Dew point: ±1°C, Humidity: ±2.5%±1%RH, Temperature: ±0.5°C
Sensor Type	Humidity: Humidity-sensitive capacitance, Temperature: Thermocouple
Sampling Time	0.4s
Memory Function	Automatically stores the maximum, minimum, and last value
Timing Base	Quartz crystal
Power Supply	4 AA batteries
Power Consumption	Approx. 20mA
Dimensions	1366932 mm
Weight	300g (including batteries)

Features

HD Backlit Display: High-definition LCD provides clear and accurate dew point, humidity, and temperature readings for professional dew point meter applications.
Smart Data Memory: Automatically records maximum, minimum, and last values with °C/°F conversion, ensuring reliable data tracking for dewpoint analysis.
Fast & Wide-Range Detection: Advanced dewpoint meter with pipe-type probe delivers rapid, precise measurements up to 1MPa, ideal for compressed air systems and industrial monitoring.
Reliable Power Supply: Operates on 4×AA batteries or optional rechargeable pack for flexible and long-lasting field performance.
Durable ABS Housing: Rugged yet lightweight ABS construction with precision electronic components ensures stability, portability, and long service life for dew point testing.

Dimension

Dew point meter for compressed air dimension

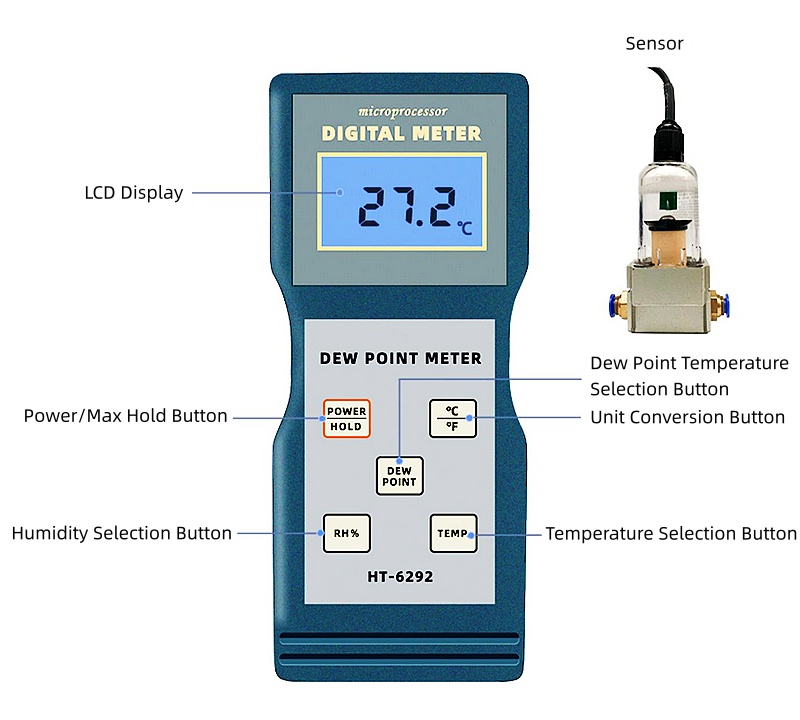

Details

Dew point meter for compressed air details

Application

Designed for versatile environments, the ATO handheld dew point meter delivers accurate air moisture monitoring in workshops, warehouses, offices, and laboratories. Its portable design and fast response make it ideal for daily inspection, equipment maintenance, and environmental testing.

Dew point meter for compressed air application

Tips: How to clean ATO dew point meter?

To maintain dew point meter accuracy and longevity, follow these steps: First, disconnect the gas supply and clean the sensor with dry, oil-free compressed air. Then, wipe the housing with a soft brush. For stubborn stains, use a cloth lightly dampened with anhydrous ethanol, ensuring no liquid contacts the sensor. Never immerse the sensor in liquid, scrape it with sharp objects, or touch it directly. Regular maintenance and installing a pre-filter will ensure reliable performance.
