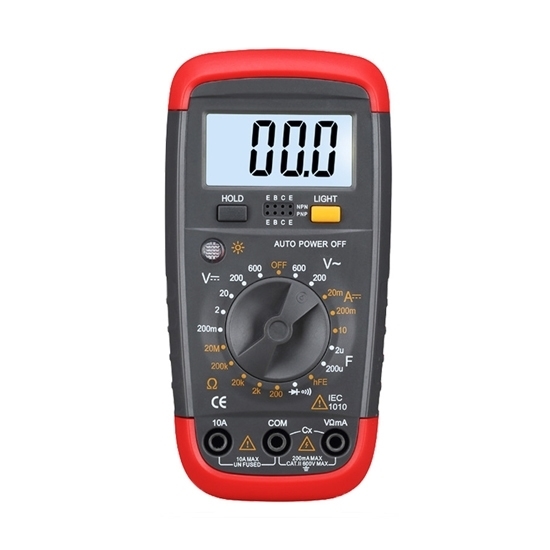

Electrical Multimeter for Voltage/Resistance/Capacitance

5 out of 5 based on 1 reviews | Write a review

$80.14

Portable manual range digital multimeter is a repair of ideal tool family, school, smelting, telecommunications, manufacturing, oil, defense, power, and chemical industry. It is a 10A electrical multimeter, 1999 max display, designed for AC/DC current, AC/DC voltage, resistance, and capacitance.

SKU: ATO-MLT-33

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Wholesale price 600V smart multimeter is available with manual range, 1999 max display, diode/triode testing data hold, low battery indication, overload protection and other functions. 10A digital multi meter is the best solution for measuring current, voltage, resistance, and capacitance.

Specifications

Model	ATO-MLT-UA33D
Maximum Display Value	1999
Operation Mode	Manual Range
Sample Frequency	60Hz
Input Impedance	10MΩ
Battery Type	6F22 9V Battery (Not Included)
Dimension	143x74x35mm
Weight	About 300g
DC Voltage	200mV/2V/20V/200V/600V
AC Voltage	200V/600V
DC Current	20mA/200mA/10A
Resistance	200Ω/2000Ω/20kΩ/200KΩ/20MΩ
Capacitance	2μF/200μF

Functions

Overload Protection	√	Auto Power Off	√
Diode Test	√	Back Light	√
HEF/Transistor	√	Backlight Function	√
Capacitance Test	√	On-off Buzzer	√
Low Battery Display	√	Data Hold	√

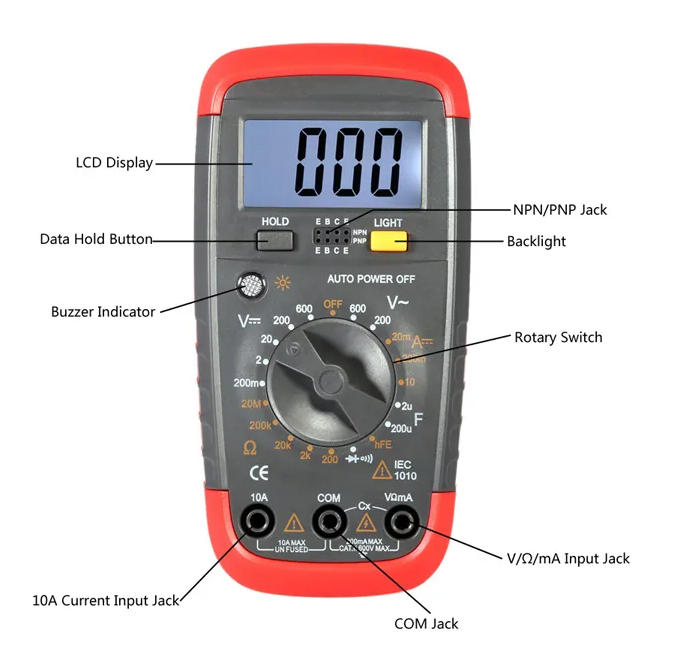

Details

Applications

Tips: What is a digital multimeter used for?

A digital multimeter (DMM) is a handheld device used to measure electrical properties such as voltage (potential difference), current, and resistance. It is a versatile tool that can be used in a variety of applications, including:

Testing continuity: Checking if an electrical circuit is complete or if there is a break in the circuit.
Measuring voltage: Testing the voltage level of batteries, power supplies, or wall outlets.
Measuring current: Testing the flow of current in an electrical circuit.
Measuring resistance: Checking the resistance of resistors or other components in a circuit.
Testing diodes: Checking the forward and reverse voltage of a diode.
Troubleshooting electrical circuits: Identifying problems in an electrical circuit by measuring various properties.

Digital multimeters are widely used in electronics, electrical engineering, and electrical repair, among other fields. They are popular for their accuracy, ease of use, and ability to display readings digitally.
