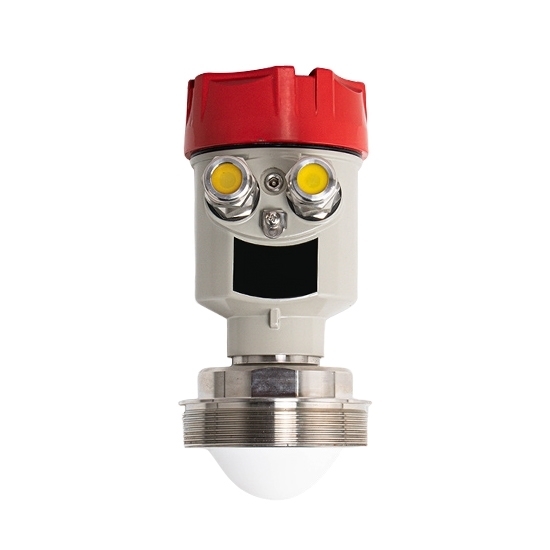

80GHz Explosion Proof Radar Level Transmitter, 0–60m

ATO radar level transmitter for sale online. 80GHz radar level transmitter with optional 10–60m measuring ranges, 24V DC or 220V AC power supply, 4–20mA/RS485/HART output, 3°/8°beam angles, and threaded or flange connections. Suitable for reliable level measurement in applications with steam, dust, agitation, and crystallization.

Specification

Feature

• High Accuracy Level Measurement: Explosion proof radar level transmitter provides precise non-contact level measurement with an accuracy of ±2 mm for liquids and ±5 mm for solids, ensuring reliable monitoring in demanding industrial applications.
• Wide Measuring Range: Offers measurement ranges from 0.08–10 m to 0.3–60 m, making it suitable for tanks, silos, reservoirs, and various liquid or bulk solid storage applications.
• Multiple Communication Outputs: 80GHz radar level transmitter supports 4–20 mA, RS485, MODBUS, and HART communication for seamless integration with PLCs, DCS, SCADA, and other industrial control systems.
• Advanced Radar: Uses 76–81 GHz FMCW radar technology with a narrow 3° or 8° beam angle to reduce interference from tank walls, internal structures, and dust, delivering stable and accurate measurements.
• IP67 Industrial Protection: ATO radar level transmitter is designed for harsh environments with an IP67-rated enclosure, operating temperatures up to 150°C, process pressures up to 2 MPa, and corrosion-resistant housing and antenna options.
• Easy Configuration: Configure and monitor the radar level meter using the 128×64 LCD display with four-button operation, PC software, or Bluetooth, simplifying installation, commissioning, and maintenance.

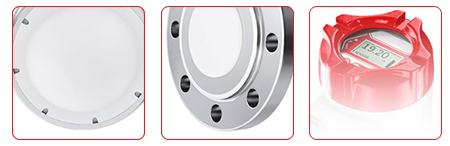

Detail

• Sealed Antenna: The sealed antenna protects the 80GHz radar level transmitter from dust and water, ensuring reliable level measurement in harsh industrial environments.
• Stainless Steel Flange: The stainless steel flange provides excellent corrosion resistance, secure installation, and long-term durability for industrial level measurement applications.
• LCD Display: The built-in LCD display enables easy configuration, real-time level monitoring, and convenient on-site operation, reducing commissioning and maintenance time.

Size (unit: mm)

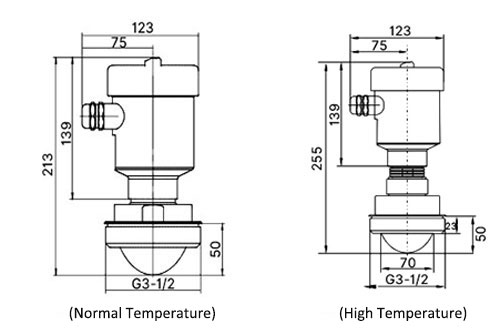

Thread Connection

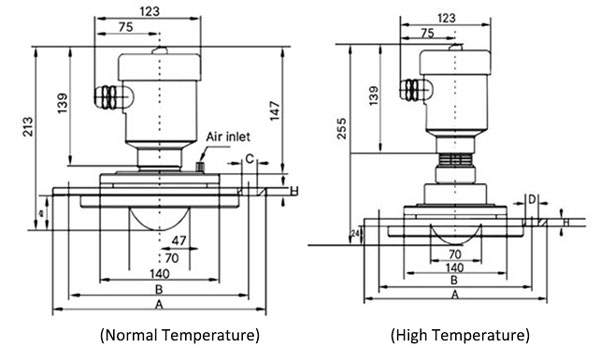

Universal Type

Note: For other sizes, please contact us.

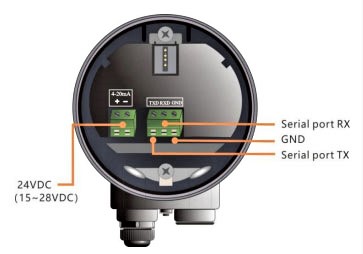

Wiring

Tips: Why choose an explosion-proof radar level transmitter?

An explosion proof radar level transmitter is designed for safe and reliable level measurement in hazardous environments containing flammable gases, vapors, or combustible dust. It combines advanced 80GHz radar technology with a rugged explosion-proof enclosure, making it ideal for demanding industrial applications while helping improve operational safety.
