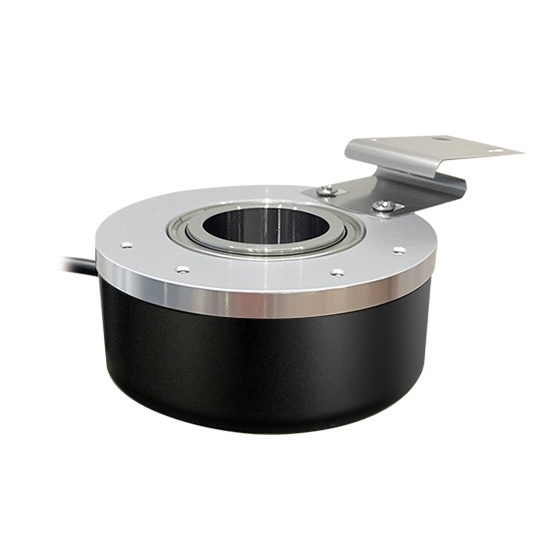

Incremental optical rotary encoders with 200 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.
Specification
Basics |
Model |
ATO-K8020G-200BM |
Weight |
100g |
Wiring |
Color |
Red |
Black |
Green |
White |
Yellow |
Brown |
Gray |
Orange |
Signal |
Vcc |
GND |
A |
B |
Z |
A- |
B- |
Z- |
Mechanical properties |
Maximum shaft speed (r/min) |
5000 |
Starting torque |
<0.03Nm (25℃) |
Maximum shaft load |
Radial load: 20N, axial load: 10N |
Shock resistance |
50G/11ms |
Anti-vibration |
10G (10~2000Hz) |
Rotational inertia |
4X10-8kgm2 |
Operating temperature |
-30~+85℃ (-22~+185℉) |
Storage temperature |
-35~+95℃ (-31~+203℉) |
Protection Level |
IP51 |
Electrical characteristics |
Output circuit |
Open-collector output |
Voltage output |
Push-pull output |
Line driver output |
Supply voltage Vcc |
DC 5V±0.2 |
DC 5~24V |
DC 5V±0.2 |
DC 5~24V |
DC 5V±0.2 |
DC 5~24V |
DC5V±0.2 |
DC 5~24V |
Current consumption |
≤60mA |
≤60mA |
≤60mA |
≤100mA |
Output high level |
≥3.5V |
≥Vcc-2.5V |
- |
- |
≥2.5V |
≥Vcc-2.5V |
Output low level |
≤0.5V |
≤0.5V |
- |
- |
≤0.5V |
≤1.0V |
Rise time Tr |
≤500ns |
≤1500ns |
- |
- |
≤200ns |
≤500ns |
Fall time Tf |
≤100ns |
≤300ns |
- |
- |
≤200ns |
≤200ns |
Maximum frequency response |
0~150kHz |
0~150kHz |
0~150kHz |
0~150kHz |
0~150kHz |
0~150kHz |
Model Selection
Shaft type |
Diameter of shell |
Diameter of shaft |
Connection type |
Cable length * |
Resolution |
Production identifier |
Z signal |
Z signal wavelength |
Output mode * |
Voltage * |
K: Hollow shaft |
80: 80mm |
20: 20mm |
G: Cable edge output |
1: 1m 2: 2m 3: 3m 4: 4m |
200: 200 ppr |
B |
M: Output 1 if receiving Z signal |
Default: 1T |
C: Open-collector NPN CP: Open-collector PNP T: Voltage ouput NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272 |
5: +5VDC 830: +8~30VDC |
Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.
Features
- The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
- The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
- Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
- Compact and lightweight, suitable for automation equipment with limited installation space.
- Modular design, easy installation, fast and efficient commissioning.
Dimension (unit: mm)

Application

Tips: How to use a multimeter to detect if the incremental encoder is broken?
Power on the incremental encoder and measure the output voltage of A / B / Z phase. If there is no reading, then the power supply is partially damaged or the main chip is damaged. If one phase can be reading, slowly turn the encoder shaft. A / B phase should be voltage high level and then voltage low level in turn. There is 1/2 chance. And for Z phase, there is one high level in every circle, the high level voltage is generally 2V lower than the input voltage, or even higher. So if a phase never appears high level, or the output level is very low, then the phase is broken.
If the phase is no problem after detecting, then look at the oscilloscope. First to see if the waveform has been distorted, second to see if there is a pulse missing, and then test it again.
