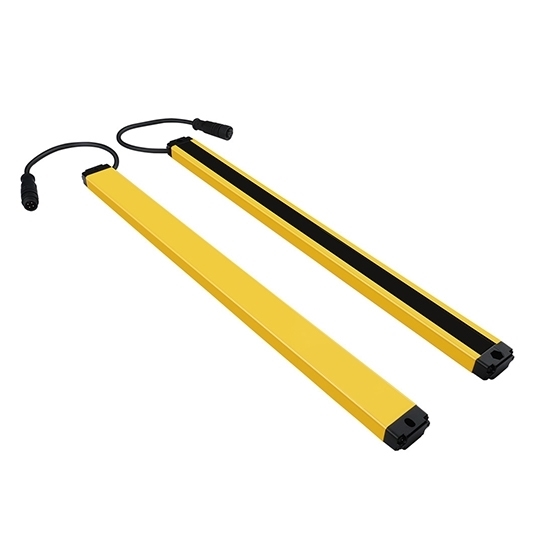

Light Curtain Machine Guarding, 5mm

The light curtain machine guarding with 5mm resolution is an ultra-slim safety grating designed for reliable personnel protection in hazardous machinery environments. Featuring rapid response, low power consumption, and strong anti-interference capability, safety light curtain offers multiple output configurations (NPN/PNP, NO/NC) and is suitable for narrow installation spaces. With a detection distance of up to 3 meters and a compact cross-section of 13mm x 28mm, it ensures efficient safety performance in applications such as pressing machines, automated painting systems, bending equipment, packaging machinery, and more.

Specification

Feature

• Ultra-Slim Design: The infrared light curtain features an exceptionally compact form factor, allowing for easy installation in narrow and confined spaces where traditional safety devices may not fit.
• High-Speed Response: This safety light curtain is engineered with a rapid response time, ensuring immediate machine stoppage upon intrusion detection to maximize operator protection.
• Robust Anti-Interference: Built to perform reliably in demanding industrial environments, the light guards for machinery offers strong resistance to ambient light and electrical noise interference.
• Flexible Output Configuration: The machine safety light curtains supports multiple output types (NPN and PNP, both normally open and normally closed), providing versatile integration options with various machine control systems.
• Energy Efficient: Designed for low power consumption, this safety light curtain sensor offers reliable, continuous safety protection while helping to reduce overall energy costs.

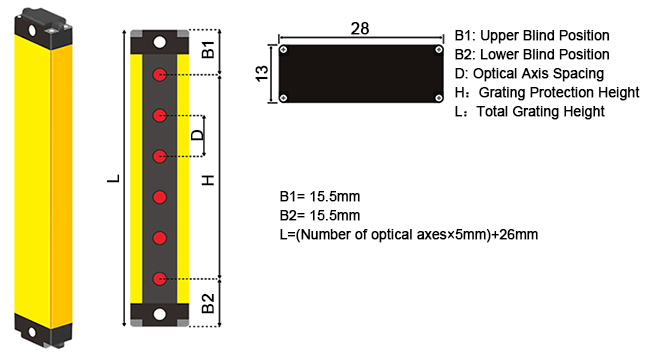

Dimension

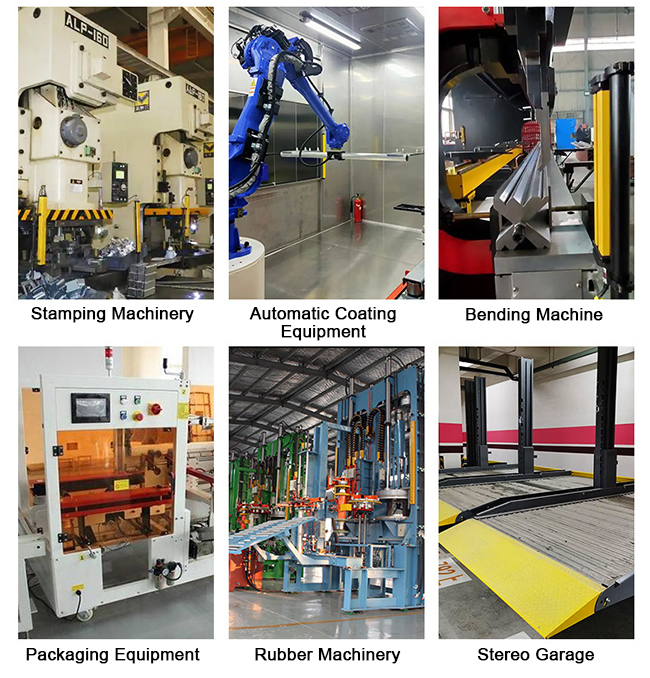

Application

Selection Tips for Light Curtain Machine Guarding

For optimal performance and correct application, please consider the following selection criteria:

1. Choose Beam Spacing (Resolution):

• 10mm Spacing: For finger protection or detection of objects larger than 10mm.
• 20mm Spacing: For hand/palm protection or detection of objects larger than 20mm.
• 40mm Spacing: For arm/elbow protection or detection of objects larger than 40mm.

2. Determine Protection Height:

Protection Height is the vertical distance between the highest and lowest light beams – the effective detection zone. It is calculated by the formula:
Protection Height = Beam Spacing × (Number of Beams – 1).

3. Select Output Signal:
Choose the transistor output signal that matches your control system's requirements:

• NC (NPN Normally Closed): Outputs 0V when the beam is clear; no output when blocked.
• NO (NPN Normally Open): No output when clear; outputs 0V when blocked.
• PC (PNP Normally Closed): Outputs 24V when the beam is clear; no output when blocked.
• PO (PNP Normally Open): No output when clear; outputs 24V when blocked.

4. Choose Mounting Style:

The ultra-slim design allows for side mounting on machinery.
