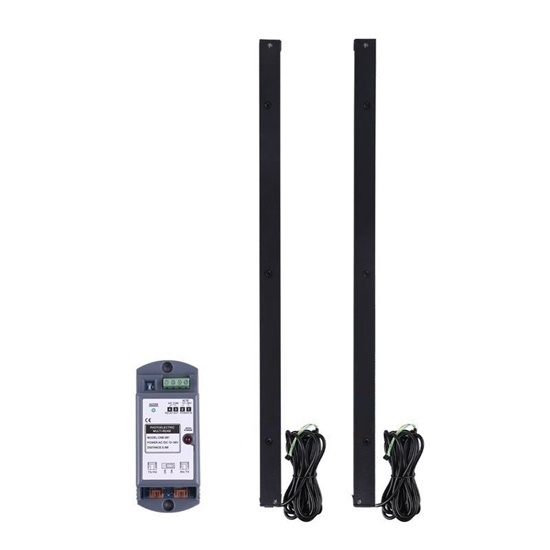

Infrared Door Light Curtain, Automatic Sliding, 0.5m/1m/1.5m/2m

This infrared door light curtain is a high-performance safety device used with automatic sliding doors to detect obstacles and prevent clamping incidents. It ensures safe operation in various automated door systems with stable detection, easy installation, and intelligent functions.

Specification

Feature

• Intelligent Control of the Light Curtain: Microcomputer control technology ensures high system integration and strong stability for reliable operation.
• Superior Optical Performance: The safety light curtain sensor features specific optical processing, providing excellent resistance to sunlight interference for consistent detection.
• Plug-and-Play Convenience: This safety light curtain adopts a socket-style plug-in connection, making installation quicker and more straightforward.
• Flexible Functionality: The light curtain includes configurable functions such as an optional timeout reminder and anti-redundancy protection, allowing customization based on application needs.
• Robust Power Design: With a wide voltage input (12-36V AC/DC), the sensor light curtain ensures stable performance under varying power conditions.
• Precision Sensing: This infrared curtain sensor offers a minimal sensing distance of 0.1 meters for precise detection.
• Adaptive Filtering: The intelligent blanking function allows the infrared door light curtain to filter out self-interference during door movement, such as when a door light curtain descends.

Dimension

Application

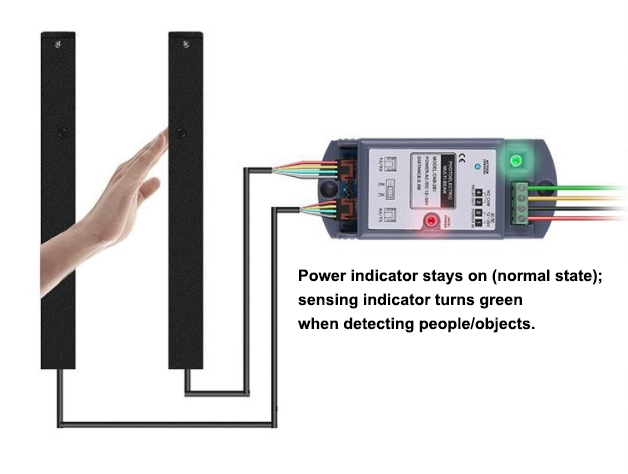

The power indicator light stays on continuously under normal conditions.

The power indicator light stays on continuously under normal conditions; the sensing indicator light turns green when a person or object is detected.

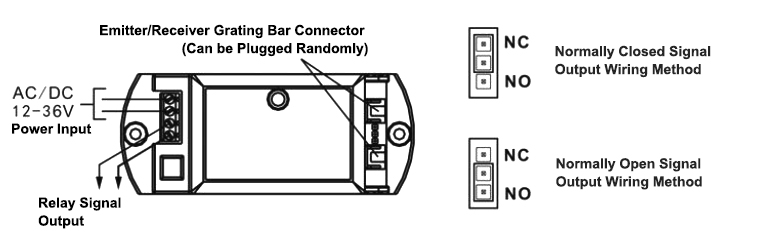

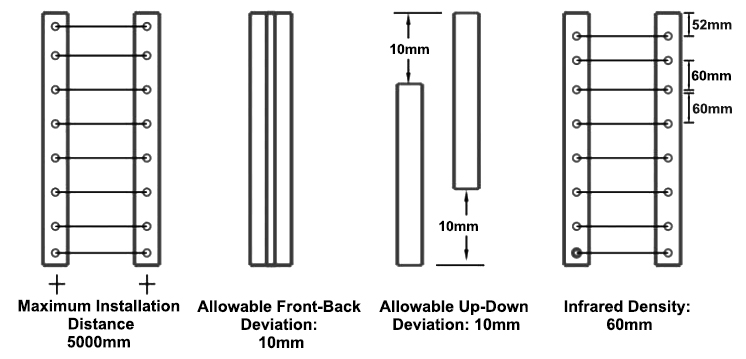

Installation Instructions

4 Tips for Infrared Door Light Curtain

1. Environmental Considerations: Avoid installing the light curtain guarding in locations with direct, extremely strong, and fluctuating light sources that are not sunlight, as they may challenge the interference resistance despite its high specification.
2. Alignment Check: During installation and periodically thereafter, verify the alignment of the transmitter and receiver units. Even slight misalignment beyond tolerance can cause operational failure.
3. Power Supply Stability: For long-term reliability, ensure the power supply is stable and within the recommended voltage range. Voltage spikes or drops outside this range can affect performance.
4. Model Selection: Safety light curtain sensor selecting the 0.5m, 1m, 1.5m, or 2m length model, ensure the protective height of the light curtain adequately covers the hazardous area of your specific door application.
