    Megger Insulation Tester, 500V/1000V/2500V/5000V

    5 out of 5 based on 2 reviews | Write a review
    Accurate and reliable insulation resistance tester has five test voltages of 500V, 1000V, 2500V, and 5kV, measuring resistance range up to 1000G ohm. Large backlit LCD display, easy to read. Battery-powered megger is portable, lightweight and affordable, best for for electrical equipment diagnostic testing and maintenance.
    SKU: ATO-IRT-UT513
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Digital Megohmmeter or Megger insulation tester has selectable test voltages of 500V, 1kV, 2.5kV and 5kV with the capabilities of testing insulation resistance up to 1000 MΩ, ideal for testing high voltage equipment such as transformers, genera-tors, high voltage motors, power capacitors, power cables, arresters and so on. The megger is an ideal tool for electric maintenance, testing and inspection.


    Model ATO-IRT-UT513
    Insulation Resistance (Ω) Test voltage/accuracy 500V/1000V/2500V/5000V 0% ~ 20%
    Measurement range/accuracy 500V 1 MΩ ~ 20 GΩ ±(3%+5)
    1000V 2 MΩ ~ 40 GΩ ±(5%+5)
    2500V 5 MΩ ~ 100 GΩ ±(3%+5)
    5000V 10 MΩ ~ 1000 GΩ ±(3%+5)
    Short-circuit current <1.8mA
    DC Voltage (V) Test range/accuracy 600V ±(2%+5)
    AC Voltage (V) Test range/accuracy 600V ±(2%+5)
    Features Display 9999 counts
    Auto ranging Yes
    Auto power off Yes
    Low battery indication Yes
    Data storage 18
    Comparison measurement Yes
    PI Yes
    DAR Yes
    USB port Yes
    LCD backlight Yes
    Analog bar graph 30
    Over-range warning Yes
    High voltage indication Yes
    Timing measurement (Around 15 min) Yes
    General Power supply 1.5V battery (LR14) x 8
    Display size 123mm x 58mm
    Operating temperature 0℃ ~ 40℃ (32℉ ~ 104℉)
    Storage Temperature -20℃ ~ 60℃ (-4℉ ~ 140℉)
    Relative Humidity ≤85%RH @ 0℃ ~ 40℃ below;
    ≤90%RH @ -20℃ ~ 60℃
    Product weight 2kg
    Product size 202mm x 155mm x 94mm
    Standard accessories * 2*single plug test lead with alligator clip (black and green), 1*double plug test lead with alligator clip (red), batteries, USB cabel, PC software CD

    Note: * Batteries are Not Included for air shippment.

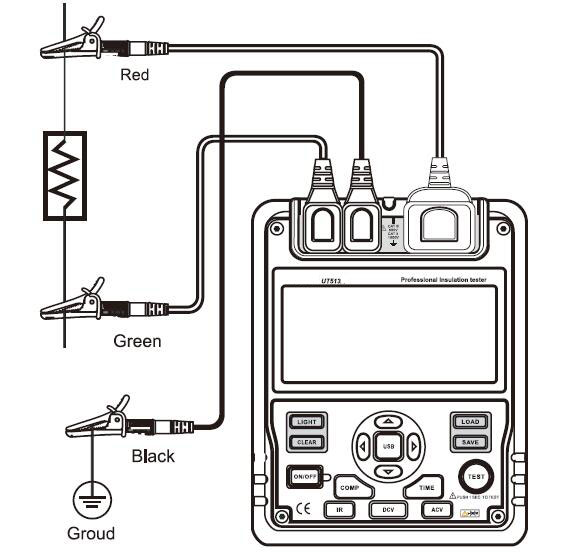

    Insulation Resistance Test Wiring Diagram

    5000v Megger Insulation Resistance Test WiringDetails

    Megger Insulation Tester Details

    Tips: What should you prepare before using an insulation resistance tester?

    When Megger is working, it generates high voltage, and the measuring object is electrical equipment, so it must be used correctly, otherwise it will cause personal or equipment accidents. Before use, the following preparations should be made.

    • Before the insulation resistance measurement, the power supply of the equipment under test must be cut off, and the equipment is discharged by short-circuiting to the ground. It is never allowed that the equipment to be charged is taken for measurement. Nevertheless, the safety is in the first place.
    • For devices that may be induced by high voltage, the possibility must be eliminated before measurement can be made.
    • The surface of the measured equipment should be clean to reduce the contact resistance and ensure the accuracy of the measurement results.
    • Before the insulation resistance test, check whether the Megohmmeter is in normal working state, that is, mainly checking its "0" and "infinity" points. That is, shake the handle to make the motor reach the rated speed, the meter should be in the "0" position in the short circuit, and in the "infinity" position in the open circuit.
    • The insulation resistance tester should be placed in a stable, firm place, and away from the large external current conductor and external magnetic field.

    After the above preparations are made, the resistance measurement can be carried out. During the testing, the correct wiring of the Megger insulation tester should be paid attention to, otherwise unnecessary errors or even errors will be caused.
